580 RSW (601100022) - Husqvarna Walk-Behind Mower (2000-11) Swivel Wheels And Brackets Parts Diagram

Walk-Behind Mower

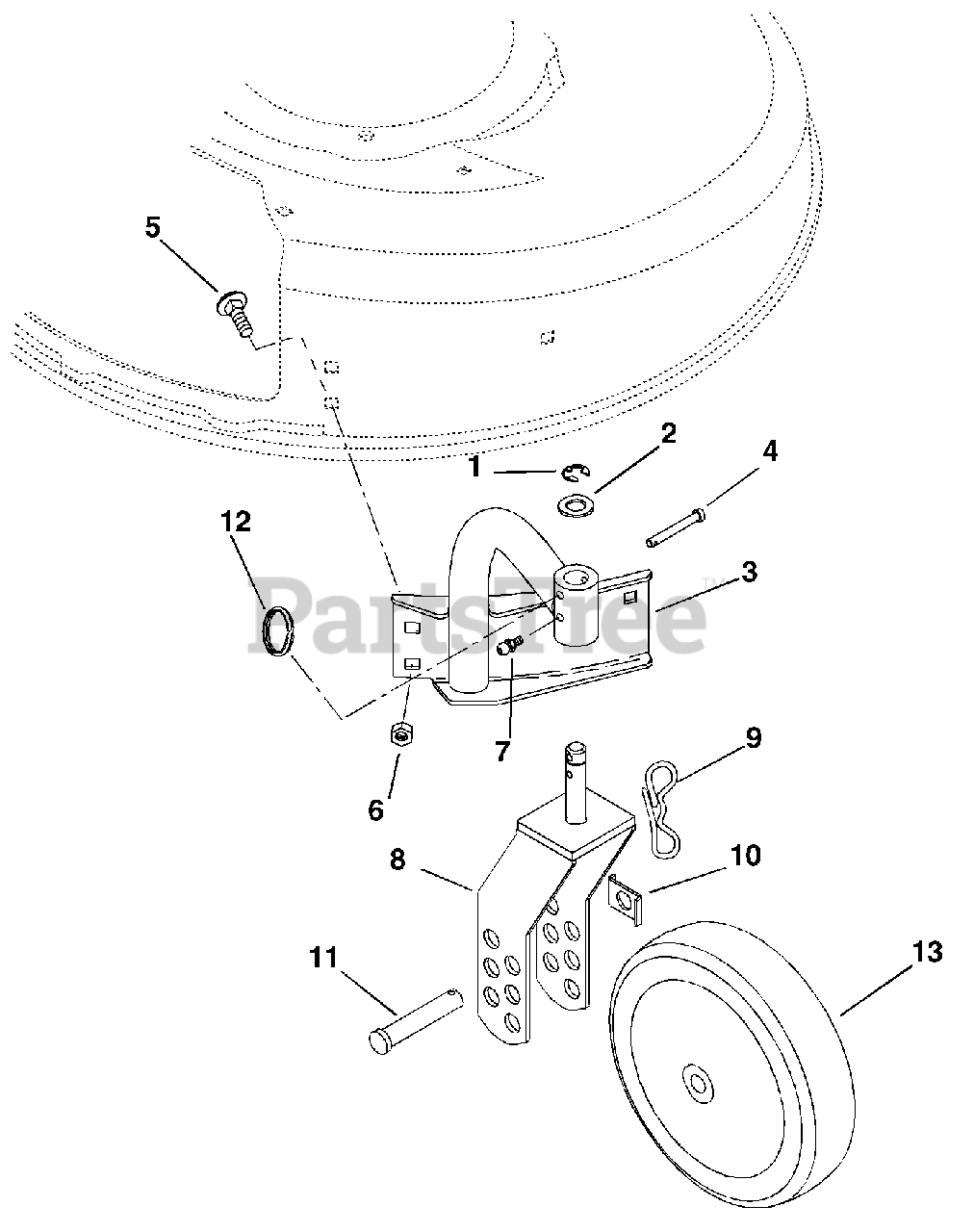

Swivel Wheels And Brackets Parts Diagram

  • Title

1

Husqvarna 606000151

Ring-Retaining-External .625 x .042

$

$

Not available

2

Husqvarna 606000153

Washer-Flat-Steels .630 x 1.005 x .062

$

$

Not available

3

Husqvarna 606000147

Mount with Bushing, Right Arm

$

$

Not available

3

Husqvarna 606000148

Mount with Bushing, Left Arm

$

$

Not available

4

Husqvarna 606000156

Pin-Clevis .25 x 1.75

$

$

Not available

5

Husqvarna 606000082

Bolt-Round Head Square Neck .31-18 x .50 Grade 5

$

$

Not available

6

Husqvarna 606000136

Nut-Hex .312-18

$

$

Not available

7

Husqvarna 606000157

Fitting-Lube .25-28 x .256

$

$

Not available

8

Husqvarna 606000146

Wheel Yoke Weldment

$

$

Not available

9

Husqvarna 606000155

Pin, Bowtie Cotter

$

$

Not available

10

Husqvarna 606000143

Axle Tab

$

$

Not available

11

Husqvarna 606000144

Pin-Clevis .494 x 2.62

$

$

Not available

12

Husqvarna 606000145

Ring-Kickout

$

$

Not available

13

Husqvarna 606000280

Wheel-7.50 O.D. Steel Swivel

$

$

Not available
