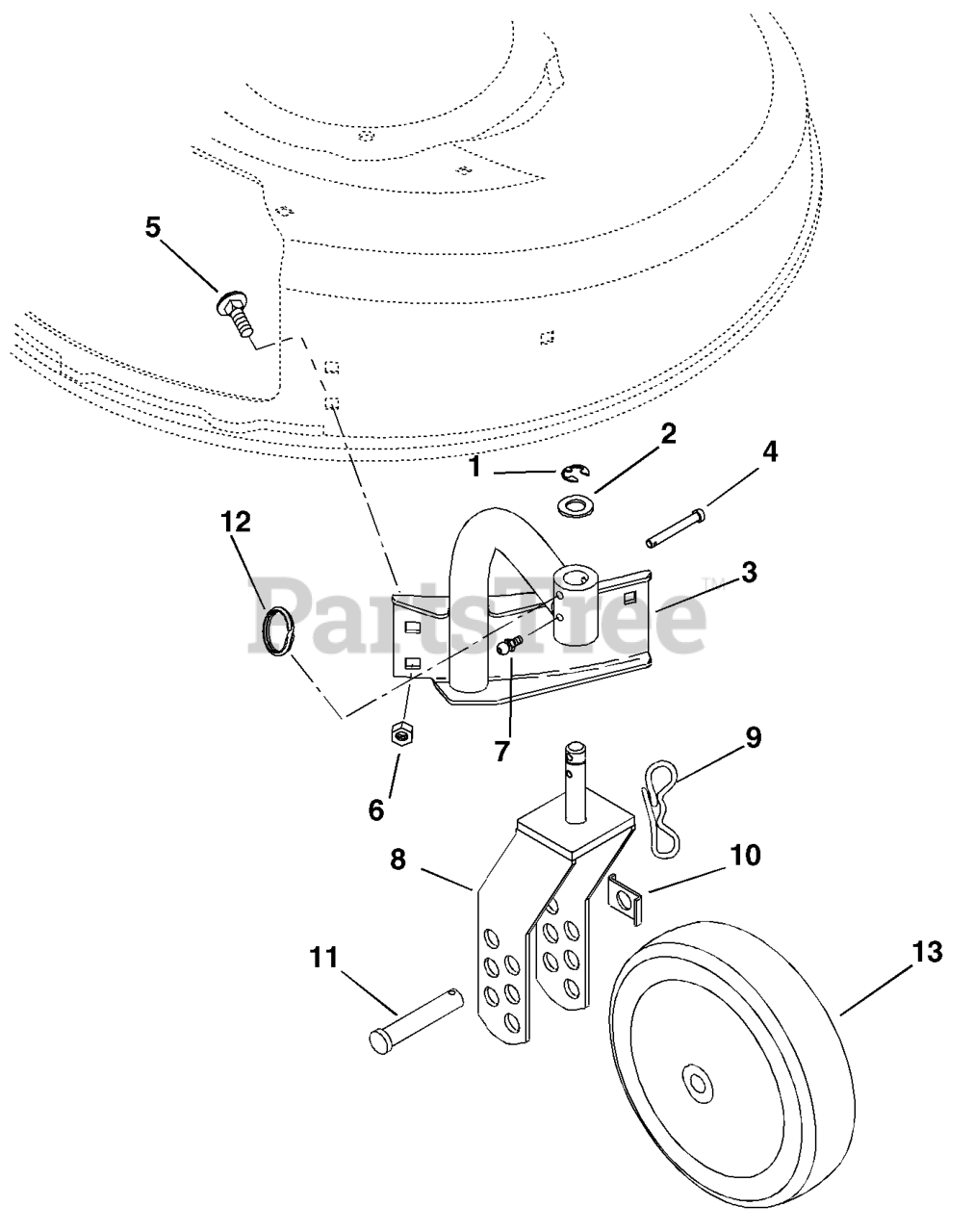

580 RSW (601100022) - Husqvarna Walk-Behind Mower (2000-11) Swivel Wheels And Brackets Parts Diagram

Walk-Behind Mower

Swivel Wheels And Brackets Parts Diagram

  • Title

1

Husqvarna 606000151

RING-RTNG-EXTERNAL .625X.042

$

$

Not available

2

Husqvarna 606000153

Washer-Flat-Steels .630 x 1.005 x .062

$

$

Not available

3

Husqvarna 606000147

RIGHT MOUNT ARM WELDMENT

$

$

Not available

3

Husqvarna 606000148

Mount with Bushing, Left Arm

$

$

Not available

4

Husqvarna 606000156

PIN CLEVIS .25 X 1.75

$

$

Not available

5

Husqvarna 606000082

Bolt-Round Head Square Neck .31-18 x .50 Grade 5

$

$

Not available

6

Husqvarna 606000136

Nut-Hex .312-18

$

$

Not available

7

Husqvarna 606000157

Fitting-Lube .25-28 x .256

$

$

Not available

8

Husqvarna 606000146

WHEEL YOKE WELDMENT

$

$

Not available

9

Husqvarna 606000155

PIN-HAIR-EXT.

$

$

Not available

10

Husqvarna 606000143

AXLE TAB

$

$

Not available

11

Husqvarna 606000144

CLEVIS PIN

$

$

Not available

12

Husqvarna 606000145

KICKOUT RING

$

$

Not available

13

Husqvarna 606000280

WHEEL/7" X 1.75 EQUAL OFFSET

$

$

Not available
