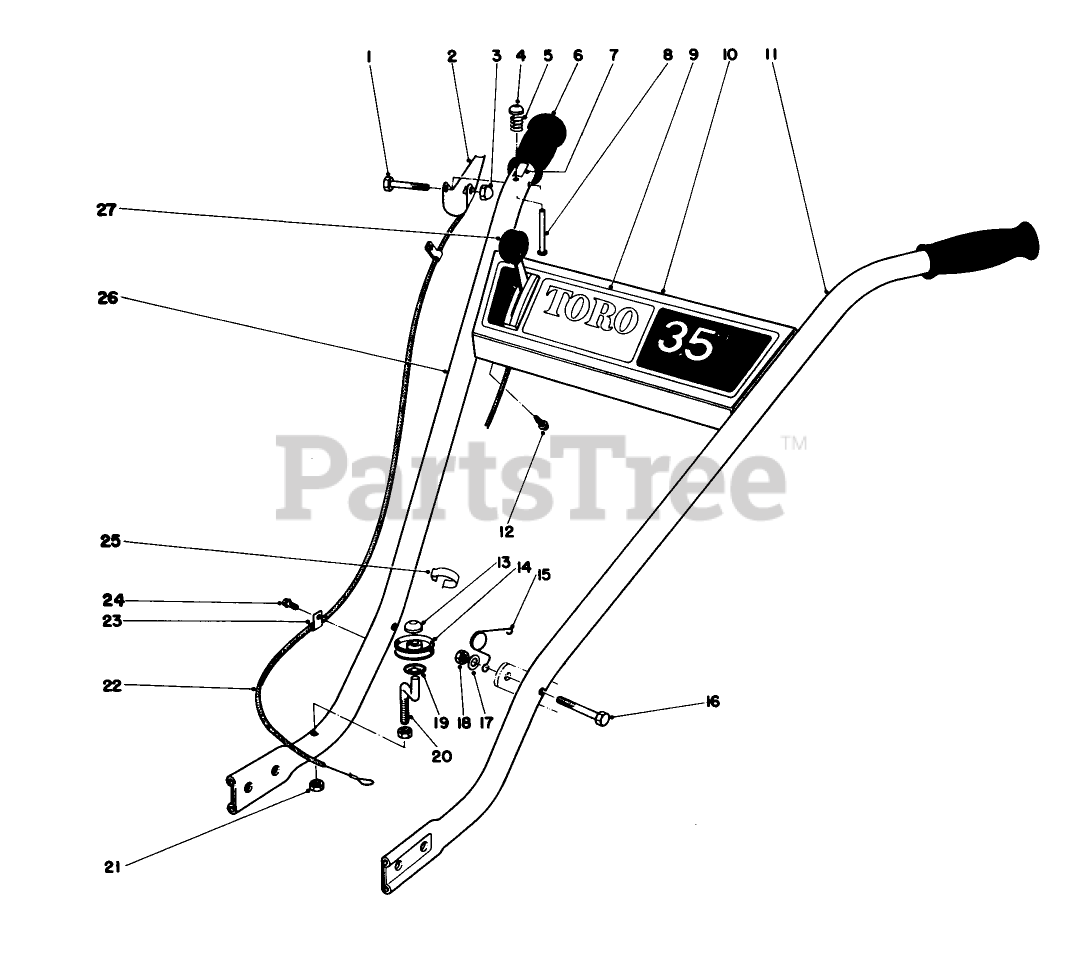

58007 - Toro 20" Tiller (SN: 000000001 - 000999999) (1980) Handle Assembly Parts Diagram

20" Tiller

Handle Assembly Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 26-3630

DISCONTINUED

$

$

Not available

3

Toro 32111-7

NUT-CAP

$8.49

$

In Stock, only 2 left!

0

4

Toro 32111-9

DISCONTINUED

$

$

Not available

5

Toro 5-4723

COMPRESSION SPRING

$15.99

$

Usually ships in 3-6 days

0

6

Toro 235-20

See Supercession: 235-21
(Superseded to 235-21)

$

$

Not available

7

Toro 26-3710

DISCONTINUED

$

$

Not available

8

Toro 26-3640

DISCONTINUED

$

$

Not available

9

Toro 26-3310

Decal-Escutcheon

$

$

Currently unavailable

10

Toro 17-9300

DISCONTINUED

$

$

Not available

11

Toro 26-3380

DISCONTINUED

$

$

Not available

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

13

Toro 3290-396

DISCONTINUED

$

$

Not available

14

Toro 26-3490

DISCONTINUED

$

$

Not available

15

Toro 26-3690

DISCONTINUED

$

$

Not available

16

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

18

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

19

Toro 3290-395

DISCONTINUED

$

$

Not available

20

Toro 26-3470

DISCONTINUED

$

$

Not available

21

Toro 32128-28

NUT-HHF

$0.99

$

Usually ships in 3-6 days

0

22

Toro 26-3450

DISCONTINUED

$

$

Not available

23

Toro 2412-21

DISCONTINUED

$

$

Not available

24

Toro 32140-29

10 X 1/2 SCREW

$

$

Currently unavailable

25

Toro 26-5890

DISCONTINUED

$

$

Not available

26

Toro 26-3440

DISCONTINUED

$

$

Not available

27

Toro 26-3390

See Supercession: 46-6010
(Superseded to 46-6010)

$

$

Not available
