58007 - Toro 20" Tiller (SN: 002000001 - 002999999) (1982) Engine Tecumseh Model H35-45481n Parts Diagram

20" Tiller

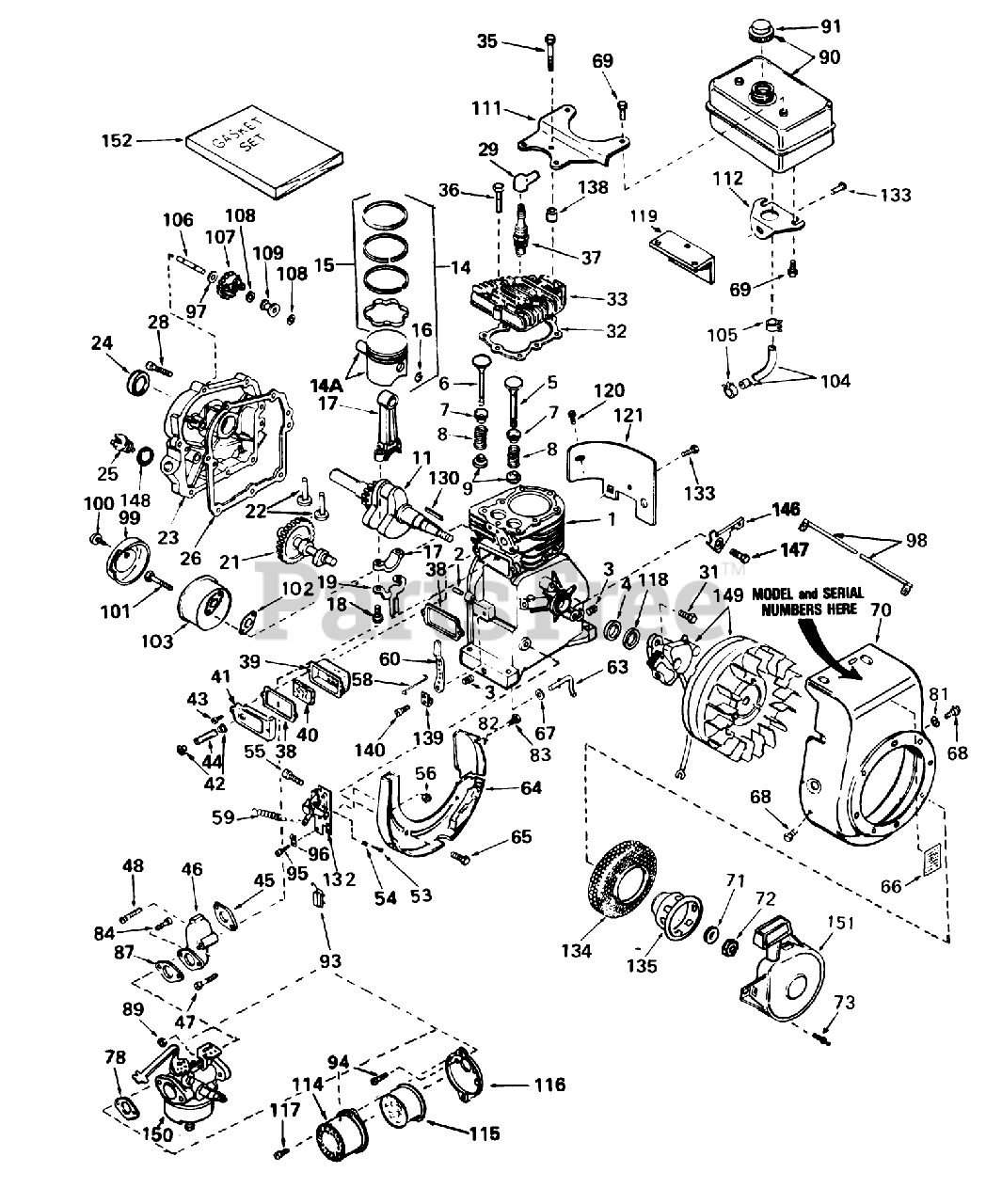

Engine Tecumseh Model H35-45481n Parts Diagram

  • Title

1

Toro 34708

63580 GIL HANDLE BA

$3.23

$

Usually ships in 3-6 days

0

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 29314A

Valve, Intake (Incl. Ref. #38, 39 40) (Std.)

$

$

Currently unavailable

5

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 34709

481-1253 SENATOR RO

$3.23

$

Usually ships in 3-6 days

0

14

Toro 34514

Piston-Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34515

Piston-Pin Ring Assy. (.010 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34516

Piston-Pin Ring Assy. (.020 oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14A

Toro 32538B

Piston Pin Assy. (Std)(Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 32548B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 32549B

Piston Pin Assy. (.020 oversize) (Incl. Ref. #16)

$

$

Currently unavailable

15

Toro 28986

Piston Ring Set Std.

$

$

Currently unavailable

15

Toro 28987

Piston Ring Set .010 O.S.

$

$

Currently unavailable

15

Toro 28988

Piston Ring Set .020 O.S.

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 30963B

Rod Assy., Connecting (Incl. Ref. #17)

$

$

Currently unavailable

18

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

19

Toro 28594

53020/22 GIL.HYDRO

$3.23

$

Usually ships in 3-6 days

0

21

Toro 33149

Camshaft (Compression Release

$

$

Currently unavailable

22

Toro 27241

Lifter-Valve

$

$

Currently unavailable

23

Toro 34773

Cover, Cylinder (Incl. Ref. #24, 25, 106 148)

$

$

Not available

24

Toro 26208

Seal Oil

$

$

Currently unavailable

25

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

26

Toro 27677

Gasket-Cylinder Cover

Note: Included In Gasket Set Num 33233

$

$

Currently unavailable

28

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

29

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 29953B

Gasket-Cylinder Head

Note: Included In Gasket Set Num 33233

$

$

Currently unavailable

33

Toro 30579

CYLINDER HEAD

$

$

Currently unavailable

35

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

36

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

37

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

37

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

38

Toro 27234

Gasket-Breather

Note: Included In Gasket Set Num 33233

$

$

Currently unavailable

39

Toro 27666

Body-Breather
(Superseded to 704563)

$179.99

$

Usually ships in 3-6 days

0

40

Toro 31410

Element-Breather

$

$

Currently unavailable

41

Toro 34146

Cover-Breather

$

$

Currently unavailable

42

Toro 32446

GROMMET

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 32447

Breather Tube

$

$

Currently unavailable

45

Toro 26754

Gasket-Intake

Note: Included In Gasket Set Num 33233

$

$

Currently unavailable

46

Toro 28416

Pipe, Intake

$

$

Currently unavailable

47

Toro 650664

Screw (1/4-20 x 1-19/32)

$

$

Currently unavailable

48

Toro 30646

Screw

$

$

Currently unavailable

53

Toro 650549

Screw

$

$

Currently unavailable

54

Toro 31342

Spring-Compression

$

$

Currently unavailable

55

Toro t650139

Screw, Fil. Hd.

$

$

Currently unavailable

56

Toro t30322

Nut Lockwasher Assy.

$

$

Currently unavailable

58

Toro 31858

Jet-Main

$

$

Currently unavailable

59

Toro 31426

Spring-Extension

$

$

Currently unavailable

60

Toro 31510

Lever-Governor

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 33342

Baffle-Blower Housing
(Superseded to 704713)

$

$

Not available

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

66

Toro 34374

Decal, Instruction

$

$

Currently unavailable

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

68

Toro 29212

Screw

$

$

Currently unavailable

69

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

70

Toro 33663B

Housing, Blower

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order four (4) nuts illustrated to attach replacement starter to replacement blower ho

$

$

Currently unavailable

71

Toro 650815

Washer-Belleville

$

$

Currently unavailable

72

Toro 650816

Nut-Flywheel

$

$

Currently unavailable

73

Rivet, Pop (Can be purchased locally)

$

$

Not available

78

Toro 27272

Gasket

Note: Included In Gasket Set Num 33233

$

$

Currently unavailable

81

Toro 650168

Washer

$

$

Currently unavailable

82

Toro 33341

Baffle-Extension

$

$

Currently unavailable

83

Toro 650701

Screw-Hex Washer Hd.

$

$

Currently unavailable

84

Toro 6202

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

87

Toro 26756

Gasket

Note: Included In Gasket Set Num 33233

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

90

Toro 34711

481-1261 SENATOR TI

$3.23

$

Usually ships in 3-6 days

0

91

Toro 32387A

Cap, Fuel

$

$

Currently unavailable

93

Toro 610973

Terminal

$

$

Currently unavailable

94

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

95

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

96

Toro 27793

Conduit

$

$

Currently unavailable

97

Toro 30590A

Washer-Flat

$

$

Currently unavailable

98

Toro 34231

Wire-Ground

$

$

Currently unavailable

99

Toro 30997

Cover-Muffler

$

$

Currently unavailable

100

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

101

Toro 650493

Screw

$

$

Currently unavailable

102

Toro 30081

Gasket Exhaust

Note: Included In Gasket Set Num 33233

$

$

Currently unavailable

103

Toro 30996

Muffler

$

$

Currently unavailable

104

Toro 30705

Line-Fuel

$

$

Currently unavailable

105

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

111

Toro 28371B

Plate-Fuel Tank

$

$

Currently unavailable

112

Toro 34182

Bracket-Fuel Tank

$

$

Currently unavailable

114

Toro 31715

Body-Air Cleaner
(Superseded to 742361)

$

$

Not available

115

Toro 31700

AIRCLEANER
(Superseded to 704629)

$

$

Not available

116

Toro 31708

BRACKET, AIRCLEANER

$

$

Currently unavailable

117

Toro 650152

Screw

$

$

Currently unavailable

118

Toro 33876

Gasket Stator

$

$

Currently unavailable

119

Toro 33344

Baffle-Heat

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

130

Toro 610961

Key-Flywheel

$

$

Currently unavailable

132

Toro 33879A

Bracket Assy., Control (Incl. Ref. #149 thru 152 154)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly indudes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

133

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

134

Toro 33668

Screen-Starter

$

$

Currently unavailable

135

Toro 34694

Cup-Starter

$

$

Currently unavailable

138

Toro 28212

pacer

$

$

Currently unavailable

139

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

140

Toro 650548

Screw

$

$

Currently unavailable

146

Toro 34212

Bracket-Hold Down

$

$

Currently unavailable

147

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

148

Toro 29673

Gasket

Note: Included In Gasket Set Num 33233

$

$

Currently unavailable

149

Toro 611025

Magneto (The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

150

Toro 631921

Carburetor (Incl. Ref. #87)

$

$

Currently unavailable

151

Toro 590420

Starter, Rewind

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order four (4) nuts illustrated to attach replacement starter to replacement blower ho

$

$

Currently unavailable

152

Toro 33233

Gasket Set (Incl. items marked*

$

$

Currently unavailable
