58007 - Toro 20" Tiller (SN: 007000001 - 007999999) (1977) Engine Tecumseh Model H35-45481m Parts Diagram

20" Tiller

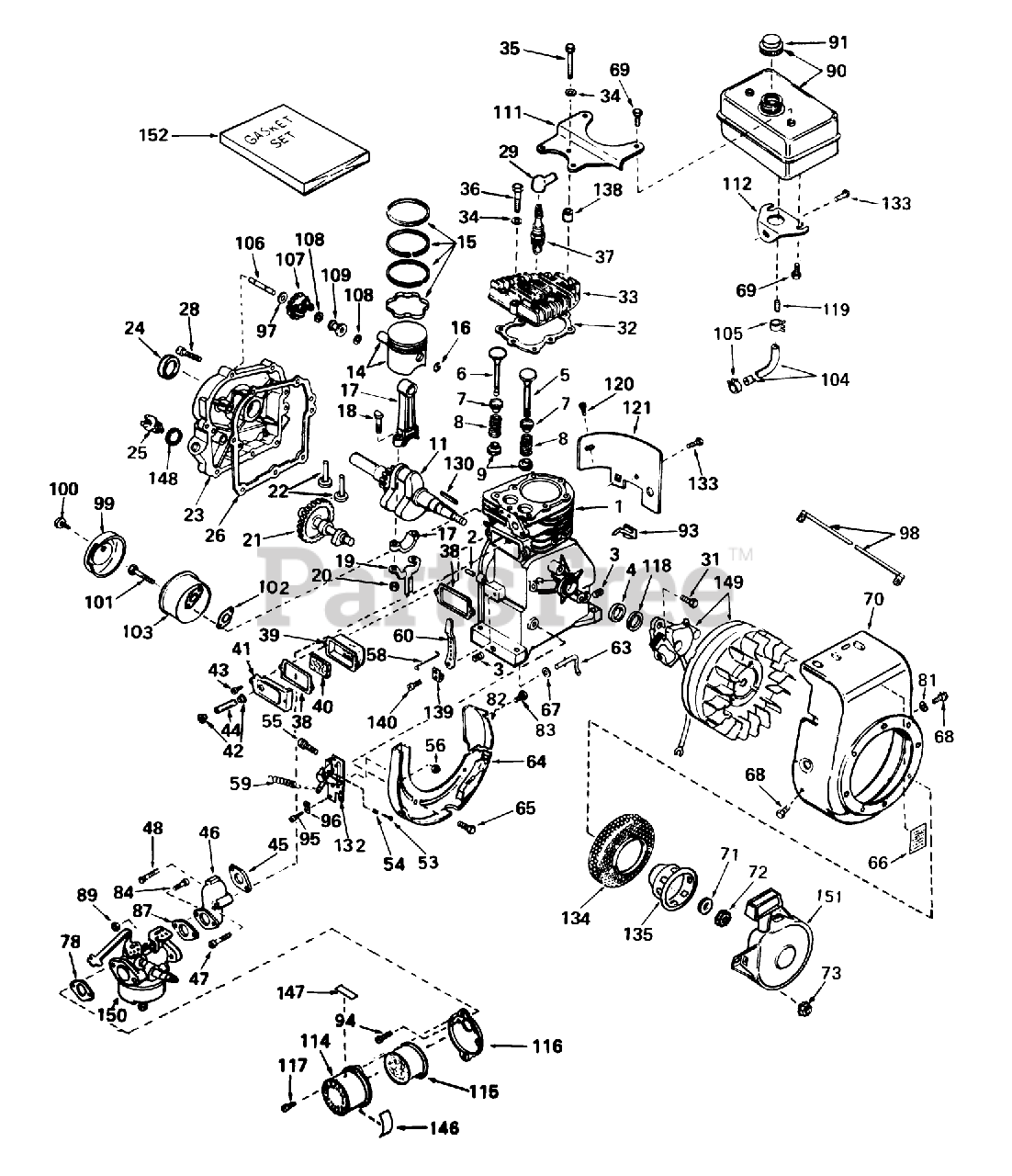

Engine Tecumseh Model H35-45481m Parts Diagram

  • Title

1

Toro 33164

Cylinder Assy. (Incl. Nos. 2,3 4)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 29183

OIL SEAL

$

$

Currently unavailable

5

Toro 29314A

Valve, Intake (Incl. Ref. #38, 39 40) (Std.)

$

$

Currently unavailable

5

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 32555A

Crankshaft Assy.

$

$

Currently unavailable

14

Toro 32538

Piston Pin Assembly (Incl. 2 of No. 16) (Std.)

$

$

Currently unavailable

14

Toro 32548

Piston Pin Assembly (Incl. 2 of No. 16) (.010 Oversize)

$

$

Currently unavailable

14

Toro 32549

Piston Pin Assembly (Incl. 2 of No. 16) (.020 Oversize)

$

$

Currently unavailable

15

Toro 28986

Piston Ring Set Std.

$

$

Currently unavailable

15

Toro 28987

Piston Ring Set .010 O.S.

$

$

Currently unavailable

15

Toro 28988

Piston Ring Set .020 O.S.

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 30963B

Rod Assy., Connecting (Incl. Ref. #17)

$

$

Currently unavailable

18

Toro 26706

Bolt, Connecting

$

$

Currently unavailable

19

Toro 28594

53020/22 GIL.HYDRO

$3.23

$

Usually ships in 3-6 days

0

20

Toro 27573

LOCKNUT

$

$

Currently unavailable

21

Toro 33149

Camshaft (Compression Release

$

$

Currently unavailable

22

Toro 27241

Lifter-Valve

$

$

Currently unavailable

23

Toro 30941D

Cover, Cylinder (Incl. Nos. 24, 25, 106 148)

$

$

Currently unavailable

24

Toro 30256

Seal, Oil

$

$

Currently unavailable

25

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

26

Toro 27677

Gasket-Cylinder Cover

Note: Indicates items included in Gasket Set part no. 33233

$

$

Currently unavailable

28

Toro 30564

Screw

$

$

Currently unavailable

29

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 29953B

Gasket-Cylinder Head

$

$

Currently unavailable

33

Toro 30579

CYLINDER HEAD

$

$

Currently unavailable

34

Toro 26073

Washer

$

$

Currently unavailable

35

Toro 650694

Screw Hex Hd. Cap

$

$

Currently unavailable

36

Toro 6021

Screw

$

$

Currently unavailable

37

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

38

Toro 27234

Gasket-Breather

Note: Indicates items included in Gasket Set part no. 33233

$

$

Currently unavailable

39

Toro 27666

Body-Breather
(Superseded to 704563)

$179.99

$

Usually ships in 3-6 days

0

40

Toro 27233

Element, Breather

$

$

Currently unavailable

41

Toro 27667

Gasket-Gear Case

$

$

Currently unavailable

42

Toro 32446

GROMMET

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 32447

Breather Tube

$

$

Currently unavailable

45

Toro 26754

Gasket-Intake

Note: Indicates items included in Gasket Set part no. 33233

$

$

Currently unavailable

46

Toro 28416

Pipe, Intake

$

$

Currently unavailable

47

Toro 650664

Screw (1/4-20 x 1-19/32)

$

$

Currently unavailable

48

Toro 30646

Screw

$

$

Currently unavailable

53

Toro 650549

Screw

$

$

Currently unavailable

54

Toro 31342

Spring-Compression

$

$

Currently unavailable

55

Toro 650139

Screw

Note: In original pruduction the speed control assemably is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

56

Toro 30322

Nut-Lock

$

$

Currently unavailable

58

Toro 31858

Jet-Main

$

$

Currently unavailable

59

Toro 31426

Spring-Extension

$

$

Currently unavailable

60

Toro 31510

Lever-Governor

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 33342

Baffle-Blower Housing
(Superseded to 704713)

Note: In original pruduction the speed control assemably is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Not available

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

66

Toro 32078

INSTRUCTION DECAL
(Superseded to 704669)

$

$

Not available

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

68

Toro 29212

Screw

$

$

Currently unavailable

69

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

70

Toro 33663A

Housing, Blower

$

$

Currently unavailable

71

Toro 650763

Washer-Spring

$

$

Currently unavailable

72

Toro 650607

Hex Nut

$

$

Currently unavailable

73

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

78

Toro 27272

Gasket

Note: Indicates items included in Gasket Set part no. 33233

$

$

Currently unavailable

81

Toro 50168

Washer, Flat

$

$

Currently unavailable

82

Toro 33341

Baffle-Extension

$

$

Currently unavailable

83

Toro 650701

Screw-Hex Washer Hd.

$

$

Currently unavailable

84

Toro 6202

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

87

Toro 26756

Gasket

Note: Indicates items included in Gasket Set part no. 33233

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

90

Toro 33120

53023/VAR.10/16HP O

$3.23

$

Usually ships in 3-6 days

0

91

Toro 410144B

Cap, Fuel

$

$

Currently unavailable

93

Toro 29443

Clip-Wire

$

$

Currently unavailable

94

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

95

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

96

Toro 27793

Conduit

$

$

Currently unavailable

97

Toro 30590A

Washer-Flat

$

$

Currently unavailable

98

Toro 31388

Wire, Ground

$

$

Currently unavailable

99

Toro 30997

Cover-Muffler

$

$

Currently unavailable

100

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

101

Toro 650493

Screw

$

$

Currently unavailable

102

Toro 30081

Gasket Exhaust

$

$

Currently unavailable

103

Toro 30996

Muffler

$

$

Currently unavailable

104

Toro 30705

Line-Fuel

$

$

Currently unavailable

105

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

111

Toro 28371B

Plate-Fuel Tank

$

$

Currently unavailable

112

Toro 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

114

Toro 31692

Body

$

$

Currently unavailable

115

Toro 31700

AIRCLEANER
(Superseded to 704629)

$

$

Not available

116

Toro 31708

BRACKET, AIRCLEANER

$

$

Currently unavailable

117

Toro 650152

Screw

$

$

Currently unavailable

118

Toro 33876

Gasket Stator

$

$

Currently unavailable

119

Toro 28819

Spring, Coil

$

$

Currently unavailable

120

Toro 610949

Key, Flywheel

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

130

Toro 610949

Key, Flywheel

$

$

Currently unavailable

132

Toro 33879

Bracket Assy., Control (Incl. Nos. 149, 150, 151 152)

$

$

Currently unavailable

133

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

134

Toro 33669

Screen, Starter

$

$

Currently unavailable

135

Toro 33667

Cup, Starter
(Superseded to 740552)

$

$

Not available

138

Toro 28212

pacer

$

$

Currently unavailable

139

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

140

Toro 650548

Screw

$

$

Currently unavailable

146

Toro 31871A

Decal, Air Cleaner

$

$

Currently unavailable

147

Toro 31268

Decal, "Choke"

$

$

Currently unavailable

148

Toro 39673

Gasket, Oil Filler

$

$

Currently unavailable

149

Toro 610940A

Magneto (The complete magneto is not available as an assembly The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

150

Toro 631921

Carburetor (Incl. Ref. #87)

$

$

Currently unavailable

151

Toro 590420

Starter, Rewind

$

$

Currently unavailable

152

Toro 33233

Gasket Set (Incl. items marked*

$

$

Currently unavailable
