58010 - Toro 26" Tiller (SN: 002000001 - 002999999) (1972) Carburetor Model No. 631144 Parts Diagram

26" Tiller

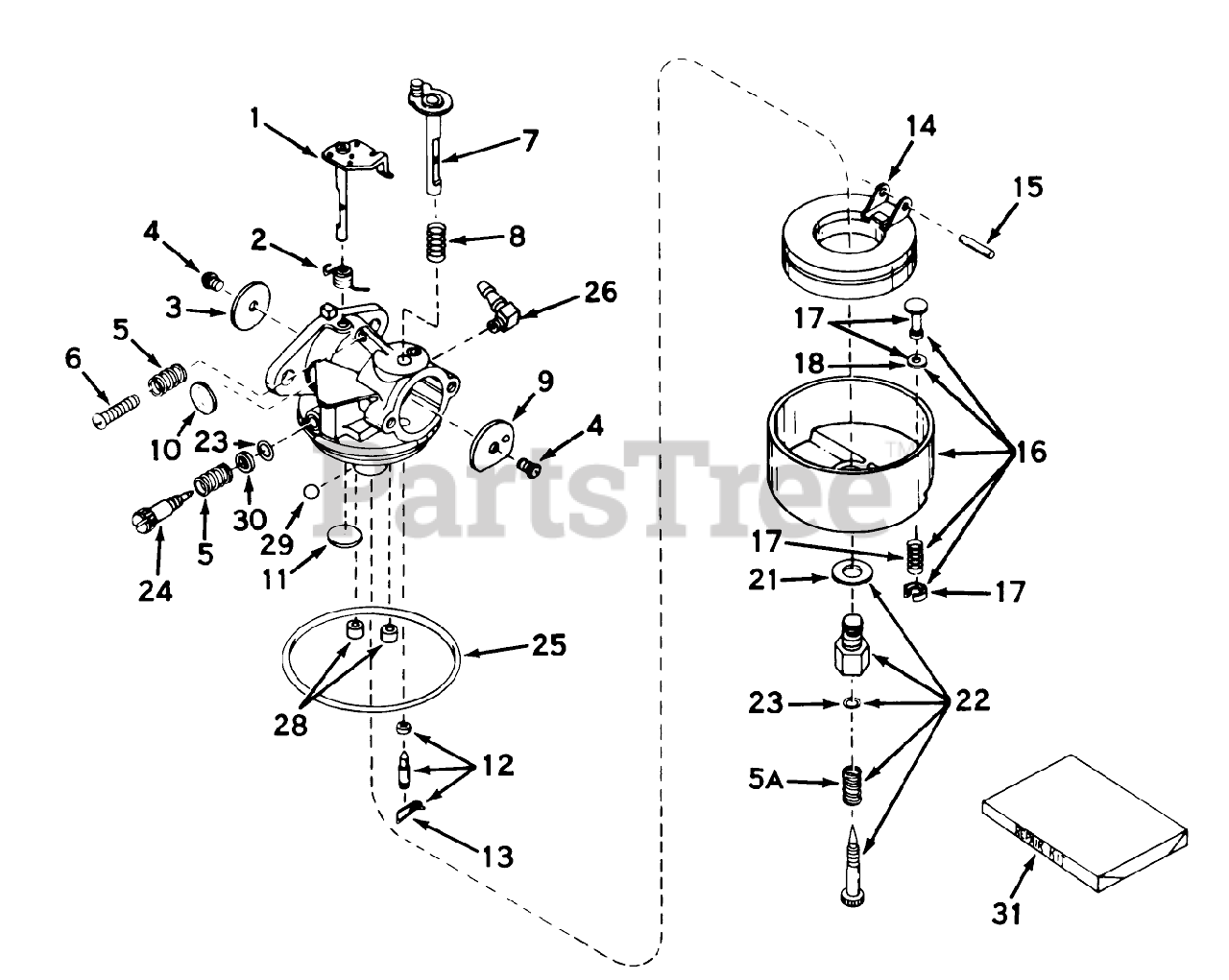

Carburetor Model No. 631144 Parts Diagram

  • Title

Toro 630983

Shaft Lever Assy.

$

$

Currently unavailable

Toro 631279

Spring, Throtte Return

$

$

Currently unavailable

Toro 631036

Shutter-Throttle

$

$

Currently unavailable

Toro 650506

Screw-Shutter

$

$

Currently unavailable

Toro 630766

Spring-Tension

$

$

Currently unavailable

Toro 630738

Spring

$

$

Currently unavailable

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

Toro 31842

Shaft Lever Assy., Choke
(Superseded to 742366)

$

$

Not available

Toro 630757

Spring, Choke return

$

$

Currently unavailable

Toro 31837

DISCONTINUED

$

$

Not available

Toro 630748

Plug-Welch, Idle Mixture Well

$

$

Currently unavailable

Toro 631027

Plug-Welch, Atmospheric Vent

$

$

Currently unavailable

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

Toro 631022

Clip-Spring

$

$

Currently unavailable

Toro 631023

Float,Carburetor

$

$

Currently unavailable

Toro 631024

Shaft-Float

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

16

Toro 631025

Bowl Drain Assy., Float (Incl. No. 17)

$

$

Currently unavailable

17

Toro 27136

Plunger Assy., Drain (Incl. Ref. 18)

$

$

Currently unavailable

18

Toro 27554

Gasket-Plunger, Drain

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

22

Toro 31839

Adjustment Screw Assy., Main (Incl. Nos. 5A, 21 23)

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

23

Toro 630740

ORing

$

$

Currently unavailable

24

Toro 631078

Screw, Idle Adj.

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

26

Toro 631038

Fitting Fuel Inlet

$

$

Currently unavailable

28

Toro 630747

Plug, Cup

$

$

Currently unavailable

29

Toro 631081

BalI, Steel

$

$

Currently unavailable

30

Toro 630739

Washer

$

$

Currently unavailable

31

Toro 31840

Repair Kit (Incl. items marked *)

$

$

Currently unavailable
