58010 - Toro 26" Tiller (SN: 002000001 - 002999999) (1972) Engine Tecumseh Model No. H30-35168h Parts Diagram

26" Tiller

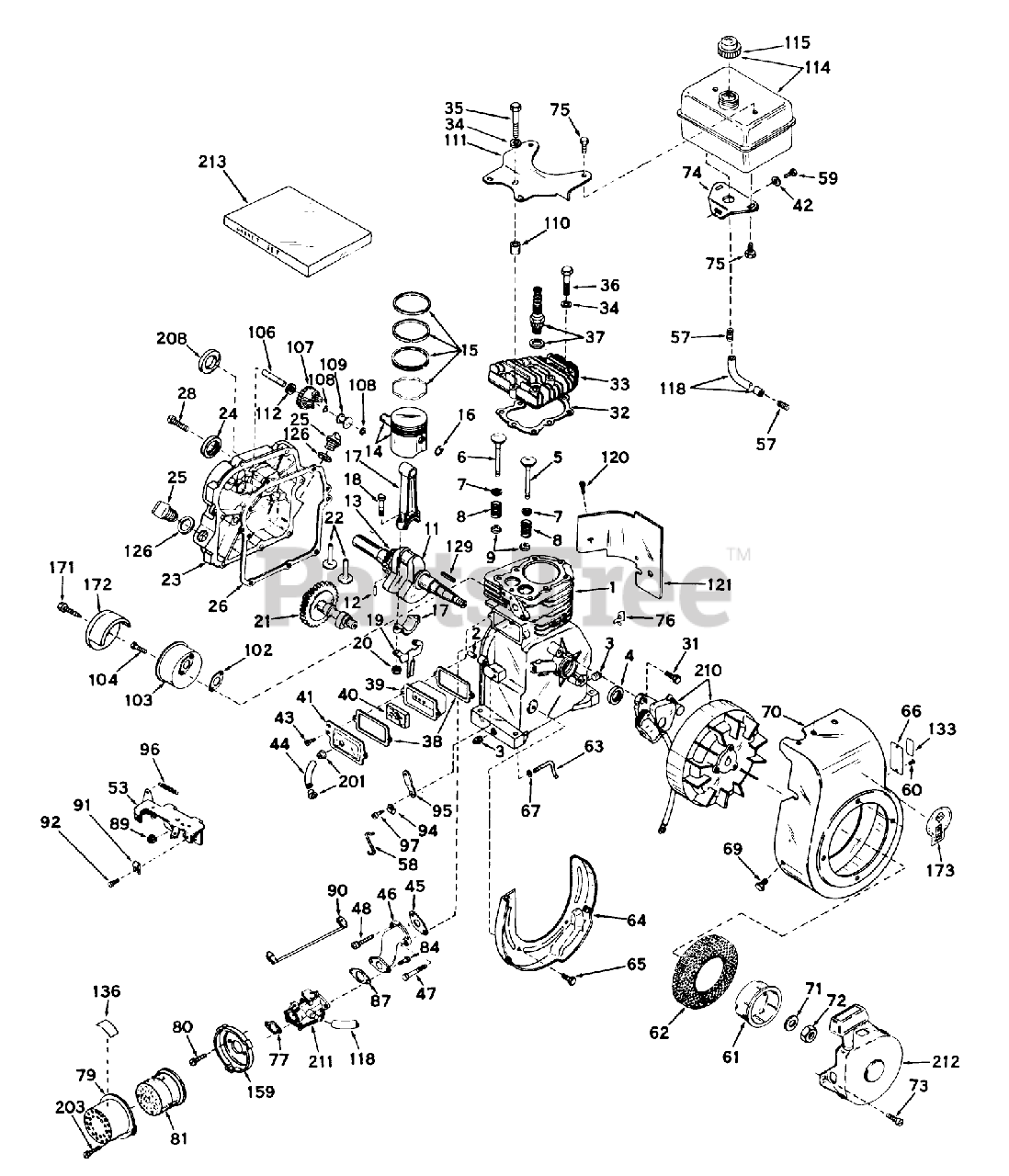

Engine Tecumseh Model No. H30-35168h Parts Diagram

  • Title

1

Toro 32668

Cylinder Assy.(Incl. Nos.2, 3 4)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 29183

OIL SEAL

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

5

Toro 29314A

Valve, Intake (Incl. Ref. #38, 39 40) (Std.)

$

$

Currently unavailable

5

Toro 29316A

Valve, Intake(1/32"overs.)(Incl. Ref. 8, 9 10)

$

$

Currently unavailable

6

Toro 29313A

Valve, Exhaust (Standard)(Incl. Ref. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315A

Valve, Exhaust (1/32" Overs.(Incl. Ref. 8, 9 10)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 31737

Crankshaft Assy. (Incl. Nos. 12 13)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Toro 31761

Piston Pin Assy. (Standard) (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 32662

Piston Pin Assy. (.010 Oversize) (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 32663

Piston Pin Assy. (.020 Over size)(Incl. 2 of No. 16)

$

$

Currently unavailable

15

Toro 27565

Ring Set, Piston (Std.)

$

$

Currently unavailable

15

Toro 27566

Ring Set, Piston (.010 o.s.)

$

$

Currently unavailable

15

Toro 27567

Ring Set, Piston (.020 o.s.)

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 30963B

Rod Assy., Connecting (Incl. Ref. #17)

$

$

Currently unavailable

18

Toro 26706

Bolt, Connecting

$

$

Currently unavailable

19

Toro 28594

53020/22 GIL.HYDRO

$3.23

$

Usually ships in 3-6 days

0

20

Toro 27573

LOCKNUT

$

$

Currently unavailable

21

Toro 33159

Camshaft, BCR, Extended

$

$

Currently unavailable

22

Toro 27241

Lifter-Valve

$

$

Currently unavailable

23

Toro 30757A

Cover, Cylinder (Incl. Nos. 24, 25, 26, 106, 126 208)

$

$

Currently unavailable

24

Toro 30256

Seal, Oil

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

25

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

26

Toro 27677

Gasket-Cylinder Cover

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

28

Toro 30564

Screw

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 29953B

Gasket-Cylinder Head

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

33

Toro 30579

CYLINDER HEAD

$

$

Currently unavailable

34

Toro 26073

Washer

$

$

Currently unavailable

35

Toro 650694

Screw Hex Hd. Cap

$

$

Currently unavailable

36

Toro 6021

Screw

$

$

Currently unavailable

37

Toro 21943

SPARK PLUG

$

$

Currently unavailable

38

Toro 27234

Gasket-Breather

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

39

Toro 27666

Body-Breather
(Superseded to 704563)

$179.99

$

Usually ships in 3-6 days

0

40

Toro 27233

Element, Breather

$

$

Currently unavailable

41

Toro 27667

Gasket-Gear Case

$

$

Currently unavailable

42

Toro 650675

Washer

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 32447

Breather Tube

$

$

Currently unavailable

45

Toro 26754

Gasket-Intake

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

46

Toro 28416

Pipe, Intake

$

$

Currently unavailable

47

Toro 30647

Screw

$

$

Currently unavailable

48

Toro 30646

Screw

$

$

Currently unavailable

53

Toro 33114

Bracket Control

$

$

Currently unavailable

57

Toro 28819

Spring, Coil

$

$

Currently unavailable

58

Toro 31858

Jet-Main

$

$

Currently unavailable

59

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

60

Toro 29309

DRIVE STUD

$

$

Currently unavailable

61

Toro 590416

Starter Cup

$

$

Currently unavailable

62

Toro 590417

Screen, Air

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 30658

Baffle, Blower Hsg.

$

$

Currently unavailable

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

66

Toro 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

69

Toro 650556

Screw

$

$

Currently unavailable

70

Toro 30655

Housing,Blower

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 screws illustrated to attach replacement starter to replacement blower housing

$

$

Currently unavailable

71

Toro 650490

Washer

$

$

Currently unavailable

72

Toro 650607

Hex Nut

$

$

Currently unavailable

73

Toro 29716

Screw

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 screws illustrated to attach replacement starter to replacement blower housing

$

$

Currently unavailable

74

Toro 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

75

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

76

Toro 29443

Clip-Wire

$

$

Currently unavailable

77

Toro 27272

Gasket

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

79

Toro 31692

Body

$

$

Currently unavailable

80

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

81

Toro 31700

AIRCLEANER
(Superseded to 704629)

$

$

Not available

84

Toro 6202

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

87

Toro 26756

Gasket

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

90

Toro 28468

Wire, Ground

$

$

Currently unavailable

91

Toro 27793

Conduit

$

$

Currently unavailable

92

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

94

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

95

Toro 31510

Lever-Governor

$

$

Currently unavailable

96

Toro 31426

Spring-Extension

$

$

Currently unavailable

97

Toro 650548

Screw

$

$

Currently unavailable

102

Toro 30081

Gasket Exhaust

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

103

Toro 30996

Muffler

$

$

Currently unavailable

104

Toro 650493

Screw

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

110

Toro 28212

pacer

$

$

Currently unavailable

111

Toro 28371A

Bracket, Fuel tank

$

$

Currently unavailable

112

Toro 30590A

Washer-Flat

$

$

Currently unavailable

114

Toro 33120

53023/VAR.10/16HP O

$3.23

$

Usually ships in 3-6 days

0

115

Toro 33032

Cap-Fuel
(Superseded to 702818)

$

$

Not available

118

Toro 30705

Line-Fuel

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

126

Toro 29673

Gasket

Note: Included in Gasket Set Ref Num 213.

$

$

Currently unavailable

129

Toro 27247

Key Flywheel

$

$

Currently unavailable

133

Toro 30586

Decal, Instruction

$

$

Currently unavailable

136

Toro 31871

DECAL, AIRCLEANER

$

$

Currently unavailable

159

Toro 31708

BRACKET, AIRCLEANER

$

$

Currently unavailable

171

Toro 650539

Screw, Muffler

$

$

Currently unavailable

172

Toro 30997

Cover-Muffler

$

$

Currently unavailable

173

Toro 30597

Decal, Name H.P.

$

$

Currently unavailable

201

Toro 32446

GROMMET

$

$

Currently unavailable

203

Toro 650152

Screw

$

$

Currently unavailable

208

Toro 30318

Seal, Oil

$

$

Currently unavailable

210

Toro 610690A

Magneto

$

$

Currently unavailable

211

Toro 631144

Carburetor

$

$

Currently unavailable

212

Toro 590420

Starter, Rewind

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 screws illustrated to attach replacement starter to replacement blower housing

$

$

Currently unavailable

213

Toro 31346E

Gasket Set

$

$

Currently unavailable
