58015 - Toro 26" Tiller (SN: 005000001 - 005999999) (1975) Carburetor No. 631070a Parts Diagram

26" Tiller

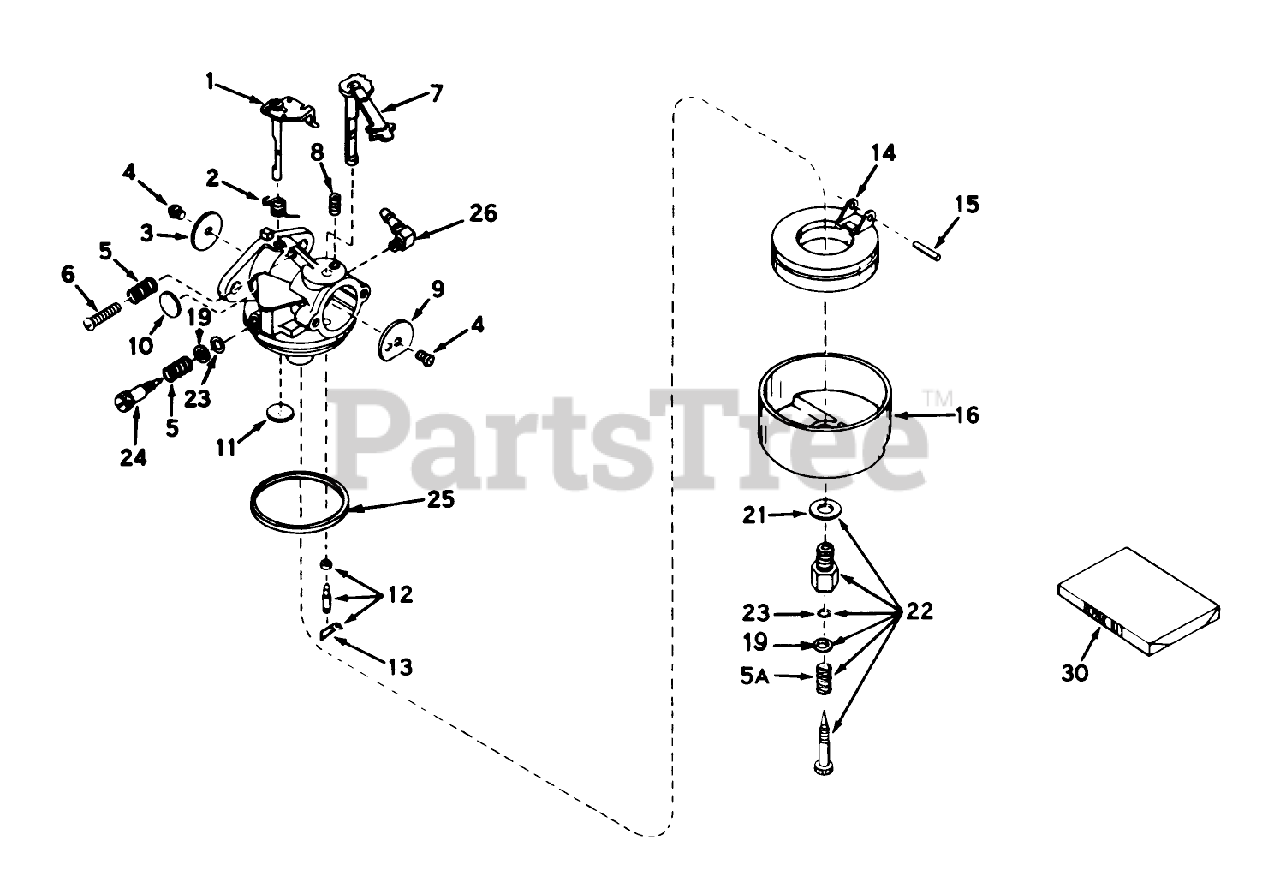

Carburetor No. 631070a Parts Diagram

  • Title

1

Toro 631615

Throttle Shaft and Lever ASM

$

$

Currently unavailable

2

Toro 631279

Spring, Throtte Return

$

$

Currently unavailable

3

Toro 631036

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

5A

Toro 630738

Spring

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 31859

Shaft Lever Assy., Choke

$

$

Currently unavailable

8

Toro 630735

Spring-Positioning, Choke

$

$

Currently unavailable

9

Toro 31837

DISCONTINUED

$

$

Not available

10

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

11

Toro 631027

Plug-Welch, Atmospheric Vent

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

13

Toro 631022

Clip-Spring

$

$

Currently unavailable

14

Toro 631023

Float,Carburetor

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

16

Toro 631867

Bowl-Float (no drain)

$

$

Currently unavailable

19

Toro 630739

Washer

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

$

$

Currently unavailable

22

Toro 31839

Adjustment Screw Assy., Main (Incl. Nos. 5A, 21 23)

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

23

Toro 630740

ORing

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

24

Toro 631078

Screw, Idle Adj.

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

26

Toro 631775

Fitting-Fuel

$

$

Currently unavailable

30

Toro 31840

Repair Kit (Incl. items marked *)

$

$

Currently unavailable
