58050 - Toro 22" Tiller (SN: 003000001 - 003999999) (1983) ENGINE BRIGGS & STRATTON MODEL 80202-1651-01 Parts Diagram

22" Tiller

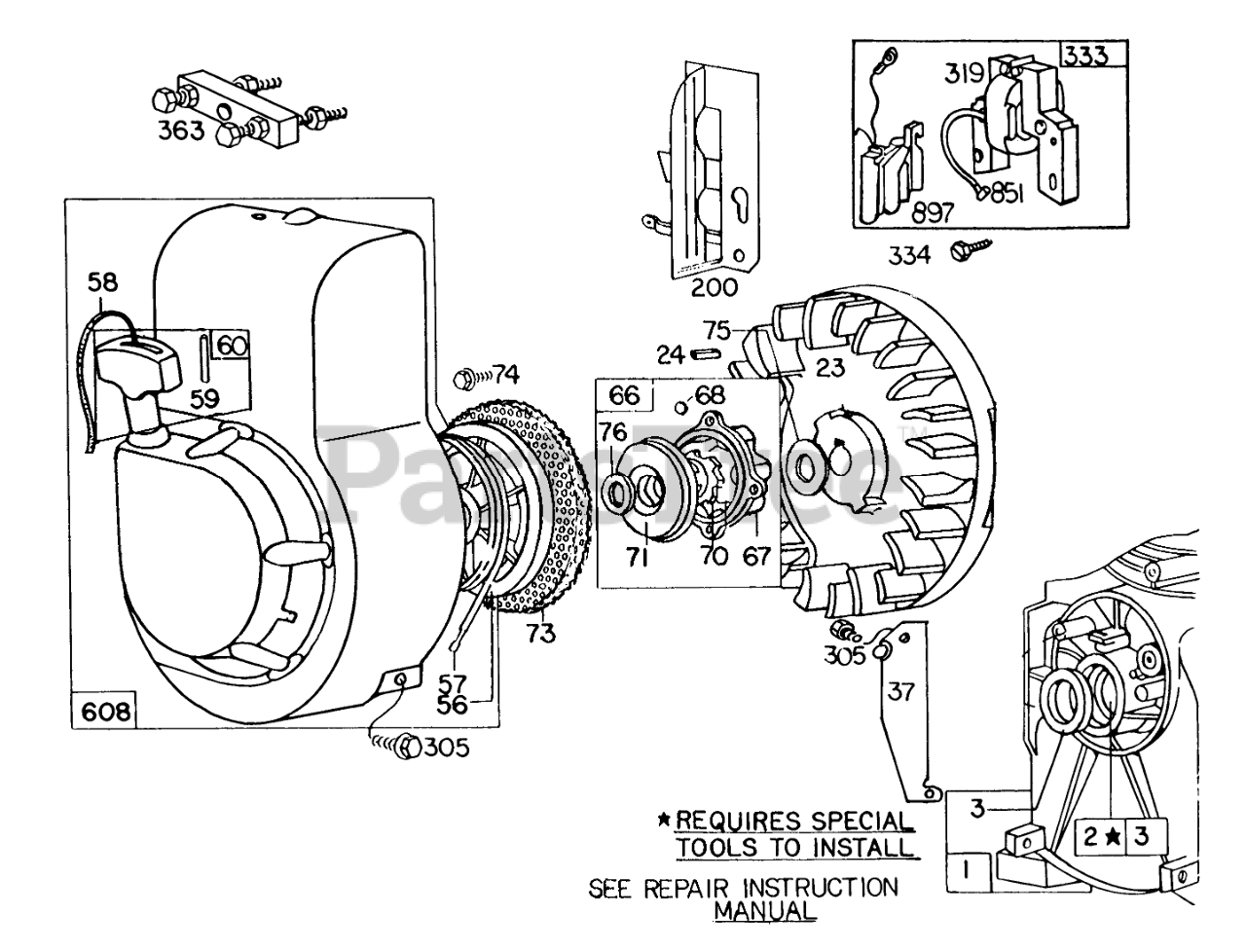

ENGINE BRIGGS & STRATTON MODEL 80202-1651-01 Parts Diagram

  • Title

1

Briggs & Stratton 395879

Cylinder Assembly

$199.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, Qty 6

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

23

Briggs & Stratton 296884

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 220971

Guard-Flywheel

$11.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 280117

Pulley-Starter
(Superseded to 280439S)

$12.99

$

In Stock, only 2 left!

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$14.99

$

In Stock, Qty 14

0

58

Briggs & Stratton 66694

Rope-Rewind
(Superseded to 66734)

$6.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

60

Briggs & Stratton 393152

Grip-Starter Rope

$4.99

$

In Stock, only 3 left!

0

66

Briggs & Stratton 394558

Housing-Starter Clutch
(Superseded to 399671)

$34.99

$

In Stock, Qty 16

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221661

Screw-Sem
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 297310

Blade-Governor
(Superseded to 498770)

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

319

Briggs & Stratton 395488

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, Qty 12

0

333

Briggs & Stratton 395489

Armature-Group
(Superseded to 591420)

$53.99

$

In Stock, Qty 12

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

608

Briggs & Stratton 294259

Starter Assy.-Rewind

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

897

Briggs & Stratton 394970

Trigger Coil

$

$

Not available
