58050 - Toro 22" Tiller (SN: 003000001 - 003999999) (1983) Engine Briggs Stratton Model 80202-1651-01 Parts Diagram

22" Tiller

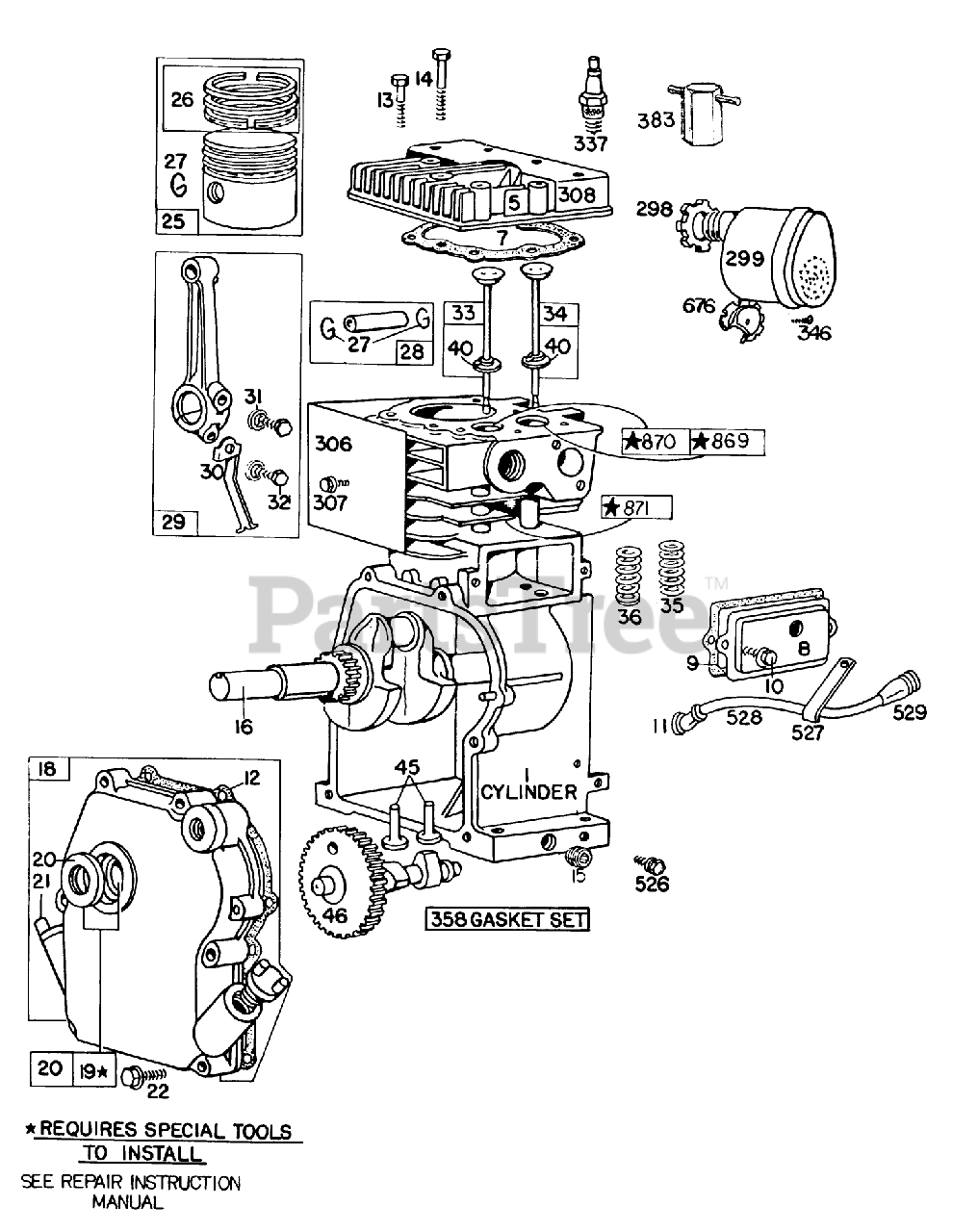

Engine Briggs Stratton Model 80202-1651-01 Parts Diagram

  • Title

1

Toro 395879

Cylinder Assembly

$

$

Currently unavailable

5

Toro 210812

Head-Cylinder

$

$

Currently unavailable

7

Toro 27670

Gasket-Cylinder Hd.

Note: Included in Gasket Set-Part No. 297275.

$

$

Currently unavailable

8

Toro 294178

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part No. 297275.

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 66578

Grommet

$

$

Currently unavailable

12

Toro 270833

Gasket-Crankcase-.015" thick

Note: Included in Gasket Set-Part No. 297275.

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 297275.

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

14

Toro 93113

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 93448

Plug-Pipe

$

$

Currently unavailable

16

Toro 260492

Crankshaft

$

$

Currently unavailable

18

Toro 394820

Lever-Traction Control

$

$

Currently unavailable

19

Toro 293708

Bushing

$

$

Currently unavailable

20

Toro 299819

Seal-Oil

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

25

Toro 295587

Piston Assy.-Std.

$

$

Currently unavailable

Toro 295588

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 295589

Piston Assy. .020" O.S.

$

$

Currently unavailable

Toro 295590

Piston Assy.-.030" O.S.

$

$

Currently unavailable

26

Toro 294232

Ring Set (Std.)

$

$

Currently unavailable

Toro 294224

Ring Set .010" OS.

$

$

Currently unavailable

Toro 294225

Ring Set .020" OS.

$

$

Currently unavailable

Toro 294226

Ring Set .030" OS.

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 294367

Rod Assy.-Connecting

$

$

Currently unavailable

30

Toro 220670

Dipper-Conn. Rod

$

$

Currently unavailable

31

Toro 222282

DISCONTINUED

$

$

Not available

32

Toro 92296

Screw, Conn.Rod

$

$

Currently unavailable

33

Toro 296676

Valve Exhaust

$

$

Currently unavailable

34

Toro 296677

Valve Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 230173

Tappet-Valve

$

$

Not available

46

Toro 210453

Gear-Cam
(Superseded to 740280)

$23.99

$

Usually ships in 3-6 days

0

298

Toro 220859

Locknut-Muffier

$

$

Not available

299

Toro 392811

Muffler-Exhaust

$

$

Currently unavailable

306

Toro 220478

Muffler-Exhaust

$

$

Currently unavailable

307

Toro 93490

Screw

$

$

Currently unavailable

308

Toro 220581

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 298809

Plug Spark

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

358

Toro 297275

Gasket Set

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

526

Toro 93686

Screw-Hex Head

$

$

Currently unavailable

527

Toro 221279

Clamp-Breather

$

$

Currently unavailable

528

Toro 230634

Tube-Breather

$

$

Currently unavailable

529

Toro 67608

Grommet-Breather Tube

$

$

Currently unavailable

676

Toro 393760

Deflector-Exhaust

$

$

Currently unavailable

869

Toro 210879

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 211291

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 63709

Bushing-Guide

$

$

Currently unavailable
