58050 - Toro 22" Tiller (SN: 003000001 - 003999999) (1983) TILLER ASSEMBLY Parts Diagram

22" Tiller

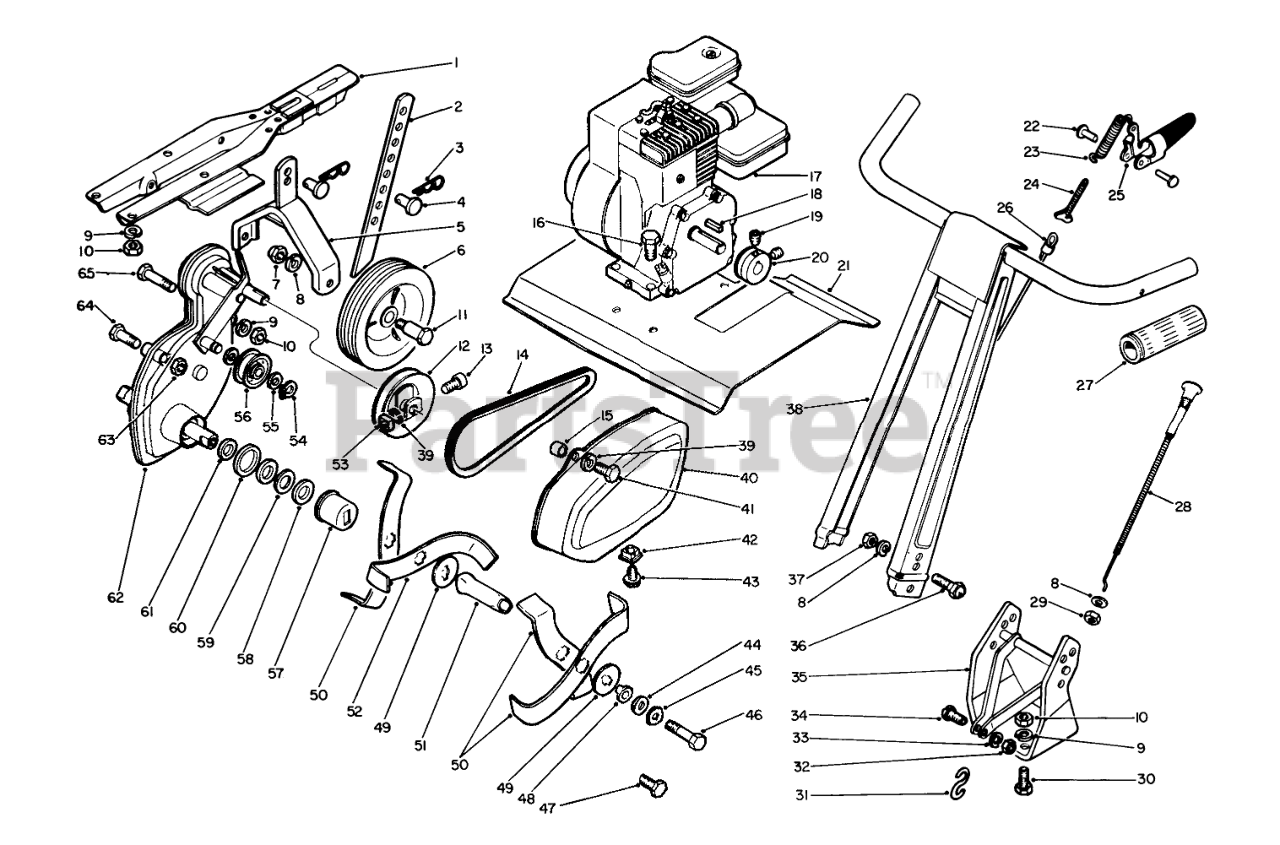

TILLER ASSEMBLY Parts Diagram

  • Title

1

Toro 48-0940

Frame
(Superseded to 743247)

$

$

Not available

2

Toro 47-8660

Depth Stick

$

$

Not available

3

Toro 47-7790

Spring Clip
(Superseded to 146428)

$

$

Not available

4

Toro 47-7820

Clevis Pin
(Superseded to 701730)

$

$

Not available

5

Toro 48-0950

Wheel Hanger
(Superseded to 740329)

$

$

Not available

6

Toro 47-8340

Wheel & Tire Assembly
(Superseded to 742284)

$

$

Not available

7

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

8

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

11

Toro 47-8290

Shoulder Bolt
(Superseded to 700854)

$

$

Not available

12

Toro 47-8620

Pulley Assembly

$

$

Not available

13

Toro 47-8880

Socket Hd. Capscrew

$

$

Not available

14

Toro 47-8630

V-BELT

$

$

Not available

15

Toro 47-7970

Spacer
(Superseded to 704075)

$

$

Not available

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 47-7680

Engine

$

$

Currently unavailable

18

Toro 10-8040

KEY-SQUARE

$2.99

$

In Stock, Qty 20+

0

19

Toro 3245-7

SCREW-SET

$

$

Currently unavailable

20

Toro 47-8410

Engine Pulley

$

$

Not available

21

Toro 47-8720

Tine Shield

$

$

Not available

22

Toro 47-8390

Rivet Assembly
(Superseded to 740348)

$

$

Not available

23

Toro 48-0290

Spring-Adjuster

$

$

Not available

24

Toro 48-0300

Stud-Adjustment
(Superseded to 742720)

$

$

Not available

25

Toro 48-0260

Clutch Grip
(Superseded to 701450)

$

$

Not available

26

Toro 48-0970

Clutch Cable Assembly
(Superseded to 741729)

$

$

Not available

27

Toro 48-1130

Grip
(Superseded to 706342)

$

$

Not available

28

Toro 47-8640

Throttle Control

$

$

Not available

29

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 47-9510

-S- Hook
(Superseded to 701266)

$

$

Not available

32

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0

33

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

34

Toro 47-8870

Machine Screw

$

$

Not available

35

Toro 48-0960

Support-Handle
(Superseded to 740332)

$

$

Not available

36

Toro 47-7800

Acorn Hd. Bolt
(Superseded to 703213)

$

$

Not available

37

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 14

0

38

Toro 48-1120

Handle W/Decal

$

$

Not available

39

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 47-8680

Belt Guard W/Decal

$

$

Not available

41

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

42

Toro 47-8650

Expansion Nut

$

$

Not available

43

Toro 47-8690

Hex Hd. Tapping Screw

$

$

Not available

44

Toro 48-1010

Washer
(Superseded to 701437)

$

$

Not available

45

Toro 47-8400

LOCKWASHER

$

$

Not available

46

Toro 47-8700

Tine Bolt
(Superseded to 701438)

$23.99

$

Usually ships in 3-6 days

0

47

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

48

Toro 47-8490

Bushing
(Superseded to 700857)

$

$

Not available

49

Toro 47-8740

Washer
(Superseded to 701428)

$

$

Not available

50

Toro 48-0910

Tine R.H.
(Superseded to 706027)

$

$

Not available

51

Toro 47-8530

Tine Extension
(Superseded to 701416)

$

$

Not available

52

Toro 48-0920

Tine L.H.
(Superseded to 706028)

$

$

Not available

53

Toro 32107-11

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

54

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 17

0

55

Toro 47-8110

Washer
(Superseded to 700317)

$5.49

$

In Stock, only 1 left!

0

56

Toro 47-8500

Idler Pulley
(Superseded to 740051)

$

$

Not available

57

Toro 47-8480

Seal Collar Assembly

$

$

Not available

58

Toro 47-8450

Felt Seal

$

$

Not available

59

Toro 47-8430

Washer

$

$

Not available

60

Toro 47-8440

Felt Seal

$

$

Not available

61

Toro 47-8260

Seal
(Superseded to 700123)

$36.99

$

Usually ships in 3-6 days

0

62

Toro 48-0930

Chain Case Assembly

$

$

Not available

63

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

64

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

65

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0
