58070 - Toro 26" Tiller (SN: 003000001 - 003999999) (1983) TILLER ASSEMBLY Parts Diagram

26" Tiller

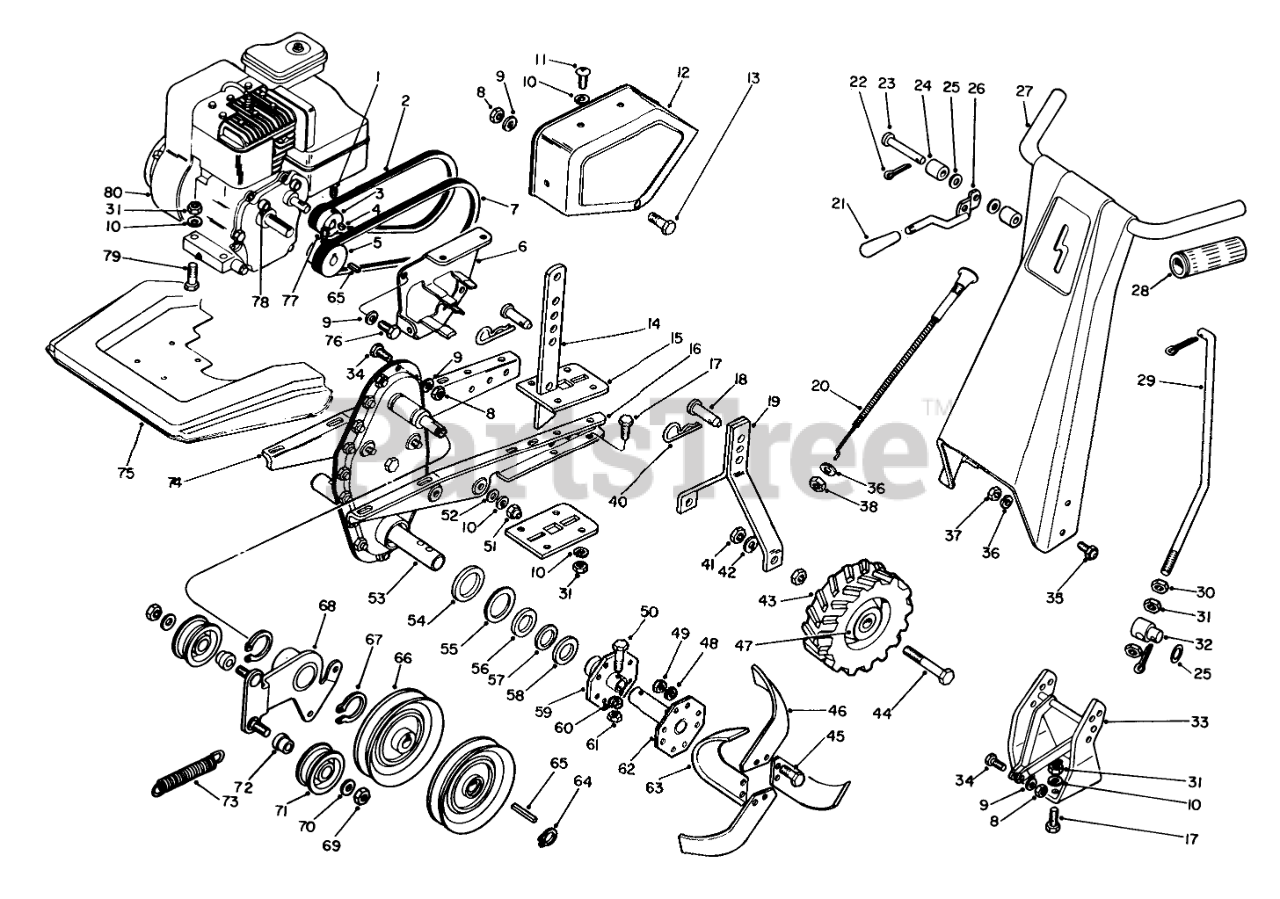

TILLER ASSEMBLY Parts Diagram

  • Title

1

Toro 3245-7

SCREW-SET

$

$

Currently unavailable

2

Toro 48-0090

Nut
(Superseded to 701798)

$

$

Not available

3

Toro 47-8990

Camshaft Pulley
(Superseded to 701781)

$

$

Not available

4

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

5

Toro 48-1110

Pulley-Engine
(Superseded to 701436)

$

$

Not available

6

Toro 48-0270

Bracket
(Superseded to 740479)

$

$

Not available

7

Toro 47-9540

V-Belt-Forward
(Superseded to 700370)

$28.99

$

In Stock, only 1 left!

0

8

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 6

0

9

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 47-8800

Pan Hd. Mach. Screw
(Superseded to 701237)

$

$

Not available

12

Toro 48-1020

Belt Guard w/Decal

$

$

Not available

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 47-7990

Depth Control
(Superseded to 701792)

$

$

Not available

15

Toro 47-9730

Plate-Hitch
(Superseded to 701796)

$

$

Not available

16

Toro 47-9720

Frame-L.H.

$

$

Not available

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 47-8040

Clevis Pin
(Superseded to 701777)

$

$

Not available

19

Toro 47-8520

Wheel Hanger
(Superseded to 740526)

$

$

Not available

20

Toro 48-0850

Throttle Control
(Superseded to 701782)

$100.99

$

Usually ships in 3-6 days

0

21

Toro 47-8140

Knob
(Superseded to 701879)

$

$

Not available

22

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

23

Toro 47-8220

Clevis Pin
(Superseded to 701448)

$

$

Not available

24

Toro 47-8210

Rubber Disc
(Superseded to 700154)

$

$

Not available

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 48-1040

Clutch Lever

$

$

Not available

27

Toro 48-1070

Handle w/Decal

$

$

Not available

28

Toro 48-1130

Grip
(Superseded to 706342)

$

$

Not available

29

Toro 48-1030

Control Rod

$

$

Not available

30

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

31

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 11

0

32

Toro 48-0130

Swivel
(Superseded to 742712)

$3385.99

$

Usually ships in 3-6 days

0

33

Toro 48-1050

Handle Support
(Superseded to 743319)

$

$

Not available

34

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 47-7800

Acorn Hd. Bolt
(Superseded to 703213)

$

$

Not available

36

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 12

0

37

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

38

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 19

0

40

Toro 47-7790

Spring Clip
(Superseded to 146428)

$

$

Not available

41

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

42

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

43

Toro 47-8010

Tire & Wheel Assembly L.H.
(Superseded to 741212)

$

$

Not available

44

Toro 325-14

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

45

Toro 47-7980

Tine Bolt
(Superseded to 703449)

$

$

Not available

46

Toro 47-7910

Tine R.H.
(Superseded to 703257)

$

$

Not available

47

Toro 47-8000

Tire & Wheel Assembly R.H.
(Superseded to 741211)

$268.99

$

Usually ships in 3-6 days

0

48

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

49

Toro 3219-4

NUT-HEX

$3.99

$

Usually ships in 3-6 days

0

50

Toro 47-8860

Capscrew
(Superseded to 146256)

$

$

Not available

51

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, only 2 left!

0

52

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

53

Toro 48-1260

Chain Case Assembly
(Superseded to 742712)

$3385.99

$

Usually ships in 3-6 days

0

54

Toro 47-9670

Washer
(Superseded to 701791)

$10.99

$

In Stock, only 2 left!

0

55

Toro 47-7780

Felt Seal
(Superseded to 701778)

$8.49

$

In Stock, only 2 left!

0

56

Toro 47-8100

Felt Seal
(Superseded to 701779)

$6.99

$

In Stock, Qty 20+

0

57

Toro 47-8050

Washer
(Superseded to 70-1790)

$

$

Not available

58

Toro 47-8060

Felt Seal
(Superseded to 701780)

$

$

Not available

59

Toro 47-8080

Inner Tine Hub
(Superseded to 742022)

$

$

Not available

60

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

61

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 19

0

62

Toro 47-8070

Outer Tine Hub
(Superseded to 742021)

$

$

Not available

63

Toro 47-7920

Tine L.H.
(Superseded to 703258)

$

$

Not available

64

Toro 47-9580

Retaining Ring
(Superseded to 701786)

$2.49

$

Usually ships in 3-6 days

0

65

Toro 3-6857

SQUARE KEY

$19.99

$

Usually ships in 3-6 days

0

66

Toro 48-0100

Pulley
(Superseded to 740524)

$

$

Not available

67

Toro 32120-33

RING-RETAINING

$7.99

$

In Stock, Qty 20+

0

68

Toro 48-0110

Idler Arm
(Superseded to 740477)

$316.99

$

Usually ships in 3-6 days

0

69

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 11

0

70

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

71

Toro 47-9520

Idler Pulley
(Superseded to 740006)

$

$

Not available

72

Toro 47-9530

Spacer
(Superseded to 700090)

$

$

Not available

73

Toro 48-0120

Spring
(Superseded to 701784)

$62.99

$

Usually ships in 3-6 days

0

74

Toro 47-9710

Frame R.H.
(Superseded to 701865)

$

$

Not available

75

Toro 48-0980

Tine Shield

$

$

Not available

76

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

77

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

78

Toro 47-7860

Spacer
(Superseded to 147181)

$

$

Not available

79

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

80

Toro 47-7700

Engine

$

$

Currently unavailable
