58114 - Toro 26" Tiller (SN: 003000001 - 003999999) (1973) Engine Model No. 100292 Type 0245-07 Briggs Stratton Parts Diagram

26" Tiller

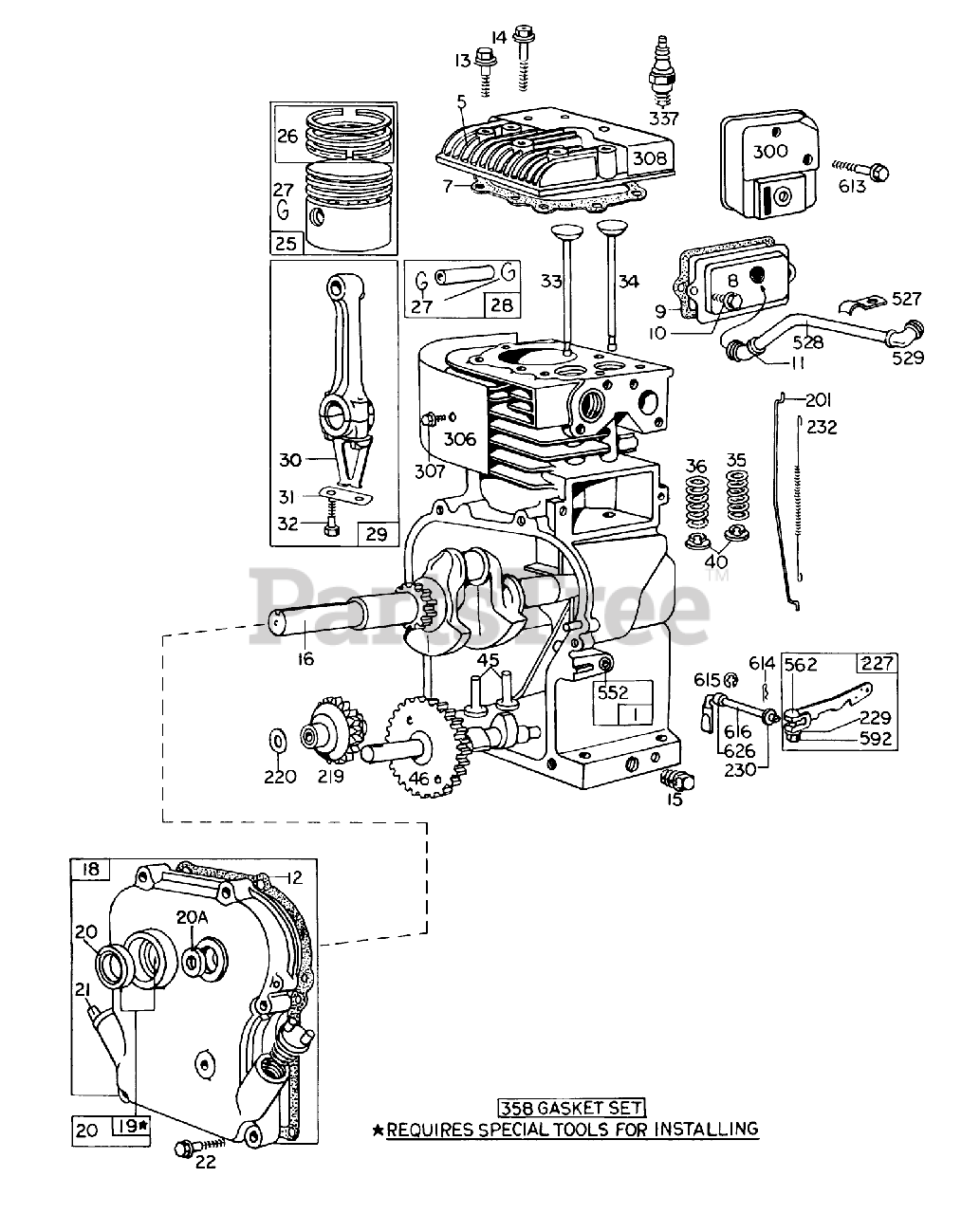

Engine Model No. 100292 Type 0245-07 Briggs Stratton Parts Diagram

  • Title

1

Toro 297566

Cylinder Assembly

$

$

Currently unavailable

5

Toro 211127

Head-Cylinder

$

$

Currently unavailable

7

Toro 270383

Gasket-Cylinder Head

Note: Included in Gasket Set-Part NO. 297615

$

$

Currently unavailable

8

Toro 294178

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part NO. 297615

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 66578

Grommet

$

$

Currently unavailable

12

Toro 270080

Gasket (.015"Std.)

Note: Included in Gasket Set-Part NO. 297615

$

$

Currently unavailable

Toro 270125

Gasket (.015")

$

$

Currently unavailable

Toro 270126

Gasket (.009")

$

$

Currently unavailable

13

Toro 93368

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93369

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91249

Plug-Pipe

$

$

Currently unavailable

16

Toro 260719

Crankshaft

$

$

Currently unavailable

18

Toro 298183

Cover Assy.-Crankcase

$

$

Currently unavailable

19

Toro 297603

Bushing-Crankcase Cover

$

$

Currently unavailable

20

Toro 294606

Seal-Oil

$

$

Currently unavailable

20A

Toro 298041

Seal-Oil

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

25

Toro 298168

Piston Assy. (Standard)

$

$

Currently unavailable

Toro 298169

Piston Assy. (.010 oversize)

$

$

Currently unavailable

Toro 298170

Piston Assy. (.020 oversize)

$

$

Currently unavailable

Toro 298171

Piston Assy. (.030 oversize)

$

$

Currently unavailable

26

Toro 298174

Ring Set-Std . Piston, consists of: 211297 Ring, Piston, Comp. Top, 5/64" wide 211298 Ring, Piston, Compression Center, 5/64" wide 211299 Ring, Piston, Oil

$

$

Currently unavailable

Toro 298175

Ring Set-.010" O.S. Piston, Consists of: 211353 Ring, Piston, Comp. Top, .010" O.S., 5/64" wide 211352 Ring, Piston, Compression, Center, .010" O.S. 5/64" wide 211351 Ring, Piston, Oil, .010" O.S.

$

$

Currently unavailable

Toro 298176

Ring Set-.020" O.S. Piston, consists of: 211357 Ring, Piston, Comp., Top, .020" O.S., 5/64" wide 211356 Ring, Piston, Compression, Center, .020" O.S., 5/64" wide 211355 Ring, Piston, Oil, .020" O.S.

$

$

Currently unavailable

Toro 298177

Ring Set-030" O.S.Piston consists of: 211361 Ring, Piston, Comp., Top, .030" O.S., 5/64" wide 211360 Ring, Piston, Compression, Center, .030" O.S., 5/64" wide 211359 Ring, Piston, Oil, .030" O.S.

$

$

Currently unavailable

27

Toro 260645

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 297581

Pin Assy.,-Piston-Standard

$

$

Currently unavailable

Toro 297582

Pin Assy.,-Piston-.005"O.S.

$

$

Currently unavailable

29

Toro 297569

Rod Assy.,-Connecting

$

$

Currently unavailable

30

Toro 221786

Dipper-Connecting Rod

$

$

Currently unavailable

31

Toro 221741

Lock-Connecting Rod Screw

$

$

Currently unavailable

32

Toro 93450

Screw-Connecting Rod

$

$

Currently unavailable

33

Toro 211119

Valve Exhaust

$

$

Currently unavailable

34

Toro 261044

Valve-Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 260642

Tappet-Valve

$

$

Currently unavailable

46

Toro 211284

Gear-Cam

$

$

Currently unavailable

201

Toro 260661

Link-Governor

$

$

Currently unavailable

219

Toro 297656

Gear-Governor

$

$

Currently unavailable

220

Toro 221551

Washer-Thrust

$

$

Currently unavailable

227

Toro 297601

Lever Assy.-Governor

$

$

Currently unavailable

229

Toro 220680

Washer

$

$

Currently unavailable

230

Toro 221559

Clamp-Casing

$

$

Currently unavailable

232

Toro 260478

Spring-Governor Link

$

$

Currently unavailable

300

Toro 297506

Muffler-Exhaust

$

$

Currently unavailable

306

Toro 221511

Shield-Cylinder

$

$

Currently unavailable

307

Toro 93042

Screw

$

$

Currently unavailable

308

Toro 221512

Cover Cylinder Head

$

$

Currently unavailable

337

Toro 298809

Plug Spark

$

$

Currently unavailable

358

Toro 297615

Gasket Set

$

$

Currently unavailable

527

Toro 221514

Clamp, BreatherTube

$

$

Currently unavailable

528

Toro 230722

Condenser

$

$

Currently unavailable

529

Toro 67838

Grommet

$

$

Currently unavailable

552

Toro 230732

Bushing-Governor

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 90356

Nut

$

$

Currently unavailable

613

Toro 93377

Screw-Hex. Hd.

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 230723

Crank-Governor

$

$

Currently unavailable

626

Toro 230749

Spacer-Gov. Crank

$

$

Currently unavailable
