58150 - Toro 18" Tiller (SN: 003000001 - 003999999) (1983) FRAME AND SHIELD ASSEMBLY Parts Diagram

18" Tiller

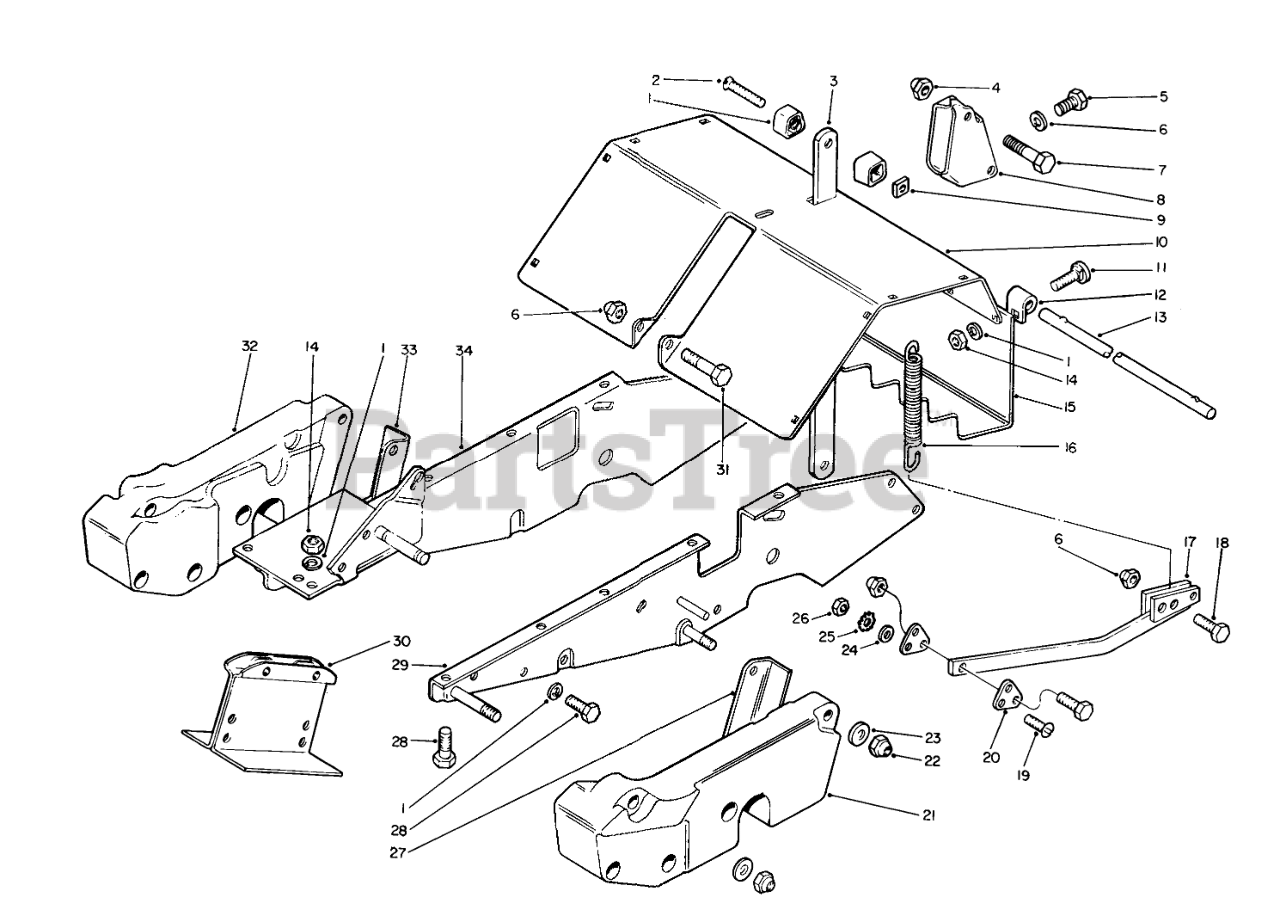

FRAME AND SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro 47-8320

Handle

$

$

Not available

2

Toro 47-8930

Machine Screw

$

$

Not available

3

Toro 47-9140

Depth Control
(Superseded to 742792)

$

$

Not available

4

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

5

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

8

Toro 47-9190

Support
(Superseded to 740453)

$

$

Not available

9

Toro 32107-5

Nut-Square

$

$

Currently unavailable

10

Toro 48-0570

Shield w/Decal

$

$

Not available

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 47-9360

Hinge
(Superseded to 701682)

$

$

Not available

13

Toro 47-9000

Rod
(Superseded to 705343)

$

$

Not available

14

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

15

Toro 47-9160

Guard
(Superseded to 740466)

$

$

Not available

16

Toro 47-9230

Spring
(Superseded to 705348)

$

$

Not available

17

Toro 48-0170

Skid
(Superseded to 742919)

$

$

Not available

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3251-12

10-24 X 1 RND HD MS

$0.99

$

Usually ships in 3-6 days

0

20

Toro 47-9200

Lug
(Superseded to 701684)

$

$

Not available

21

Toro 48-0230

Counterweight-L.H.
(Superseded to 701764)

$

$

Not available

22

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

25

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 4 left!

0

27

Toro 48-0210

Hanger-Rear L.H.
(Superseded to 701711)

$

$

Not available

28

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

29

Toro 48-0520

Frame-L.H.

$

$

Not available

30

Toro 48-0190

Support-Counterweight

$

$

Not available

31

Toro 47-8940

Hex Hd. Capscrew

$

$

Not available

32

Toro 48-0220

Counterweight-R.H.
(Superseded to 701763)

$

$

Not available

33

Toro 48-0200

Hanger-Rear R.H.
(Superseded to 701710)

$

$

Not available

34

Toro 48-0510

Frame-R.H.
(Superseded to 743403)

$

$

Not available
