58150 - Toro 18" Tiller (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

18" Tiller

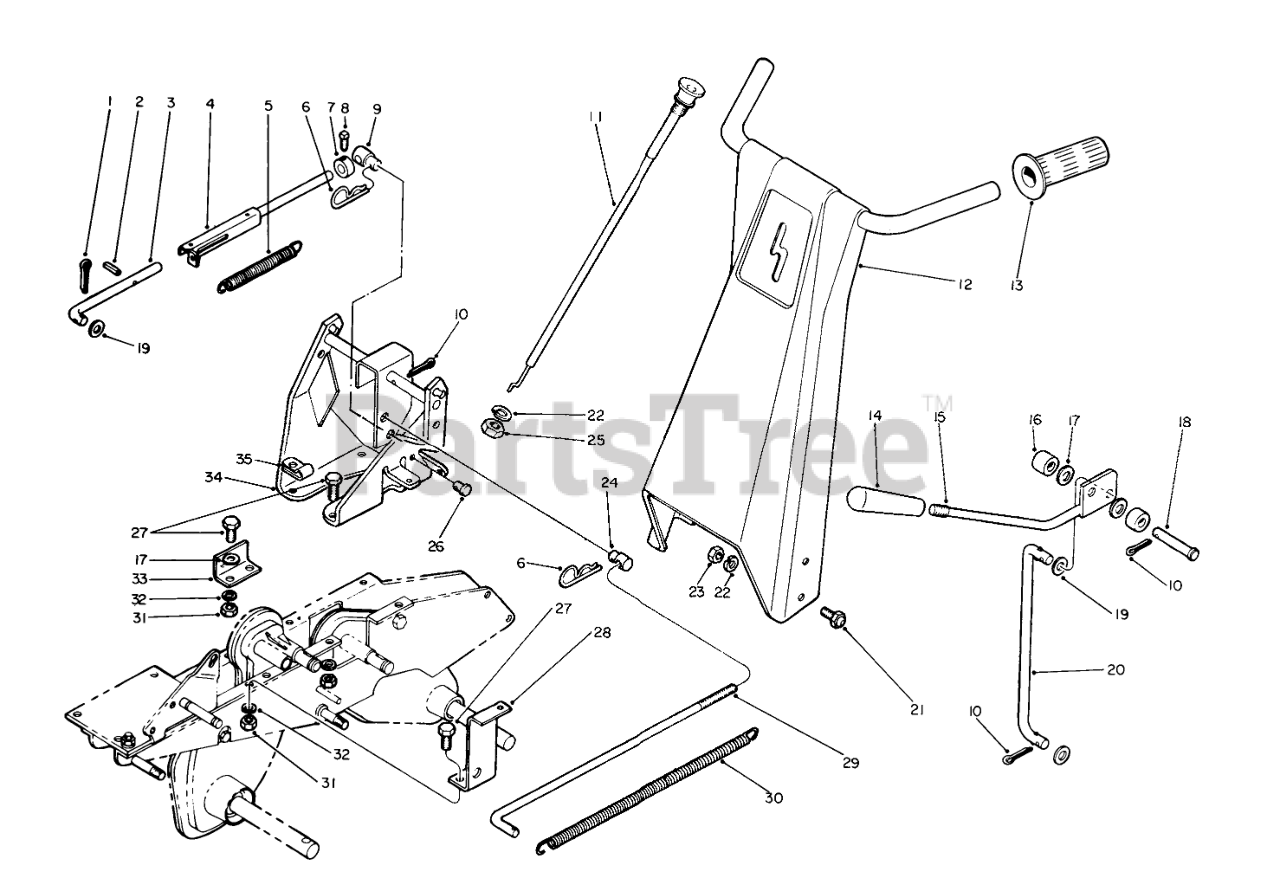

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

2

Toro 32121-2

PIN-ROLL, SLOTTED

$0.99

$

In Stock, Qty 9

0

3

Toro 48-0420

Tine Drive Link
(Superseded to 702587)

$

$

Not available

4

Toro 48-0540

Rear Tine Drive Link
(Superseded to 740907)

$

$

Not available

5

Toro 48-0550

Spring
(Superseded to 702585)

$

$

Not available

6

Toro 47-7790

Spring Clip
(Superseded to 146428)

$

$

Not available

7

Toro 48-0240

Stop Collar
(Superseded to 702588)

$

$

Not available

8

Toro 47-8810

Square Hd. Setscrew
(Superseded to 700821)

$

$

Not available

9

Toro 48-0410

Trunnion
(Superseded to 705876)

$10.99

$

Usually ships in 3-6 days

0

10

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

11

Toro 47-7850

Throttle Control
(Superseded to 740905)

$

$

Not available

12

Toro 48-1060

Handle w/Decal

$

$

Not available

13

Toro 48-1130

Grip
(Superseded to 706342)

$

$

Not available

14

Toro 47-7870

Knob
(Superseded to 703246)

$10.99

$

In Stock, only 3 left!

0

15

Toro 48-0480

Clutch Handle
(Superseded to 743161)

$

$

Not available

16

Toro 47-8210

Rubber Disc
(Superseded to 700154)

$

$

Not available

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 47-8220

Clevis Pin
(Superseded to 701448)

$

$

Not available

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 48-1090

Control Link

$

$

Not available

21

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 13

0

24

Toro 48-0400

Trunnion
(Superseded to 705875)

$

$

Not available

25

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

26

Toro 48-0560

Clevis Pin
(Superseded to 146319)

$2.99

$

Usually ships in 3-6 days

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 48-0460

Bracket
(Superseded to 740442)

$

$

Not available

29

Toro 48-0440

Wheel Drive Link
(Superseded to 702602)

$

$

Not available

30

Toro 48-0450

Spring-Wheel Drive
(Superseded to 702586)

$

$

Not available

31

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

32

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 48-0490

Pivot Bracket
(Superseded to 701459)

$

$

Not available

34

Toro 48-0470

Handle Support
(Superseded to 740455)

$

$

Not available

35

Toro 47-9680

Cable Clamp
(Superseded to 2412-67)

$

$

Not available
