581538001 - Husqvarna Tow-Behind Sweeper (2013-02) PRODUCT COMPLETE Parts Diagram

Tow-Behind Sweeper

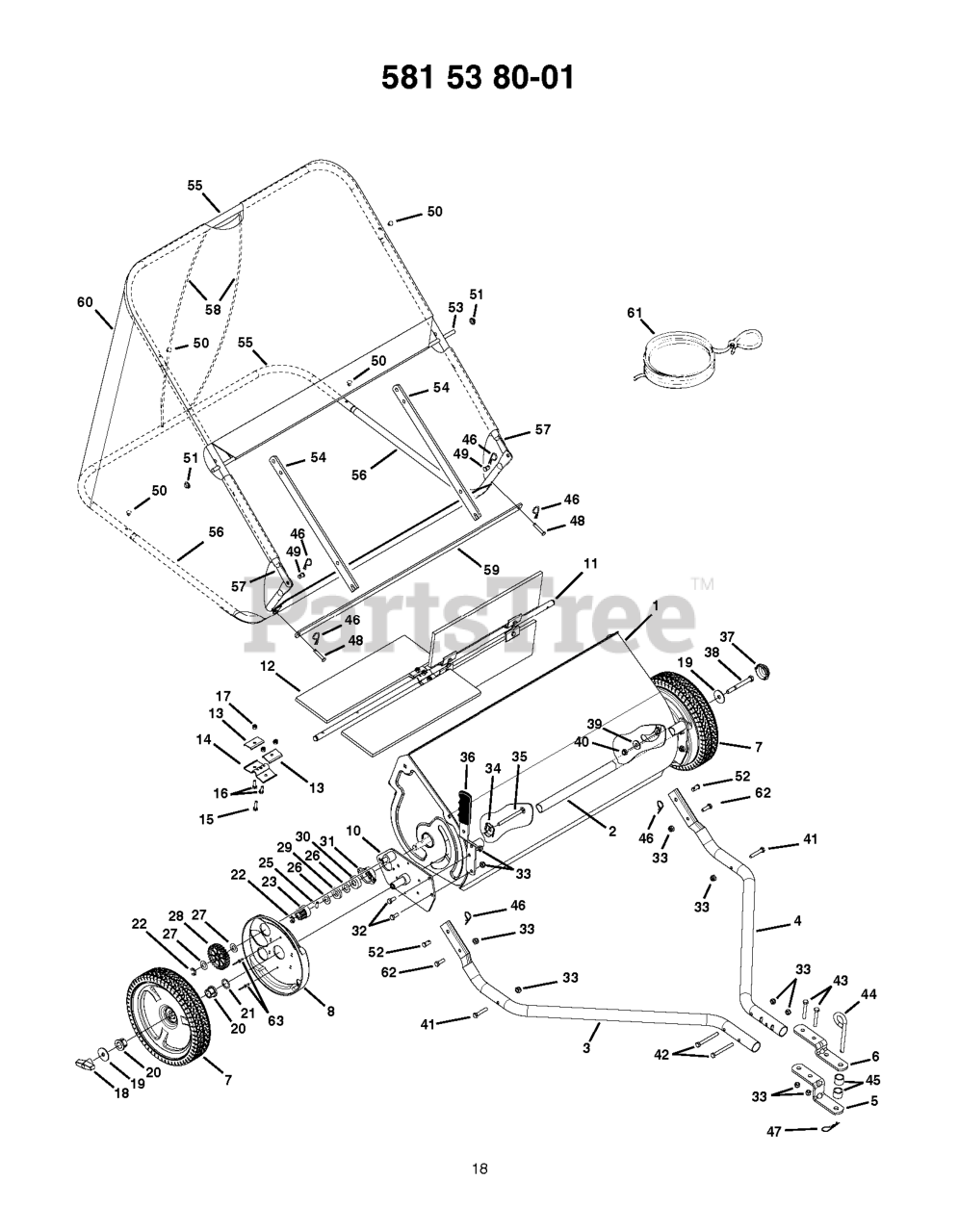

PRODUCT COMPLETE Parts Diagram

  • Title

22

Husqvarna 522657001

NEEDS DESCRIPTION

$

$

Currently unavailable

42

Husqvarna 531002834

Bolt, Hex 5/16-18 x 3" Lg.

$

$

Not available

34

Husqvarna 581737301

RETAINER

$

$

Not available

57

Husqvarna 522592201

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 581737101

SPACER

$

$

Not available

5

Husqvarna 506621201

HITCH BRACKET

$

$

Not available

40

Husqvarna 522760901

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 531007626

BOLT

$

$

Not available

23

Husqvarna 580741401

PINION

Note: Gear, Pinion R.H.

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 531002740

BEARING

$8.99

$

Usually ships in 3-10 days

0

54

Husqvarna 531007423

ARM

$

$

Not available

4

Husqvarna 531007411

ROD

$

$

Not available

59

Husqvarna 531007614

STRAP

$

$

Not available

38

Husqvarna 506623301

HEX BOLT
(Superseded to 874610652)

$

$

Not available

21

Husqvarna 531002741

Washer, Flat 1-1/8" x .78" x .025"

$

$

Not available

16

Husqvarna 522759301

BOLT

$

$

Not available

50

Husqvarna 531007683

PLUG

$

$

Not available

52

Husqvarna 531004638

PIN

$

$

Not available

10

Husqvarna 581736801

BRACKET

Note: Wheel Drive Assembly, R.H.

$

$

Not available

49

Husqvarna 531007685

PIN

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna 531007409

ROD

$

$

Not available

53

Husqvarna 531007424

ROD

$

$

Not available

14

Husqvarna 506620601

BRUSHRETAINER DOUBLE

$10.99

$

Usually ships in 3-10 days

0

43

Husqvarna 531002835

SCREW

$

$

Not available

12

Husqvarna 531007420

BRUSH

$

$

Not available

62

Husqvarna 531007426

BOLT

$

$

Not available

8

Husqvarna 581736601

DUST COVER

$

$

Not available

24

Husqvarna 580741501

PINION

Note: Gear, Pinion L.H.

$

$

Not available

39

Husqvarna 581737601

SPACER

$

$

Not available

51

Husqvarna 531002840

NUT

$1.99

$

Usually ships in 3-10 days

0

33

Husqvarna 501021101

NUT

$

$

Not available

18

Husqvarna 506626001

Knob, Wing 5/16-18 Thread

$

$

Not available

41

Husqvarna 531002838

SCREW
(Superseded to 522751501)

$

$

Not available

36

Husqvarna 506626401

Rubber Grip

$

$

Not available

56

Husqvarna 522592101

NEEDS DESCRIPTION

$

$

Currently unavailable

58

Husqvarna 506624401

HOPPER SUPPORT ROD

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 581736701

BRACKET

Note: Wheel Drive Assembly, L.H.

$

$

Not available

19

Husqvarna 522760801

WASHER

$

$

Not available

48

Husqvarna 531007684

PIN

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 522592401

NEEDS DESCRIPTION

$

$

Currently unavailable

28

Husqvarna 581737001

GEAR

$7.99

$

Usually ships in 3-10 days

0

60

Husqvarna 531007668

HOPPER BAG 32"

$

$

Not available

6

Husqvarna 531002772

Bracket, Hitch

$

$

Not available

35

Husqvarna 581737401

BOLT

$

$

Not available

7

Husqvarna 581736501

NEEDS DESCRIPTION

$

$

Currently unavailable

61

Husqvarna 531002734

ROPE

$

$

Not available

13

Husqvarna 506620701

BRUSH RETAINER SINGLE

$

$

Not available

30

Husqvarna 531002817

BALL BEARING
(Superseded to 601002178)

$

$

Not available

17

Husqvarna 504066001

NUT

$

$

Not available

63

Husqvarna 522756101

NEEDS DESCRIPTION

$

$

Currently unavailable

37

Husqvarna 581737501

NEEDS DESCRIPTION

$

$

Currently unavailable

44

Husqvarna 506625601

Pin, Hitch

$

$

Not available

2

Husqvarna 581831701

NEEDS DESCRIPTION

$

$

Currently unavailable

47

Husqvarna 580744401

NEEDS DESCRIPTION

$

$

Currently unavailable

32

Husqvarna 522759901

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 531007650

DOWEL PIN

$

$

Not available

45

Husqvarna 506626501

Hitch Adjustment Tube

$

$

Not available

31

Husqvarna 581737201

RETAINER

$

$

Not available

27

Husqvarna 506623601

Washer, 1/2" x 1" x .02"

$

$

Not available

26

Husqvarna 577158601

NEEDS DESCRIPTION

$

$

Currently unavailable

46

Husqvarna 531002843

Pin, Hair Cotter 3/32" #3

$

$

Not available

11

Husqvarna 581831801

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 581831601

NEEDS DESCRIPTION

$

$

Currently unavailable
