58160 - Toro 18" Tiller (SN: 003000001 - 003999999) (1983) WHEEL AND TINE ASSEMBLY Parts Diagram

18" Tiller

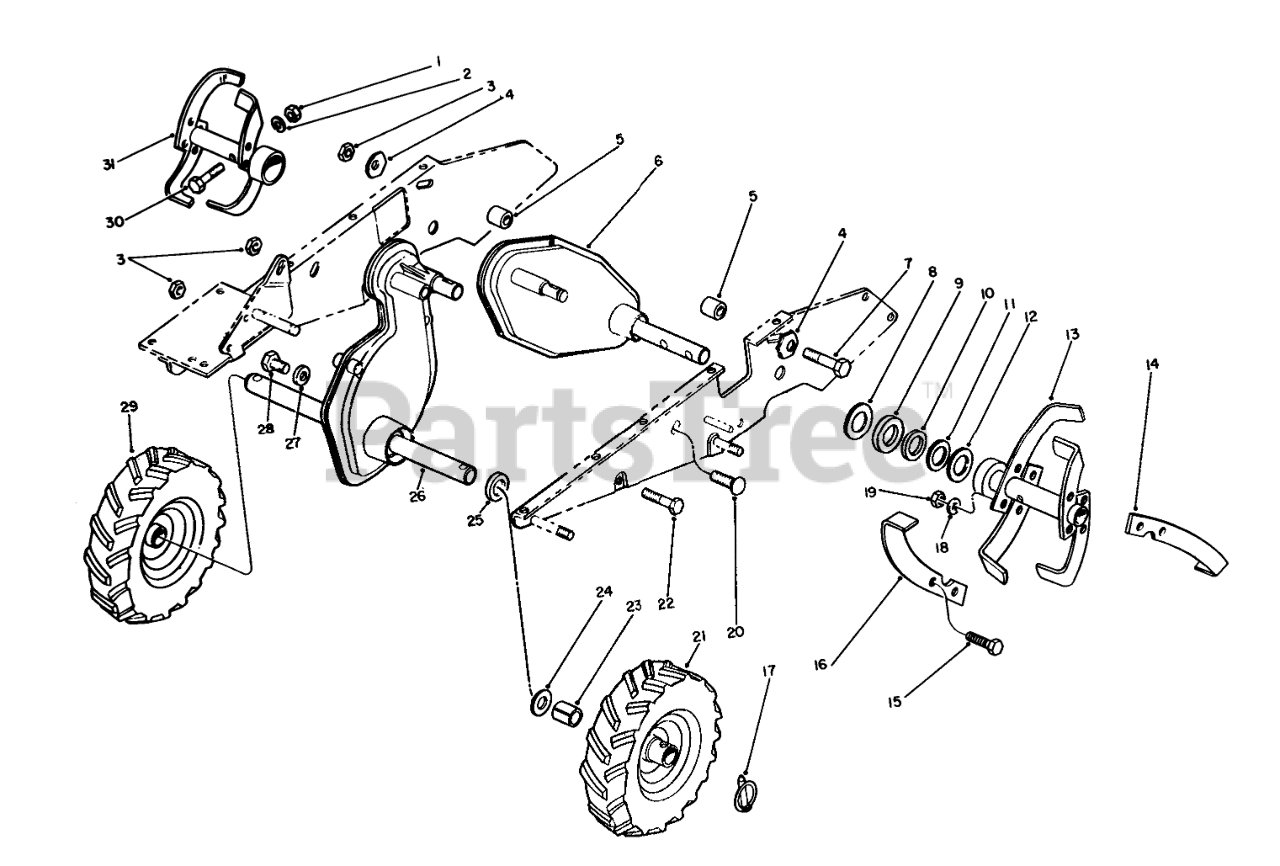

WHEEL AND TINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

2

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

4

Toro 47-8310

Pyramidal Lockwasher
(Superseded to 701297)

$

$

Not available

5

Toro 49-3830

Spacer

$

$

Currently unavailable

6

Toro 48-1270

Chain Case Assy.-Tine Drive
(Superseded to 742739)

$

$

Not available

7

Toro 47-8940

Hex Hd. Capscrew

$

$

Not available

8

Toro 47-9670

Washer
(Superseded to 701791)

$9.99

$

In Stock, only 2 left!

0

9

Toro 47-7780

Felt Seal
(Superseded to 701778)

$7.49

$

In Stock, only 2 left!

0

10

Toro 47-8100

Felt Seal
(Superseded to 701779)

$6.99

$

In Stock, Qty 20+

0

11

Toro 47-8050

Washer
(Superseded to 70-1790)

$

$

Not available

12

Toro 47-8060

Felt Seal
(Superseded to 701780)

$

$

Not available

13

Toro 48-0840

Tine Assembly-L.H.
(Superseded to 744235)

$

$

Not available

14

Toro 48-0810

Tine-R.H.
(Superseded to 702360)

$50.99

$

In Stock, only 4 left!

0

15

Toro 47-7980

Tine Bolt
(Superseded to 703449)

$

$

Not available

16

Toro 48-0820

Tine-L.H.
(Superseded to 702361)

$

$

Not available

17

Toro 47-8280

Kilk Pin
(Superseded to 740889)

$

$

Not available

18

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 3219-4

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

20

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

21

Toro 48-0890

Tire & Wheel Assy.-L.H.

$

$

Not available

22

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

23

Toro 48-0900

Spacer-Wheel-Long
(Superseded to 702584)

$

$

Not available

24

Toro 47-8300

Washer
(Superseded to 701012)

$13.99

$

Usually ships in 3-6 days

0

25

Toro 47-8260

Seal
(Superseded to 700123)

$36.99

$

Usually ships in 3-6 days

0

26

Toro 48-1250

Chain Case Assembly-Wheel Drive
(Superseded to 742715)

$

$

Not available

27

Toro 47-8760

Nylon Washer
(Superseded to 701402)

$

$

Not available

28

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

29

Toro 48-0880

Tire & Wheel Assy.-R.H.

$

$

Not available

30

Toro 47-8860

Capscrew
(Superseded to 146256)

$

$

Not available

31

Toro 48-0830

Assembly-R.H.
(Superseded to 744234)

$

$

Not available
