58170 - Toro 22" Tiller (SN: 003000001 - 003999999) (1983) CHAIN CASE ASSEMBLY NO. 48-0800 Parts Diagram

22" Tiller

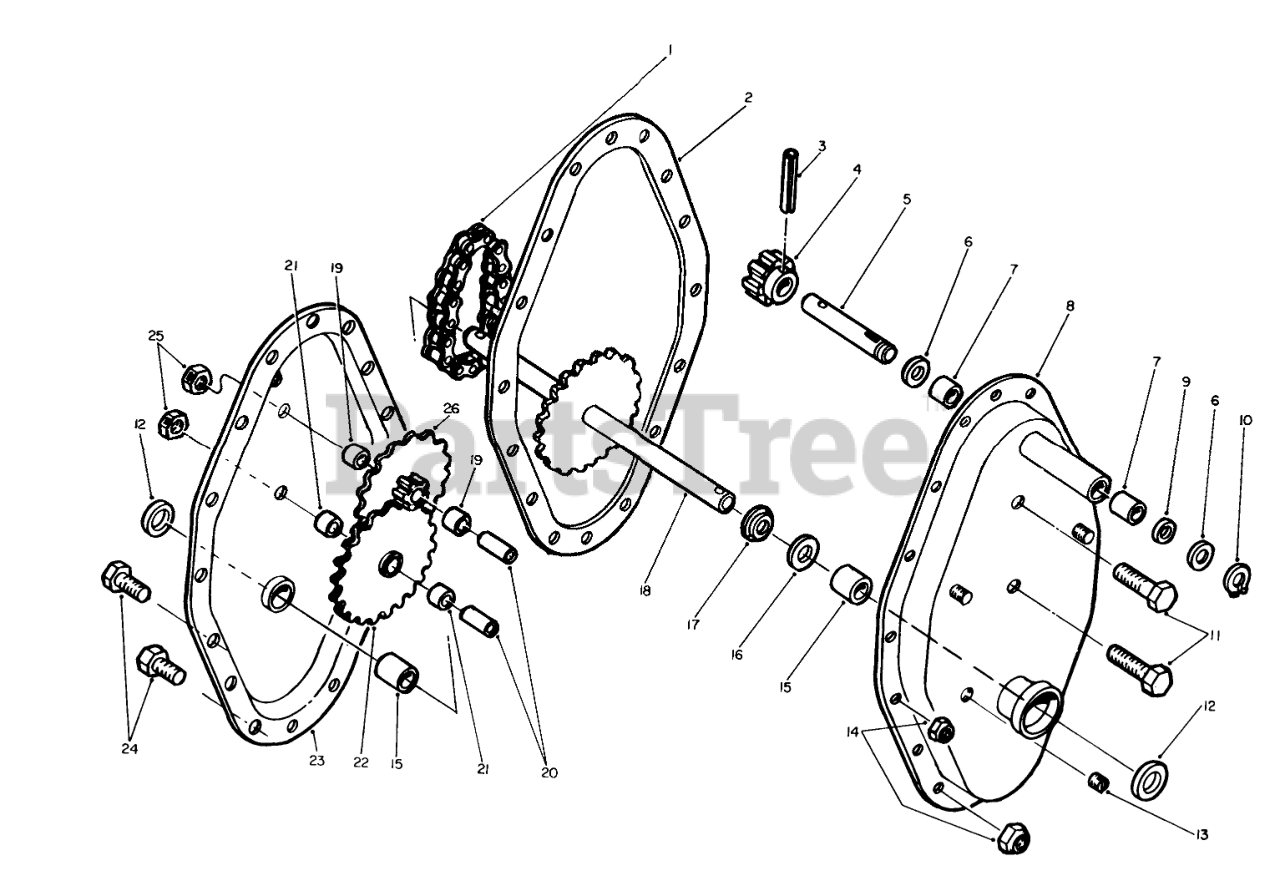

CHAIN CASE ASSEMBLY NO. 48-0800 Parts Diagram

  • Title

1

Toro 47-9860

Chain
(Superseded to 705493)

$

$

Not available

2

Toro 47-9570

Gasket
(Superseded to 701799)

$

$

Not available

3

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

4

Toro 47-9810

Input Gear
(Superseded to 705489)

$

$

Not available

5

Toro 47-9800

Input Shaft

$

$

Not available

6

Toro 47-8110

Washer
(Superseded to 700317)

$6.99

$

In Stock, only 1 left!

0

7

Toro 47-7900

Bearing-Input Shaft
(Superseded to 1518)

$33.99

$

Usually ships in 3-6 days

0

8

Toro 47-9790

Chain Case w/Bearings-L.H.

$

$

Not available

9

Toro 47-8030

Seal-Input Shaft
(Superseded to 703333)

$

$

Not available

10

Toro 32120-64

RING-SNAP, EXTERNAL

$3.99

$

In Stock, only 1 left!

0

11

Toro 47-8850

Hex Hd. Capscrew

$

$

Not available

12

Toro 47-7770

Seal
(Superseded to 700414)

$14.99

$

In Stock, only 3 left!

0

13

Toro 285-10

Plug

$

$

Currently unavailable

14

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

15

Toro 47-9550

Bearing
(Superseded to 701891)

$

$

Not available

16

Toro 47-8780

Shim-Gear
(Superseded to 701845)

$

$

Not available

17

Toro 47-9640

Spacer Cup
(Superseded to 701787)

$24.99

$

In Stock, only 1 left!

0

18

Toro 48-0740

Axle Shaft
(Superseded to 741715)

$

$

Not available

19

Toro 47-8350

Bearing
(Superseded to 701848)

$

$

Not available

20

Toro 47-9820

Idler Sleeve
(Superseded to 705490)

$24.99

$

Usually ships in 3-6 days

0

21

Toro 47-8370

Bearing
(Superseded to 704559)

$

$

Not available

22

Toro 47-9840

Sprocket (Incl. Ref. #21)

$

$

Not available

23

Toro 47-9780

Chain Case w/Bearings-R.H.
(Superseded to 741267)

$

$

Not available

24

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

25

Toro 47-8190

Jam Nut
(Superseded to 703609)

$

$

Not available

26

Toro 47-9830

Gear (Incl. Ref. #19)

$

$

Not available
