58170 - Toro 22" Tiller (SN: 003000001 - 003999999) (1983) DRIVE BELT ASSEMBLY Parts Diagram

22" Tiller

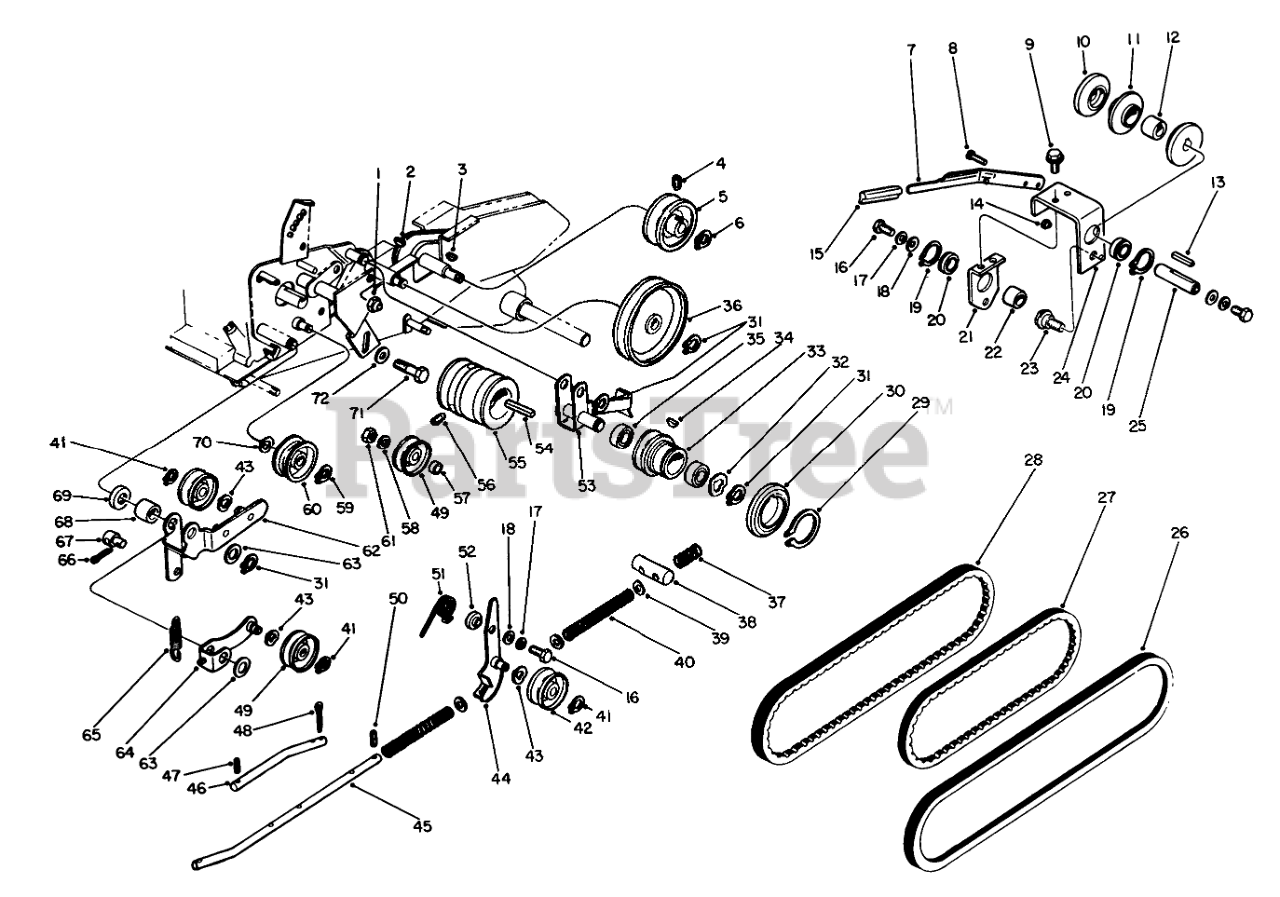

DRIVE BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

2

Toro 48-1160

Key-Woodruff

$

$

Not available

3

Toro 49-3820

Key

$

$

Currently unavailable

4

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 47-7670

Pulley-Tine Drive
(Superseded to 705517)

$

$

Not available

6

Toro 47-9580

Retaining Ring
(Superseded to 701786)

$1.99

$

Usually ships in 3-6 days

0

7

Toro 48-0790

Handle-Speed Adjustment
(Superseded to 743188)

$

$

Not available

8

Toro 47-8730

Machine Screw

$

$

Not available

9

Toro 48-0530

Thread Forming Screw
(Superseded to 700093)

$

$

Not available

10

Toro 48-0590

Fixed Sheave
(Superseded to 705906)

$

$

Not available

11

Toro 48-0610

Sliding Sheave
(Superseded to 743681)

$

$

Not available

12

Toro 48-0600

Spacer-Sheave
(Superseded to 705907)

$

$

Not available

13

Toro 47-8950

Key-Square

$

$

Not available

14

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0

15

Toro 48-0040

Grip

$

$

Not available

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 47-7840

Retaining Ring
(Superseded to 32120-84)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 47-8240

Bearing
(Superseded to 741022)

$

$

Not available

21

Toro 48-0700

Bracket
(Superseded to 705915)

$

$

Not available

22

Toro 48-0650

Spacer
(Superseded to 705910)

$

$

Not available

23

Toro 48-0390

Shoulder Bolt
(Superseded to 700964)

$

$

Not available

24

Toro 48-0730

Pivot Bracket

$

$

Not available

25

Toro 48-0680

Idler Shaft
(Superseded to 705913)

$

$

Not available

26

Toro 48-0750

Traction Drive Belt
(Superseded to 705920)

$

$

Not available

27

Toro 47-9960

Belt-Reverse
(Superseded to 705507)

$

$

Not available

28

Toro 47-9970

Tine Drive Belt
(Superseded to 705509)

$34.99

$

Usually ships in 3-6 days

0

29

Toro 48-0080

Retaining Ring
(Superseded to 705518)

$

$

Not available

30

Toro 47-9980

Drive Ring Assembly
(Superseded to 742908)

$

$

Not available

31

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 17

0

32

Toro 47-8150

Wave Washer
(Superseded to 702545)

$

$

Not available

33

Toro 47-9990

Drive Pulley-Reverse
(Superseded to 705511)

$

$

Not available

34

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

35

Toro 47-8250

Bearing
(Superseded to 700079)

$

$

Not available

36

Toro 48-0070

Pulley-Traction Drive
(Superseded to 705516)

$144.99

$

Usually ships in 3-6 days

0

37

Toro 47-8160

Spring
(Superseded to 704306)

$

$

Not available

38

Toro 47-9030

Swivel
(Superseded to 702543)

$

$

Not available

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 47-9330

Spring-Traction Drive
(Superseded to 702536)

$

$

Not available

41

Toro 47-7810

Retaining Ring

$

$

Not available

42

Toro 47-7650

Idler-Drive
(Superseded to 742913)

$

$

Not available

43

Toro 48-0140

Wave Washer
(Superseded to 705527)

$

$

Not available

44

Toro 48-0030

Idler Arm-Tine Drive
(Superseded to 742910)

$

$

Not available

45

Toro 48-0620

Rod-Clutch

$

$

Not available

46

Toro 47-9940

Rod Reverse
(Superseded to 705499)

$

$

Not available

47

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

48

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

49

Toro 47-7640

Idler-Reverse
(Superseded to 742912)

$

$

Not available

50

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

51

Toro 48-0180

Spring
(Superseded to 702589)

$41.99

$

Usually ships in 3-6 days

0

52

Toro 48-0150

Pivot Bushing
(Superseded to 705528)

$14.99

$

Usually ships in 3-6 days

0

53

Toro 48-0020

Arm-Reverse
(Superseded to 742909)

$

$

Not available

54

Toro 47-8890

Key-Square

$

$

Not available

55

Toro 48-0580

Engine Pulley
(Superseded to 705905)

$

$

Not available

56

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

57

Toro 48-0760

Spacer-Drive Idler
(Superseded to 705921)

$

$

Not available

58

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

59

Toro 47-8120

Retaining Ring
(Superseded to 700319)

$

$

Not available

60

Toro 47-7660

Idler-Flat
(Superseded to 703398)

$

$

Not available

61

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 14

0

62

Toro 48-0630

Idler Arm-Forward
(Superseded to 743187)

$

$

Not available

63

Toro 47-7940

Washer
(Superseded to 700162)

$

$

Not available

64

Toro 48-0010

Idler Arm-Reverse
(Superseded to 705512)

$

$

Not available

65

Toro 48-0060

Spring-Reverse
(Superseded to 705515)

$20.99

$

Usually ships in 3-6 days

0

66

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

67

Toro 48-0640

Trunnion

$

$

Not available

68

Toro 48-1150

Spacer-Idler Arm

$

$

Not available

69

Toro 48-0050

Spacer-Cup
(Superseded to 700816)

$

$

Not available

70

Toro 48-0160

Wave Washer
(Superseded to 700793)

$

$

Not available

71

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

72

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
