58200 - Toro 26" Tiller (SN: 009000001 - 009999999) (1969) Engine Model No. H50-65067h Parts List Parts Diagram

26" Tiller

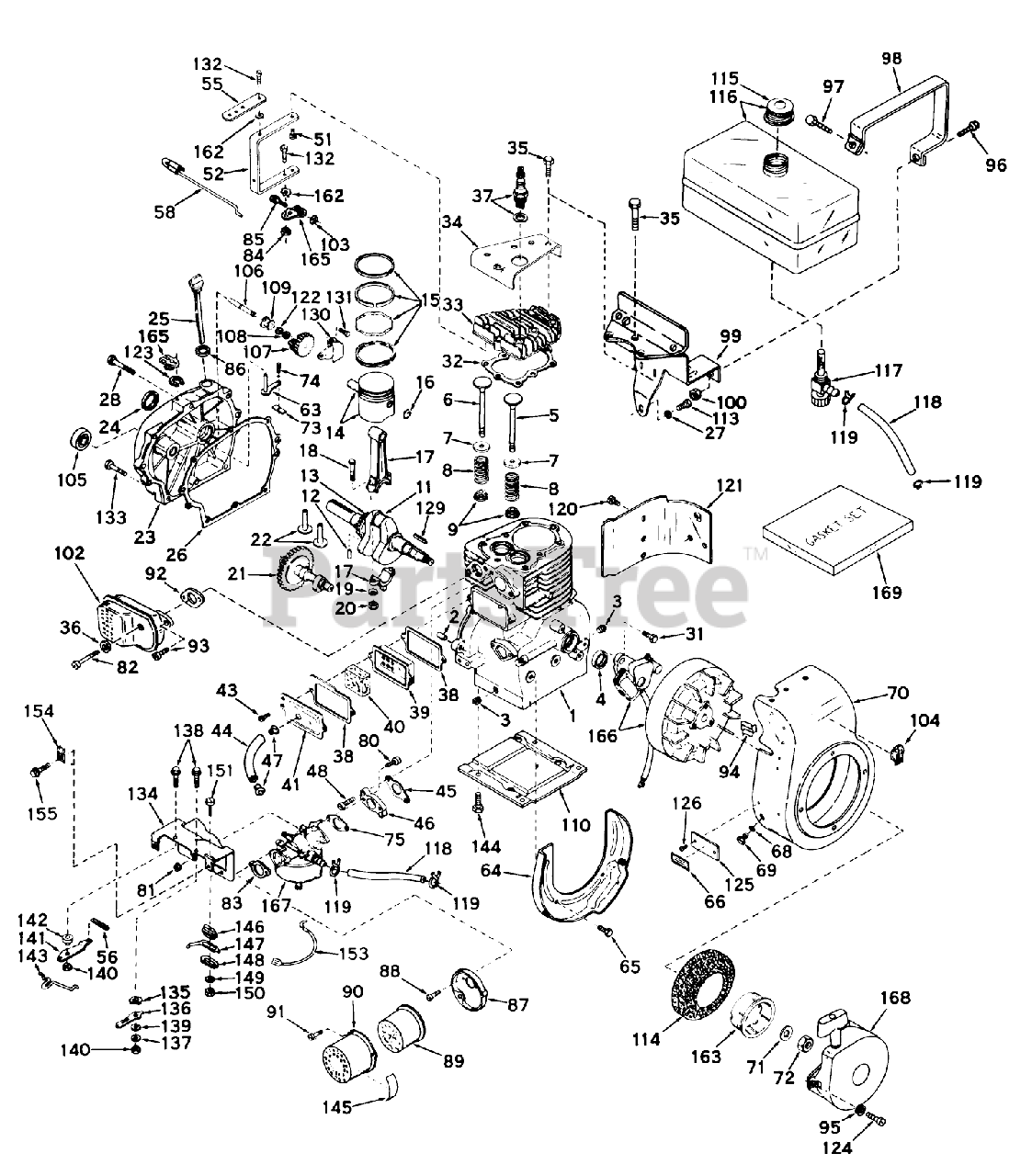

Engine Model No. H50-65067h Parts List Parts Diagram

  • Title

1

Toro 31659

Cylinder Assy. (Incl. Nos. 2, 3 4)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 27876B

Seal, Oil

Note: Included In Gasket Set Num 31382

$

$

Currently unavailable

5

Toro 27877A

Valve, Intake (Std.)(Incl. No. 9)

$

$

Currently unavailable

5

Toro 27879A

Valve, Intake (1 /32" oversize)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

11

Toro 30543

Crankshaft Assy. (Incl. Nos. 12 13)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

14

Toro 30662

Piston Pin Assy., Std., (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 30663

Piston Pin Assy., .010 oversize (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 30664

Piston Pin Assy., .020 oversize (Incl. 2 of No. 16)

$

$

Currently unavailable

15

Toro 28935

Ring Set (Standard)

$

$

Currently unavailable

15

Toro 28936

Ring Set (.010 Oversize)

$

$

Currently unavailable

15

Toro 28937

Ring Set (.020 Oversize)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 31295A

Rod As sy. (Incl. Nos. 18, 19 20)

$

$

Currently unavailable

18

Toro 21718

Bolt, Connecting Rod

$

$

Currently unavailable

19

Toro 26073

Washer

$

$

Currently unavailable

20

Toro 28264

Nut

$

$

Currently unavailable

21

Toro 32272

Camshaft

$

$

Currently unavailable

22

Toro 27893

Lifter Valve

$

$

Currently unavailable

23

Toro 31720

Cover Cylinder (Incl. Nos. 24, 105 106)

$

$

Currently unavailable

24

Toro 28427

Oil Seal

Note: Included In Gasket Set Num 31382

$

$

Currently unavailable

25

Toro 31297

Dipstick, Oil (Incl. No. 30)

$

$

Not available

26

Toro 30684

Gasket-Cover, Cylinder

Note: Included In Gasket Set Num 31382

$

$

Currently unavailable

27

Toro 8303

Lockwasher

$

$

Currently unavailable

28

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 28938B

Gasket-Head, Cylinder

Note: Included In Gasket Set Num 31382

$

$

Currently unavailable

33

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

34

Toro 30939

Cover, Cylinder head

$

$

Currently unavailable

35

Toro 28261

Screw

$

$

Currently unavailable

36

Toro 26073

Washer

$

$

Currently unavailable

37

Toro 21943

SPARK PLUG

$

$

Currently unavailable

38

Toro 27896

Gasket-Breather

Note: Included In Gasket Set Num 31382

$

$

Currently unavailable

39

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

40

Toro 28424

Element-Breather

$

$

Currently unavailable

41

Toro 28425

Cover-Valve

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 32447

Breather Tube

$

$

Currently unavailable

45

Toro 27915

Gasket-Intake

Note: Included In Gasket Set Num 31382

$

$

Currently unavailable

46

Toro 30195A

Flange, Carburetor (Incl. Nos. 77 80)

$

$

Currently unavailable

47

Toro 32446

GROMMET

$

$

Currently unavailable

48

Toro 30196

Screw

$

$

Currently unavailable

51

Toro 30319

Rivet, Split

$

$

Currently unavailable

52

Toro 31709

Lever, Governor
(Superseded to 704630)

$

$

Not available

55

Toro 30205

See Supercession: 113633-03
(Superseded to 113633-03)

$147.99

$

Usually ships in 3-6 days

0

56

Toro 30826

Spring, Extension

$

$

Currently unavailable

58

Toro 30824

Link, Governor to Throttle

$

$

Currently unavailable

63

Toro 30699A

ROD ASSY, Governor

$

$

Currently unavailable

64

Toro 29536

Baffle Blower Housing

$

$

Currently unavailable

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

66

Toro 30586

Decal, Instruction

$

$

Currently unavailable

68

Toro 8274

Lockwasher

$

$

Currently unavailable

69

Toro 29747

Screw

$

$

Currently unavailable

70

Toro 31293

Housing, Blower

$

$

Currently unavailable

71

Toro 650490

Washer

$

$

Currently unavailable

72

Toro 8116

DISCONTINUED

$

$

Not available

73

Toro 30700

Yoke-Governor

$

$

Currently unavailable

74

Toro 650494

Screw (6-40x5/16)

$

$

Currently unavailable

75

Toro 31688

Gasket-Carburetor
(Superseded to 704627)

Note: Included In Gasket Set Num 31382

$

$

Not available

80

Toro 650572

Screw

$

$

Currently unavailable

81

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

82

Toro 6023

Screw

$

$

Currently unavailable

83

Toro 27272

Gasket

Note: Included In Gasket Set Num 31382

$

$

Currently unavailable

84

Toro 30322

Nut-Lock

$

$

Currently unavailable

85

Toro 29826

Screw

$

$

Currently unavailable

86

Toro 29673

Gasket

Note: Included In Gasket Set Num 31382

$

$

Currently unavailable

87

Toro 31708

BRACKET, AIRCLEANER

$

$

Currently unavailable

88

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

89

Toro 31700

AIRCLEANER
(Superseded to 704629)

$

$

Not available

90

Toro 31692

Body

$

$

Currently unavailable

91

Toro 650152

Screw

$

$

Currently unavailable

92

Toro 27930

Gasket Exhaust

Note: Included In Gasket Set Num 31382

$

$

Currently unavailable

93

Toro 30196

Screw

$

$

Currently unavailable

94

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

95

Toro 650168

Washer

$

$

Currently unavailable

96

Toro 6202

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

97

Toro 29212

Screw

$

$

Currently unavailable

98

Toro 31697

Strap, Fuel Tank
(Superseded to 742359)

$179.99

$

In Stock, only 2 left!

0

99

Toro 31694

BRACKET, FUEL TANK

$

$

Currently unavailable

100

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

102

Toro 32401

Muffler

$

$

Currently unavailable

103

Toro 29216

Nut-Lock

$

$

Currently unavailable

104

Toro 31325

Decal, Name H.P.

$

$

Currently unavailable

105

Toro 28926

Seal, Oil

$

$

Currently unavailable

106

Toro 31845

Shaft-Governor
(Superseded to 704636)

$

$

Not available

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

110

Toro 29538

Base Engine

$

$

Currently unavailable

113

Toro 29715

Screw

$

$

Currently unavailable

114

Toro 590417

Screen, Air

$

$

Currently unavailable

115

Toro 32387

CAP

$

$

Currently unavailable

116

Toro 31301

Tank, Fuel (Incl. No. 115)

$

$

Currently unavailable

117

Toro 29683

Fitting Shut-off, Fuel

$

$

Currently unavailable

118

Toro 30705

Line-Fuel

$

$

Currently unavailable

119

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 30622

Emnsion, Blower Housing

$

$

Currently unavailable

122

Toro 30590A

Washer-Flat

$

$

Currently unavailable

123

Toro 29642

Ring-Retaining

$

$

Currently unavailable

124

Toro 30513

Screw

$

$

Currently unavailable

125

Toro 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

126

Toro 29309

DRIVE STUD

$

$

Currently unavailable

129

Toro 30884

Key, Flywheel

$

$

Currently unavailable

130

Toro 31843A

Bracket, Governor

$

$

Currently unavailable

131

Toro 28763

Screw (10-32 x 35/64)

$

$

Currently unavailable

132

Toro 650548

Screw

$

$

Currently unavailable

133

Toro 650493

Screw

$

$

Currently unavailable

134

Toro 30821

Bracket, Speed Control

$

$

Currently unavailable

135

Toro 28558

Washer

$

$

Currently unavailable

136

Toro 30314

Lever, Speed control

$

$

Currently unavailable

137

Toro 30369

Washer, Flat

$

$

Currently unavailable

138

Toro 30312

SCREW, HEX WASHER HD.

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$

$

Currently unavailable

139

Toro 30773

Bushing Control Lever

$

$

Currently unavailable

140

Toro 30529

Nut

Note: In original production rivets are used instead of the screws and nuts illustrated. Rivets can be removed and illustrated hardware used when replacing component parts.

$

$

Currently unavailable

141

Toro 30823

Lever, Bellcrank

$

$

Currently unavailable

142

Toro 29530

Bushing

$

$

Currently unavailable

143

Toro 30825

Link, RPM

$

$

Currently unavailable

144

Toro 650542

Screw

$

$

Currently unavailable

145

Toro 31871

DECAL, AIRCLEANER

$

$

Currently unavailable

146

Toro 30092

Washer, Insulating

$

$

Currently unavailable

147

Toro 30093

Terminal

$

$

Currently unavailable

148

Toro 30094

Washer, Insulating

$

$

Currently unavailable

149

Toro 30771

Washer, Flat

$

$

Currently unavailable

150

Toro 30095

Nut

$

$

Currently unavailable

151

Toro 30091

Screw, Hex Slotted Hd.

$

$

Currently unavailable

153

Toro 28468

Wire, Ground

$

$

Currently unavailable

154

Toro 27793

Conduit

$

$

Currently unavailable

155

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

162

Toro 29918

Washer-Lock

$

$

Currently unavailable

163

Toro 32125

Cup-Starter

$

$

Currently unavailable

165

Toro 29916

Clamp-Lever, Governor

$

$

Currently unavailable

166

Toro 610689A

Magneto

$

$

Currently unavailable

167

Toro 630994A

Carburetor

$

$

Currently unavailable

168

Toro 590420

Starter, Rewind

$

$

Currently unavailable

169

Toro 31382

Gasket Set
(Superseded to 701594)

$

$

Not available
