58231 - Toro 26" Tiller (SN: 004000001 - 004001269) (1974) Engine Model No. 130292 Type 0159-06 Briggs Stratton Parts Diagram

26" Tiller

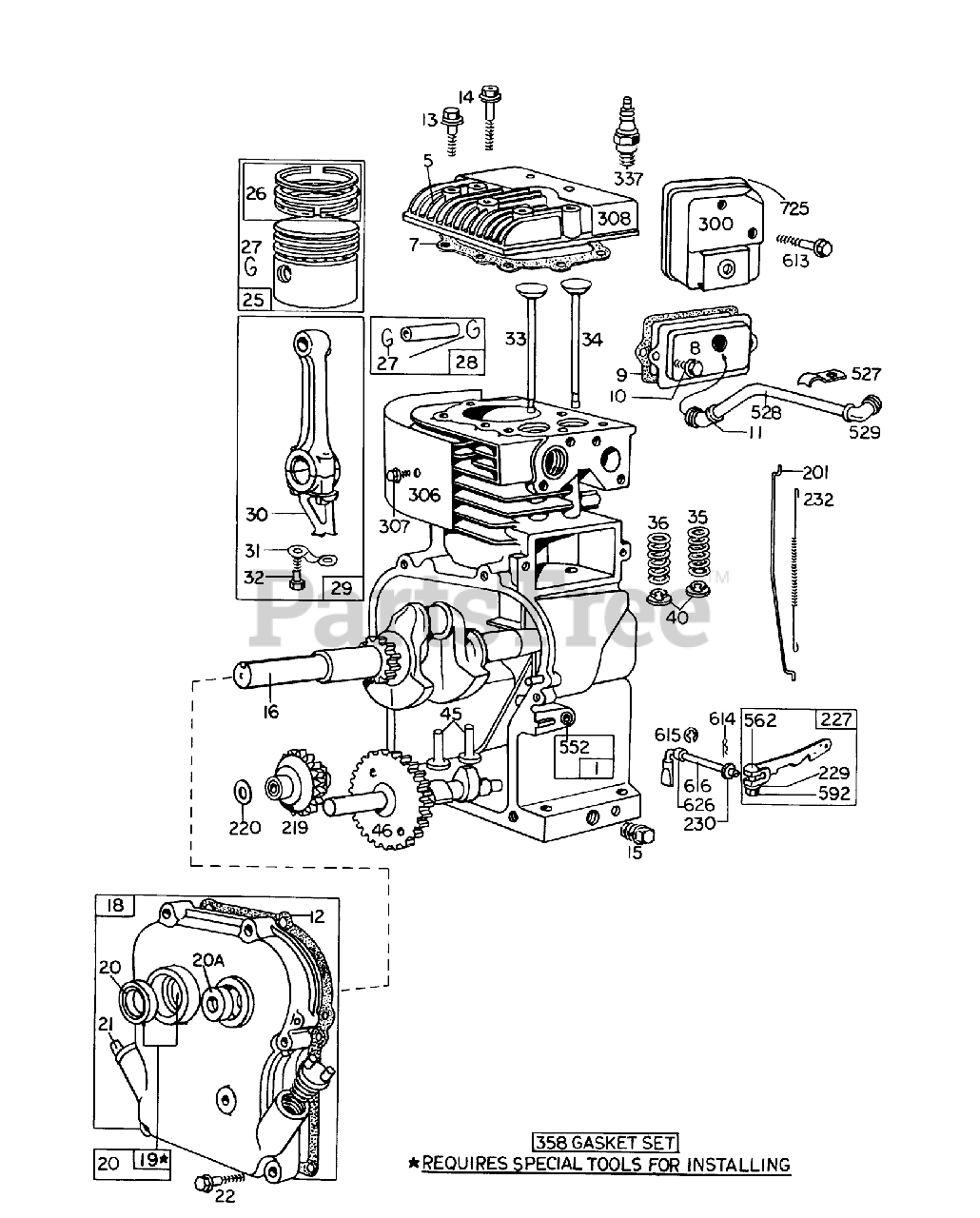

Engine Model No. 130292 Type 0159-06 Briggs Stratton Parts Diagram

  • Title

5

Toro 211542

Head-Cylinder

$

$

Currently unavailable

7

Toro 270383

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 297615.

$

$

Currently unavailable

8

Toro 294178

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part No. 297615.

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 66578

Grommet

$

$

Currently unavailable

12

Toro 270080

Gasket (.015"Std.)

Note: Included in Gasket Set-Part No. 297615.

$

$

Currently unavailable

Toro 270125

Gasket (.015")

$

$

Currently unavailable

Toro 270126

Gasket (.009")

$

$

Currently unavailable

13

Toro 93368

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93369

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91249

Plug-Pipe

$

$

Currently unavailable

16

Toro 260938

Crankshaft

$

$

Currently unavailable

18

Toro 298183

Cover Assy.-Crankcase

$

$

Currently unavailable

19

Toro 297603

Bushing-Crankcase Cover

$

$

Currently unavailable

20

Toro 294606

Seal-Oil

$

$

Currently unavailable

20A

Toro 298041

Seal-Oil

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

25

Toro 298904

Piston Assy.-Std.

$

$

Currently unavailable

Toro 298905

Piston Assy.-010"O.S.

$

$

Currently unavailable

Toro 298906

Piston Assy.-020"O.S.

$

$

Currently unavailable

Toro 298907

Piston Assy. .030" O.S.

$

$

Currently unavailable

26

Toro 298982

Ring Set (Std.)

$

$

Currently unavailable

Toro 298983

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 298984

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 298985

Lock-Piston Pin

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 299430

Rod Assy.-Connecting

$

$

Currently unavailable

30

Toro 221890

Dipper-Conn. Rod

$

$

Currently unavailable

31

Toro 221876

Lock

$

$

Not available

32

Toro 92296

Screw, Conn.Rod

$

$

Currently unavailable

33

Toro 211119

Valve Exhaust

$

$

Currently unavailable

34

Toro 261044

Valve-Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 260642

Tappet-Valve

$

$

Currently unavailable

46

Toro 211618

Gear-Cam

$

$

Currently unavailable

201

Toro 260661

Link-Governor

$

$

Currently unavailable

219

Toro 297656

Gear-Governor

$

$

Currently unavailable

220

Toro 221551

Washer-Thrust

$

$

Currently unavailable

227

Toro 297601

Lever Assy.-Governor

$

$

Currently unavailable

229

Toro 220680

Washer

$

$

Currently unavailable

230

Toro 221559

Clamp-Casing

$

$

Currently unavailable

232

Toro 260478

Spring-Governor Link

$

$

Currently unavailable

300

Toro 297506

Muffler-Exhaust

$

$

Currently unavailable

306

Toro 221511

Shield-Cylinder

$

$

Currently unavailable

307

Toro 93042

Screw

$

$

Currently unavailable

308

Toro 221512

Cover Cylinder Head

$

$

Currently unavailable

337

Toro 298809

Plug Spark

$

$

Currently unavailable

358

Toro 297615

Gasket Set

$

$

Currently unavailable

527

Toro 221514

Clamp, BreatherTube

$

$

Currently unavailable

528

Toro 230722

Condenser

$

$

Currently unavailable

529

Toro 67838

Grommet

$

$

Currently unavailable

552

Toro 230732

Bushing-Governor

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 90356

Nut

$

$

Currently unavailable

613

Toro 93377

Screw-Hex. Hd.

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 230723

Crank-Governor

$

$

Currently unavailable

626

Toro 230749

Spacer-Gov. Crank

$

$

Currently unavailable

725

Toro 221885

Heat Shield

$

$

Currently unavailable
