58235 - Toro 26" Tiller (SN: 005000001 - 005999999) (1975) Engine Tecumseh-Model Hs50-67089a Parts Diagram

26" Tiller

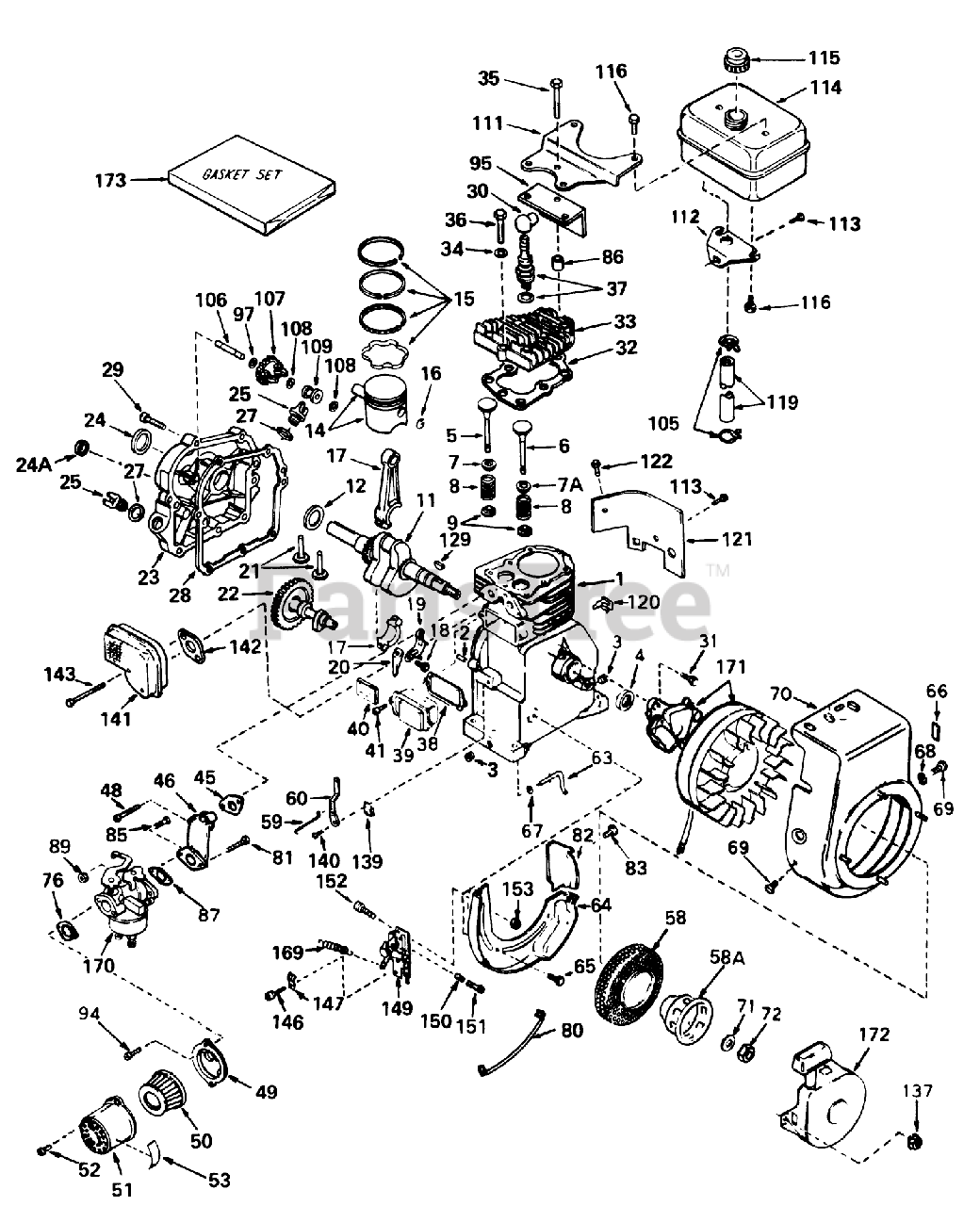

Engine Tecumseh-Model Hs50-67089a Parts Diagram

  • Title

1

Toro 33674

Cylinder Assy. (Incl. Nos.2, 34)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 32644

Valve, Intake (Standard) (Incl. Nos. 7, 9 10)

$

$

Currently unavailable

5

Toro 32645

Valve, Intake (1/32" Oversize) (Incl. Nos. 7, 9 10)

$

$

Currently unavailable

6

Toro 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

7A

Toro 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 33677

Crankshaft

$

$

Currently unavailable

12

Toro 32323

Washer-Thrust

$

$

Currently unavailable

14

Toro 33562

Piston Pin Assembly (Incl. 2 of No. 14)(Std.)

$

$

Currently unavailable

14

Toro 33563

Piston Pin Assembly (Incl. 2 of No. 14)(.010 Oversize)

$

$

Currently unavailable

14

Toro 33564

Piston Pin Assembly (Incl. 2 of No. 14)(.020 Oversize)

$

$

Currently unavailable

15

Toro 33567

Ring Set-Piston Std.

$

$

Currently unavailable

15

Toro 33568

Ring Set-Piston .010 oversize

$

$

Currently unavailable

15

Toro 33569

Ring Set-Piston .020 oversize

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 33661

Rod Assy., Connecting (Incl. Nos. 18 19)

$

$

Currently unavailable

18

Toro 32610

Connecting Rod Bolt

$

$

Currently unavailable

19

Toro 32609

Plate Lock

$

$

Currently unavailable

20

Toro 32654

Dipper-Oil

$

$

Currently unavailable

21

Toro 27241

Lifter-Valve

$

$

Currently unavailable

22

Toro 33696

Camshaft (Compression Release) (Extended)

$

$

Currently unavailable

23

Toro 32766A

Cover, Cylinder (Incl. Nos. 24, 24A, 25, 106 148)

$

$

Currently unavailable

24

Toro 27897

Seal-Oil

$

$

Currently unavailable

24A

Toro 30318

Seal, Oil

$

$

Currently unavailable

25

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

27

Toro 29673

Gasket

Note: Indicates items included in Gasket Set part no. 33683

$

$

Currently unavailable

28

Toro 27677

Gasket-Cylinder Cover

Note: Indicates items included in Gasket Set part no. 33683

$

$

Currently unavailable

29

Toro 30564

Screw

$

$

Currently unavailable

30

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 33554

Oil Fill Tube

Note: Indicates items included in Gasket Set part no. 33683

$

$

Currently unavailable

33

Toro 33016

Head Cylinder

$

$

Currently unavailable

34

Toro 26073

Washer

$

$

Currently unavailable

35

Toro 650694

Screw Hex Hd. Cap

$

$

Currently unavailable

36

Toro 6021

Screw

$

$

Currently unavailable

37

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

38

Toro 31619

Gasket Breather

Note: Indicates items included in Gasket Set part no. 33683

$

$

Currently unavailable

39

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

40

Toro 31410

Element-Breather

$

$

Currently unavailable

41

Toro 650128

Screw

$

$

Currently unavailable

45

Toro 33673

Gasket-Intake

Note: Indicates items included in Gasket Set part no. 33683

$

$

Currently unavailable

46

Toro 33666

Pipe, Intake

$

$

Currently unavailable

48

Toro 30646

Screw

$

$

Currently unavailable

49

Toro 31914

Bracket, Air cleaner

$

$

Currently unavailable

50

Toro 30727

Element

$

$

Currently unavailable

51

Toro 31692

Body

$

$

Currently unavailable

52

Toro 650152

Screw

$

$

Currently unavailable

53

Toro 31752

Decal

$

$

Not available

58

Toro 33668

Screen-Starter

$

$

Currently unavailable

58A

Toro 33667

Cup, Starter
(Superseded to 740552)

$

$

Not available

59

Toro 32698

Link-Governor to Throttle

$

$

Currently unavailable

60

Toro 31510

Lever-Governor

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 33342

Baffle-Blower Housing
(Superseded to 704713)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting.

$

$

Not available

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

66

Toro 31906

Decal, Name Instruction

$

$

Currently unavailable

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

68

Toro 650168

Washer

$

$

Currently unavailable

69

Toro 29212

Screw

$

$

Currently unavailable

70

Toro 33663

Housing Blower

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 nuts illustrated to attach replacement starter to replacement blower housing.

$

$

Not available

71

Toro 650763

Washer-Spring

$

$

Currently unavailable

72

Toro 650607

Hex Nut

$

$

Currently unavailable

76

Toro 27272

Gasket

Note: Indicates items included in Gasket Set part no. 33683

$

$

Currently unavailable

80

Toro 31388

Wire, Ground

$

$

Currently unavailable

81

Toro 6202

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

82

Toro 33341

Baffle-Extension

$

$

Currently unavailable

83

Toro 650701

Screw-Hex Washer Hd.

$

$

Currently unavailable

85

Toro 650601

Screw-Fil. Hd.

$

$

Currently unavailable

86

Toro 28212

pacer

$

$

Currently unavailable

87

Toro 26756

Gasket

Note: Indicates items included in Gasket Set part no. 33683

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

94

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

95

Toro 33344

Baffle-Heat

$

$

Currently unavailable

97

Toro 30590A

Washer-Flat

$

$

Currently unavailable

105

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

111

Toro 28371A

Bracket, Fuel tank

$

$

Currently unavailable

112

Toro 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

113

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

114

Toro 33120

53023/VAR.10/16HP O

$3.23

$

Usually ships in 3-6 days

0

115

Toro 410144B

Cap, Fuel

$

$

Currently unavailable

116

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

119

Toro 30705

Line-Fuel

$

$

Currently unavailable

120

Toro 29443

Clip-Wire

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

122

Toro 650128

Screw

$

$

Currently unavailable

129

Toro 27247

Key Flywheel

$

$

Currently unavailable

137

Toro 29752

Nut and Lock Washer (1/4-28)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 nuts illustrated to attach replacement starter to replacement blower housing.

$

$

Currently unavailable

139

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

140

Toro 650548

Screw

$

$

Currently unavailable

141

Toro 33697

Muffler

$

$

Currently unavailable

142

Toro 33670

Gasket-Exhaust

Note: Indicates items included in Gasket Set part no. 33683

$

$

Currently unavailable

143

Toro 650253

Screw, Hex hd. cap

$

$

Currently unavailable

146

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

147

Toro 27793

Conduit

$

$

Currently unavailable

149

Toro 33879

Bracket Assy., Control (Incl. Nos. 149, 150, 151 152)

$

$

Currently unavailable

150

Toro 31342

Spring-Compression

$

$

Currently unavailable

151

Toro 650549

Screw

$

$

Currently unavailable

152

Toro 30091

Screw, Hex Slotted Hd.

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting.

$

$

Currently unavailable

153

Toro 30322

Nut-Lock

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting.

$

$

Currently unavailable

169

Toro 31426

Spring-Extension

$

$

Currently unavailable

170

Toro 631701

Carburetor (Incl. No. 87)

$

$

Currently unavailable

171

Toro 610862

Magneto

$

$

Currently unavailable

172

Toro 590420

Starter, Rewind

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 nuts illustrated to attach replacement starter to replacement blower housing.

$

$

Currently unavailable

173

Toro 33683

Gasket Set

$

$

Currently unavailable
