58336 - Toro 22" Tiller (SN: 000000001 - 000999999) (1980) Engine Briggs Stratton Model 111202-0131-01 2 Parts Diagram

22" Tiller

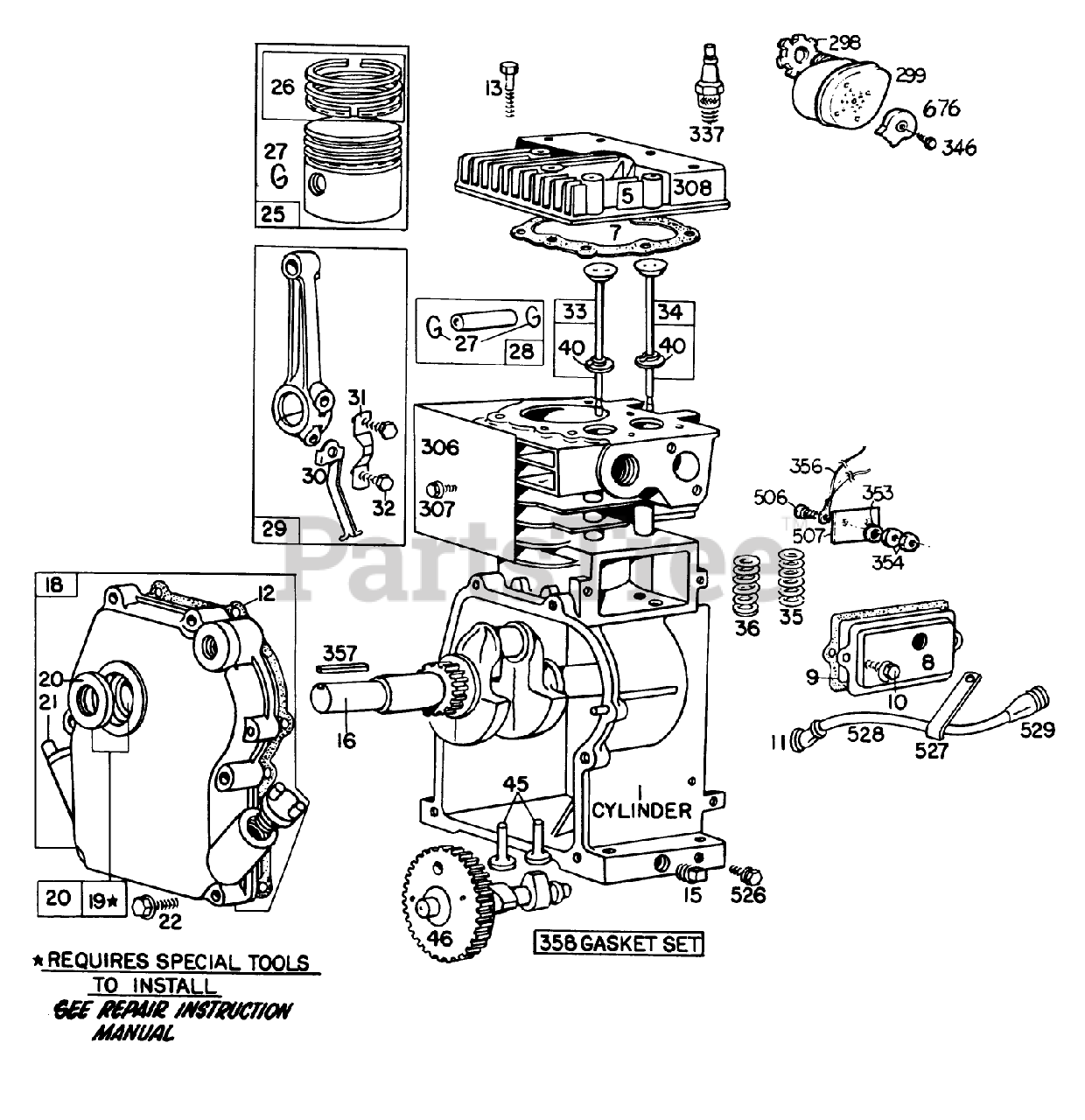

Engine Briggs Stratton Model 111202-0131-01 2 Parts Diagram

  • Title

1

Toro 392857

Cylinder Assembly

$

$

Currently unavailable

5

Toro 211851

Head-Cylinder

$

$

Currently unavailable

7

Toro 270836

Gasket-Cylinder Hd,

Note: Included in Gasket Set-Part No. 392856

$

$

Currently unavailable

8

Toro 294178

Breather-Valve Chamber

$

$

Currently unavailable

9

*27549 Gasket-Valve Cover

Note: Included in Gasket Set-Part No. 392856

$

$

Not available

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 66578

Grommet

$

$

Currently unavailable

12

Toro 270833

Gasket-Crankcase-.015" thick

Note: Included in Gasket Set-Part No. 392856

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No. 392856

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 392856

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

15

Toro 93448

Plug-Pipe

$

$

Currently unavailable

16

Toro 261414

Crankshaft

$

$

Currently unavailable

18

Toro 392974

Cover Assembly-Crankcase

$

$

Currently unavailable

19

Toro 293708

Bushing

$

$

Currently unavailable

20

Toro 299819

Seal-Oil

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

25

Toro 391650

Piston Assembly-Std.

$

$

Currently unavailable

Toro 391651

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 391652

Piston Assy.-.020" O.S.

$

$

Currently unavailable

Toro 391653

Piston Assy.-.030" O.S.

$

$

Currently unavailable

26

Toro 391654

Ring Set-Std.Piston

$

$

Currently unavailable

Toro 391656

Ring Set-.010" O.S. Piston

$

$

Currently unavailable

Toro 391658

Ring Set-.020" O.S. Piston

$

$

Currently unavailable

Toro 391660

Ring Set-.030" O.S. Piston

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 391649

Pin Assembly-Piston-Std.

$

$

Currently unavailable

29

Toro 392939

Rod Assembly-Connecting

$

$

Currently unavailable

30

Toro 220670

Dipper-Conn. Rod

$

$

Currently unavailable

31

Toro 222390

DISCONTINUE-DESA

$

$

Not available

32

Toro 93670

Screw-Connecting Rod

$

$

Currently unavailable

33

Toro 212004

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261233

Valve Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 261250

Tappet-Valve

$

$

Currently unavailable

46

Toro 392171

Gear-Cam

$

$

Currently unavailable

298

Toro 220859

Locknut-Muffier

$

$

Not available

299

Toro 392811

Muffler-Exhaust

$

$

Currently unavailable

306

Toro 222681

Shield-Cylinder

$

$

Currently unavailable

307

Toro 93042

Screw

$

$

Currently unavailable

308

Toro 222679

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

353

Toro 92791

Washer-Lock

$

$

Currently unavailable

354

Toro 90576

Nut

$

$

Currently unavailable

356

Toro 392074

Wire-Ground

$

$

Currently unavailable

357

Toro 91539

Key

$

$

Currently unavailable

358

Toro 392856

Gasket Set

$

$

Currently unavailable

506

Toro 90200

Screw-Terminal

$

$

Currently unavailable

507

Toro 66895

InsuIator

$

$

Currently unavailable

526

Toro 93343

Screw

$

$

Currently unavailable

527

Toro 221279

Clamp-Breather

$

$

Currently unavailable

528

Toro 230634

Tube-Breather

$

$

Currently unavailable

529

Toro 67608

Grommet-Breather Tube

$

$

Currently unavailable

676

Toro 222522

Deflector-Exhaust

$

$

Currently unavailable
