58336 - Toro 22" Tiller (SN: 002000001 - 002999999) (1982) Engine Briggs Stratton Model 112202-0135-01 2 Parts Diagram

22" Tiller

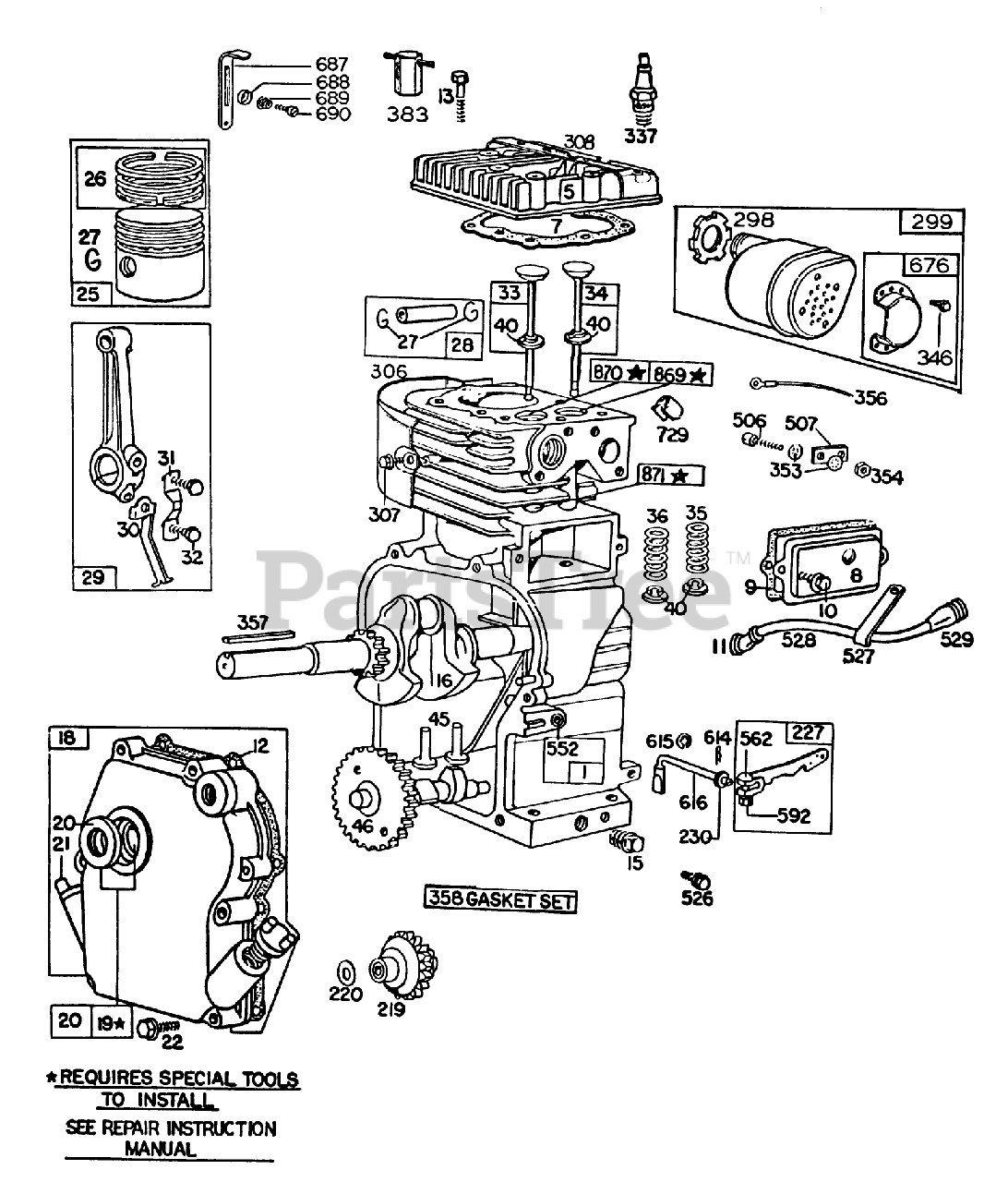

Engine Briggs Stratton Model 112202-0135-01 2 Parts Diagram

  • Title

1

Toro 394819

Cylinder Assembly

$

$

Currently unavailable

5

Toro 211851

Head-Cylinder

$

$

Currently unavailable

7

Toro 270836

Gasket-Cylinder Hd,

Note: Included in Gasket Set-Part No. 392856

$

$

Currently unavailable

8

Toro 294178

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part No. 392856

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 66578

Grommet

$

$

Currently unavailable

12

Toro 270833

Gasket-Crankcase-.015" thick

Note: Included in Gasket Set-Part No. 392856

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No. 392856

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 392856

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

15

Toro 91249

Plug-Pipe

$

$

Currently unavailable

16

Toro 261414

Crankshaft

$

$

Currently unavailable

18

Toro 394820

Lever-Traction Control

$

$

Currently unavailable

19

Toro 293708

Bushing

$

$

Currently unavailable

20

Toro 393862

Seal-Oil

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

25

Toro 391650

Piston Assembly-Std.

$

$

Currently unavailable

Toro 391651

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 391652

Piston Assy.-.020" O.S.

$

$

Currently unavailable

Toro 391653

Piston Assy.-.030" O.S.

$

$

Currently unavailable

26

Toro 391654

Ring Set-Std.Piston

$

$

Currently unavailable

Toro 391656

Ring Set-.010" O.S. Piston

$

$

Currently unavailable

Toro 391658

Ring Set-.020" O.S. Piston

$

$

Currently unavailable

Toro 391660

Ring Set-.030" O.S. Piston

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 391649

Pin Assembly-Piston-Std.

$

$

Currently unavailable

Toro 394861

Piston Assy. (Std.)

$

$

Currently unavailable

29

Toro 392939

Rod Assembly-Connecting

$

$

Currently unavailable

30

Toro 220670

Dipper-Conn. Rod

$

$

Currently unavailable

31

Toro 222390

DISCONTINUE-DESA

$

$

Not available

32

Toro 93670

Screw-Connecting Rod

$

$

Currently unavailable

33

Toro 212004

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261233

Valve Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 261250

Tappet-Valve

$

$

Currently unavailable

46

Toro 392171

Gear-Cam

$

$

Currently unavailable

219

Toro 391737

Gear Governor

$

$

Currently unavailable

220

Toro 221551

Washer-Thrust

$

$

Currently unavailable

227

Toro 394541

Lever Assy.-Governor

$

$

Currently unavailable

230

Toro 222450

DISCONTINUE-DESA

$

$

Not available

298

Toro 220859

Locknut-Muffier

$

$

Not available

299

Toro 392811

Muffler-Exhaust

$

$

Currently unavailable

306

Toro 223086

Shield-Cylinder

$

$

Not available

307

Toro 93490

Screw

$

$

Currently unavailable

308

Toro 223085

Cover-Cylinder Head

$

$

Not available

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

353

Toro 92791

Washer-Lock

$

$

Currently unavailable

354

Toro 90576

Nut

$

$

Currently unavailable

356

Toro 394782

Wire-Ground

$

$

Currently unavailable

357

Toro 91539

Key

$

$

Currently unavailable

358

Toro 392856

Gasket Set

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

506

Toro 90200

Screw-Terminal

$

$

Currently unavailable

507

Toro 66895

InsuIator

$

$

Currently unavailable

526

Toro 93343

Screw

$

$

Currently unavailable

527

Toro 221279

Clamp-Breather

$

$

Currently unavailable

528

Toro 230634

Tube-Breather

$

$

Currently unavailable

529

Toro 67608

Grommet-Breather Tube

$

$

Currently unavailable

552

Toro 231079

Bushing-Governor

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 231077

Crank-Govemor

$

$

Currently unavailable

676

Toro 393760

Deflector-Exhaust

$

$

Currently unavailable

687

Toro 390690

Slide-Friction Control

$

$

Currently unavailable

688

Toro 221766

Cap-Friction Spring

$

$

Currently unavailable

689

Toro 260847

Spring-Friction

$

$

Currently unavailable

690

Toro 92484

Screw-Machine, Fil. Hd.

$

$

Currently unavailable

729

Toro 221907

CIip-Wire

$

$

Currently unavailable

869

Toro 210879

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 211291

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 63709

Bushing-Guide

$

$

Currently unavailable
