58336 - Toro 22" Tiller (SN: 002000001 - 002999999) (1982) ENGINE BRIGGS & STRATTON MODEL 112202-0135-01 Parts Diagram

22" Tiller

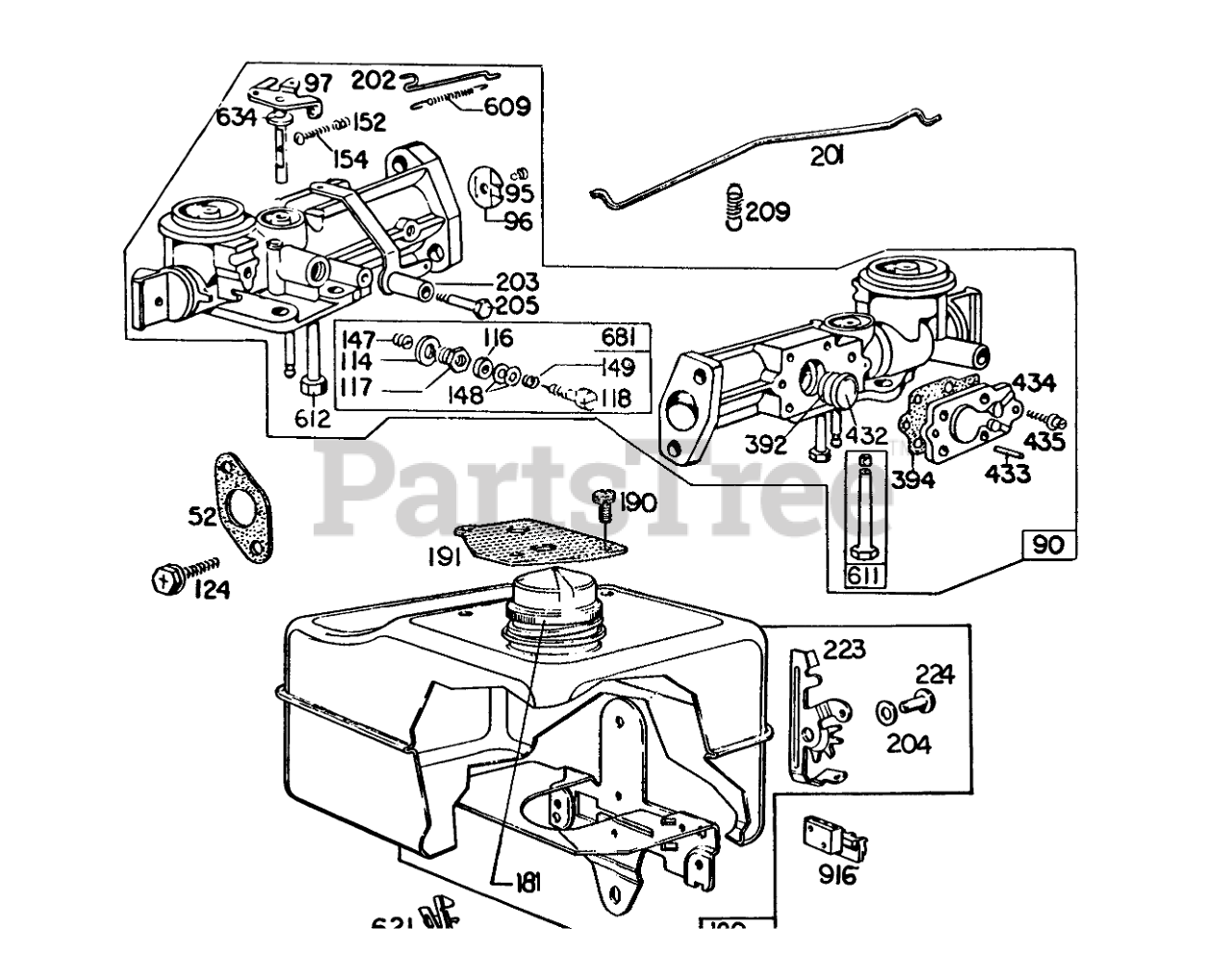

ENGINE BRIGGS & STRATTON MODEL 112202-0135-01 Parts Diagram

  • Title

52

Briggs & Stratton 394732

Gasket-Intake Elbow Mounting

$6.49

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 394828

Carburetor Assembly (For 2 Quart Tank)

$135.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 211203

Valve Throttle

$8.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 297468

Shaft and Lever-Throttle

$4.49

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 66594

Gasket Valve Nut
(Superseded to 691608)

$5.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 230590

Nut-Needle Valve
(Superseded to 690504)

$3.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

Usually ships in 2-12 days

0

124

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

147

Briggs & Stratton 230591

Seat-Needle Valve
(Superseded to 692134)

$9.49

$

Usually ships in 2-12 days

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, Qty 7

0

152

Briggs & Stratton 260575

Spring-Adjustment
(Superseded to 691783)

$7.99

$

Usually ships in 2-12 days

0

154

Briggs & Stratton 93527

Screw-Rd. Hd.
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 394821

Tank Assy.-Fuel (2 Quart)
(Superseded to 397869)

$70.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$4.99

$

In Stock, Qty 5

0

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 27911

Gasket-Fuel Tank Mtg.
(Superseded to 272409S)

Note: Included in Gasket Set-Part No. 392856.

$3.99

$

In Stock, Qty 20+

0

201

Briggs & Stratton 261590

Link-Governor

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 260678

Link-Throttle
(Superseded to 691786)

$

$

Not available

203

Briggs & Stratton 394670

Crank-Bell

$8.99

$

In Stock, only 1 left!

0

204

Toro 230844

Bushing-Governor Lever

$

$

Currently unavailable

205

Briggs & Stratton 93838

Screw-Shoulder
(Superseded to 691630)

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 260902

Spring-Governor

$6.49

$

In Stock, only 1 left!

0

223

Briggs & Stratton 223097

Lever-Governor Control

$2.49

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 93491

Rivet

$1.49

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, Qty 5

0

394

Briggs & Stratton 270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 20+

0

433

Briggs & Stratton 93265

Pin-Roll
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210959

Cover-Diaphragm
(Superseded to 691713)

$10.99

$

In Stock, Qty 6

0

435

Briggs & Stratton 93141

Screw
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

609

Briggs & Stratton 260694

Spring-Throttle Link
(Superseded to 690498)

$7.49

$

In Stock, only 2 left!

0

611

Briggs & Stratton 391813

Tube-Pick-Up

$

$

Not available

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

$7.49

$

In Stock, Qty 20+

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 16

0

681

Briggs & Stratton 299060

Kit-Needle Valve

$21.99

$

In Stock, Qty 8

0

916

Briggs & Stratton 280321

Rack-Gov. Gear
(Superseded to 691900)

$5.99

$

Usually ships in 2-12 days

0
