583447-0317-E2 - Briggs & Stratton Horizontal Engine Water Pump, Fan, Vee Belt Parts Diagram

Horizontal Engine

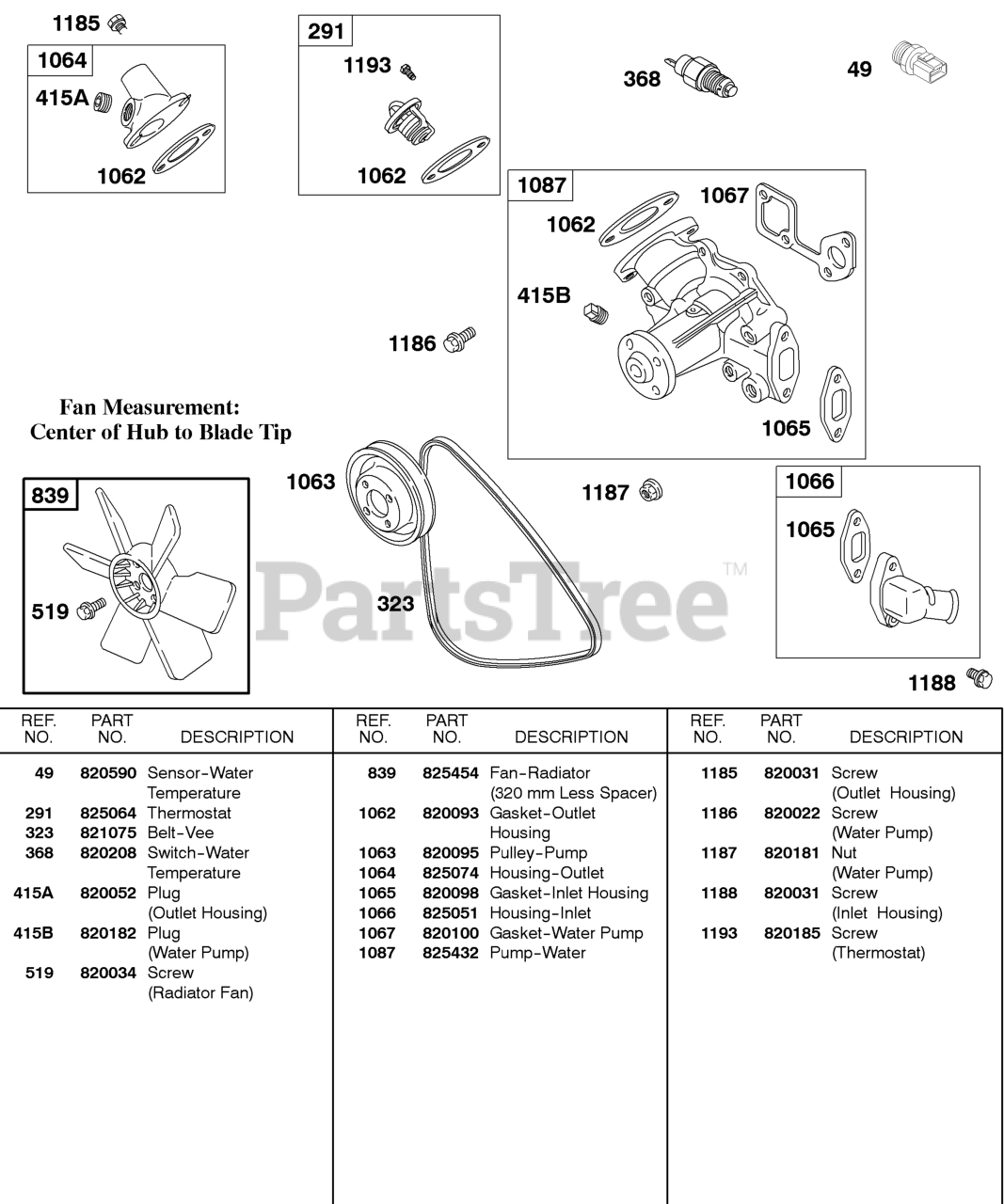

Water Pump, Fan, Vee Belt Parts Diagram

  • Title

49

Briggs & Stratton 820590

Sensor-Water Temperature

$47.99

$

Usually ships in 2-12 days

0

291

Briggs & Stratton 825064

Thermostat

$

$

Not available

323

Briggs & Stratton 821075

Belt-Vee

$

$

Not available

368

Briggs & Stratton 820208

Switch-Water Temperature

$50.99

$

In Stock, only 2 left!

0

415A

Briggs & Stratton 820052

Plug

Note: (Outlet Housing)

$6.99

$

Usually ships in 2-12 days

0

415B

Briggs & Stratton 820182

Plug

Note: (Water Pump)

$6.99

$

Usually ships in 2-12 days

0

519

Briggs & Stratton 820034

Screw
(Superseded to 821233)

Note: (Radiator Fan)

$3.99

$

Usually ships in 2-12 days

0

839

Briggs & Stratton 825454

Fan-Radiator

Note: (320mm Less Spacer)

$179.99

$

Usually ships in 2-12 days

0

1062

Briggs & Stratton 820093

Gasket-Outlet Housing

$11.99

$

In Stock, only 1 left!

0

1063

Briggs & Stratton 820095

Pulley-Pump

$159.99

$

Usually ships in 2-12 days

0

1064

Briggs & Stratton 825074

Housing-Outlet

$45.99

$

Usually ships in 2-12 days

0

1065

Briggs & Stratton 820098

Gasket-Inlet Housing

$6.99

$

Usually ships in 2-12 days

0

1066

Briggs & Stratton 825051

Housing-Inlet

$37.99

$

Usually ships in 2-12 days

0

1067

Briggs & Stratton 820100

Gasket-Water Pump

$12.99

$

Usually ships in 2-12 days

0

1087

Briggs & Stratton 825432

Pump-Water

$

$

Not available

1185

Briggs & Stratton 820031

Screw

Note: (Outlet Housing)

$3.99

$

Usually ships in 2-12 days

0

1186

Briggs & Stratton 820022

Screw

Note: (Water Pump)

$3.99

$

Usually ships in 2-12 days

0

1187

Briggs & Stratton 820181

Nut

Note: (Water Pump)

$3.49

$

Usually ships in 2-12 days

0

1188

Briggs & Stratton 820031

Screw

Note: (Inlet Housing)

$3.99

$

Usually ships in 2-12 days

0

1193

Briggs & Stratton 820185

Screw

Note: (Thermostat)

$4.99

$

Usually ships in 2-12 days

0
