58355 - Toro Garden Cultivator (SN: 069000001 - 069999999) (1996) Carburetor, Cylinder, Crankcase Fuel Tank Assemblies Parts Diagram

Garden Cultivator

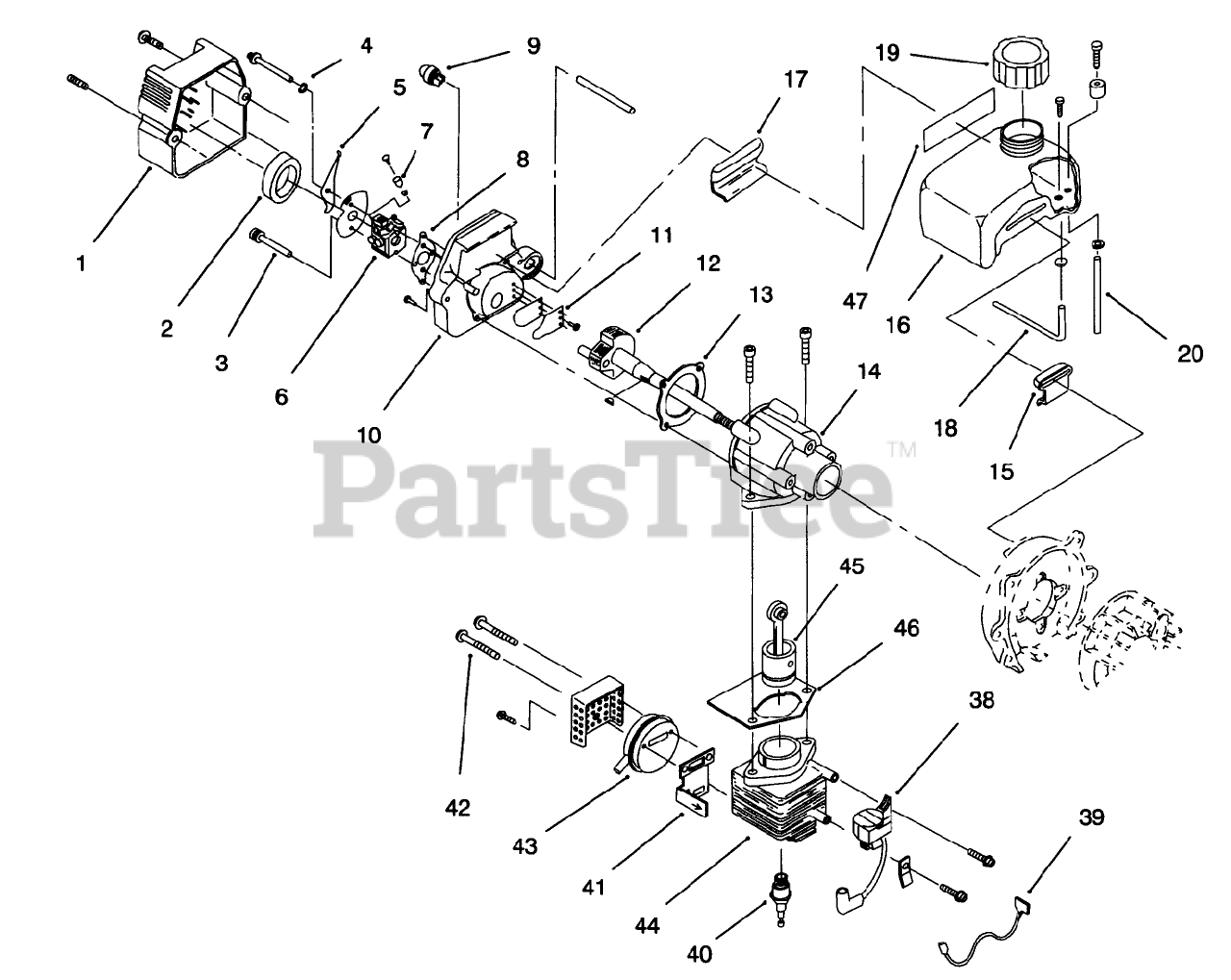

Carburetor, Cylinder, Crankcase Fuel Tank Assemblies Parts Diagram

  • Title

1

Toro 180349

DISCONTINUED

$

$

Not available

2

Toro 180350

FILTER - AIR CLEANER

$

$

Not available

3

Toro 180351

DISCONTINUED

$

$

Not available

4

Toro 180352

DISCONTINUED

$

$

Not available

5

Toro 180353

LEVER - CHOKE & PLATE

$

$

Not available

6

Toro 180527

DISCONTINUED
(Superseded to 181621)

$

$

Not available

7

Toro 682048

THROTTLE ADJ ASM

$

$

Not available

7

Toro 180092

ASM - THROTTLE ADJUSTMENT

$

$

Not available

8

Toro 610675

CARB.GASKET

$7.49

$

In Stock, only 1 left!

0

9

Toro 683974

DISCONTINUED

$

$

Not available

10

Toro 180354

See Supercession: 182063
(Superseded to 182063)

$

$

Not available

11

Toro 147573

DISCONTINUED

$

$

Not available

12

Toro 181498

ASM - POWER SHAFT

$

$

Not available

13

Toro 612115

DISCONTINUED

$

$

Not available

14

Toro 180026

DISCONTINUED

$

$

Not available

15

Toro 145308

FRONT MOUNTING PAD

$

$

Not available

16

Toro 181581

DISCONTINUED
(Superseded to 180046)

$

$

Not available

17

Toro 612134

REAR MOUNTING PAD

$

$

Not available

18

Toro 683976

FUEL RETURN LINE ASM

$

$

Not available

19

Toro 180000

DISCONTINUED

$

$

Not available

20

Toro 682039

FUEL LINE ASM

$

$

Not available

38

Toro 683390

Module Asm.
(Superseded to 181937)

$

$

Not available

39

Toro 181580

DISCONTINUED

$

$

Not available

40

Toro 610311

SPARK PLUG

$5.49

$

In Stock, only 4 left!

0

41

Toro 180980

GASKET - EXHAUST

$8.49

$

In Stock, only 1 left!

0

42

Toro 181571

DISCONTINUED

$

$

Not available

43

Toro 181572

See Supercession: 181984
(Superseded to 181984)

$

$

Not available

44

Toro 180063

See Supercession: 181622
(Superseded to 181622)

$

$

Not available

45

Toro 684449

See Supercession: 753-04367
(Superseded to 753-04367)

$

$

Not available

46

Toro 610674

DISCONTINUED

$

$

Not available

47

Toro 92-3334

See Supercession: 95-5082
(Superseded to 95-5082)

$

$

Not available

Toro 153308

See Supercession: 180602
(Superseded to 180602)

Note: Not illustrated

$

$

Not available

Toro 180090

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 181069

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 180091

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 180027

ASSEMBLY - SHORT BLOCK

Note: Not illustrated

$

$

Not available
