58402 - Toro Edger, 2hp (SN: 004000001 - 004999999) (1984) Frame Assembly Parts Diagram

Edger, 2hp

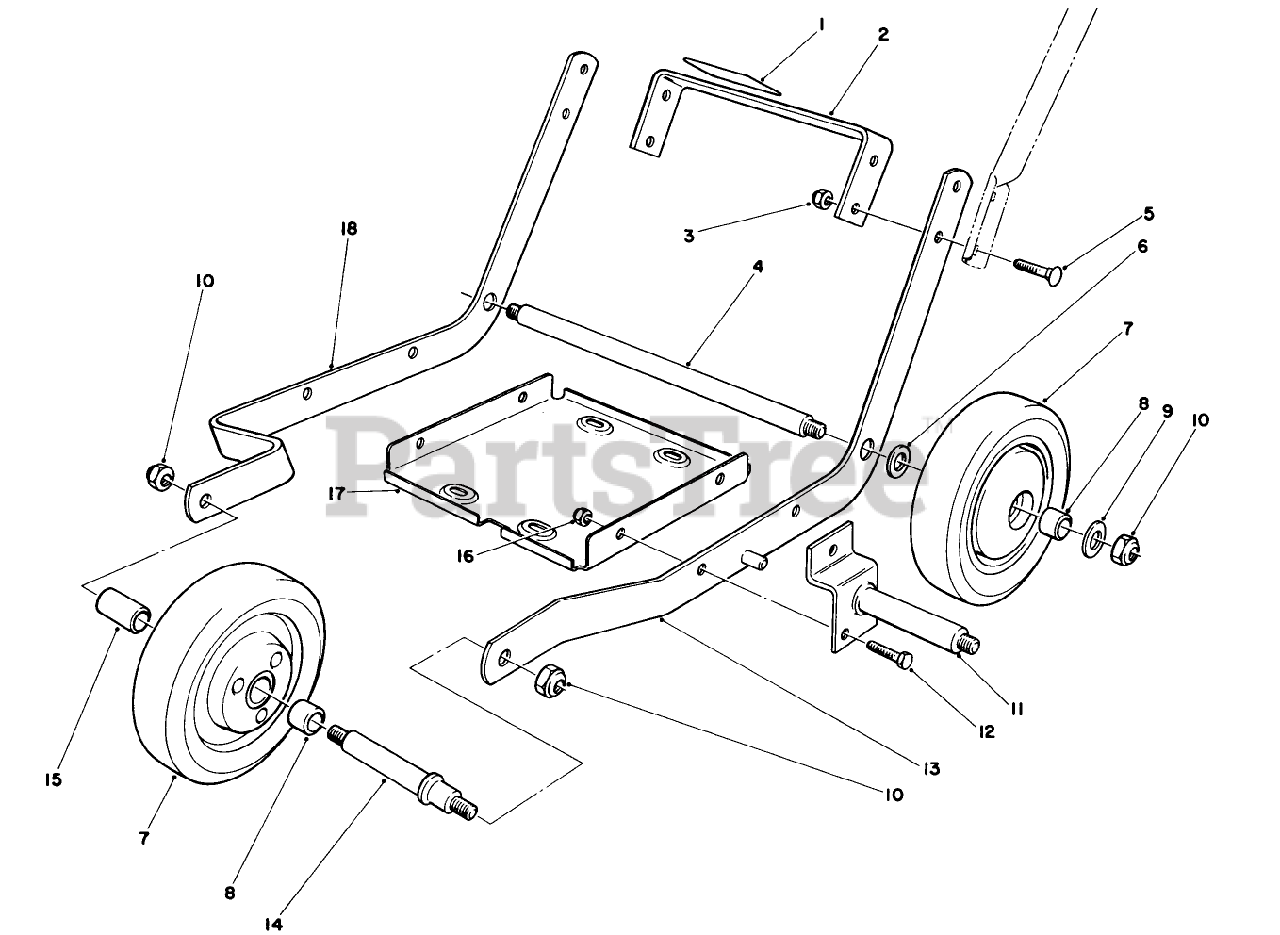

Frame Assembly Parts Diagram

  • Title

1

Toro 52-0570

See Supercession: 68-7390
(Superseded to 68-7390)

$

$

Not available

2

Toro 52-1000

DISCONTINUE

$

$

Not available

3

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 17

0

4

Toro 52-1050

DISCONTINUED
(Superseded to 52-1230)

$

$

Not available

5

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 3 left!

0

6

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 11

0

7

Toro 46-1110

DISCONTINUED

$

$

Not available

8

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

9

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 52-1070

DISCONTINUE

$

$

Not available

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 19

0

13

Toro 52-1020

DISCONTINUE

$

$

Not available

14

Toro 52-1160

DISCONTINUED

$

$

Not available

15

Toro 52-1210

DISCONTINUED

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 52-1180

DISCONTINUE

$

$

Not available

18

Toro 52-1010

DISCONTINUED

$

$

Not available
