58402 - Toro Edger, 2hp (SN: 005000001 - 005999999) (1985) MAGNETO & COWLING ASSEMBLY Parts Diagram

Edger, 2hp

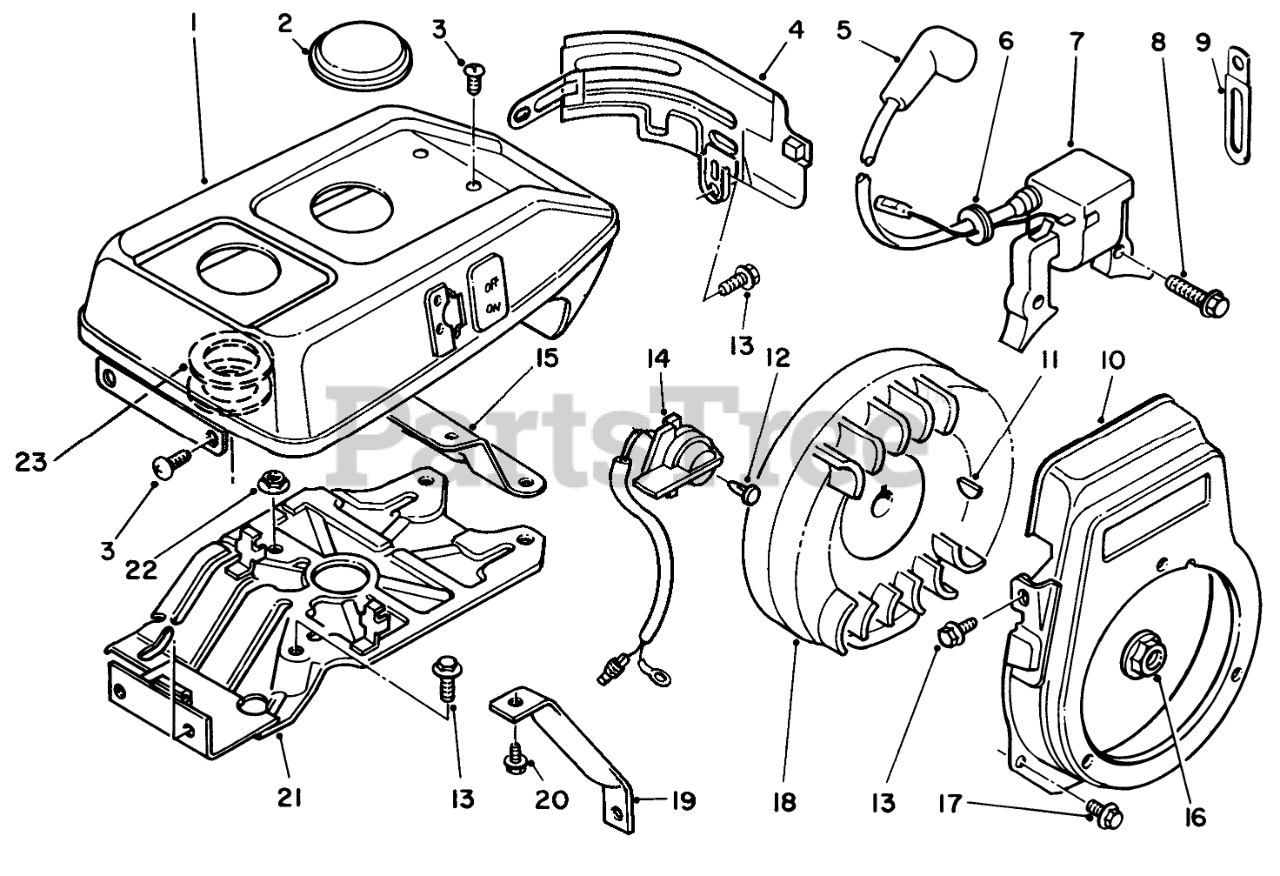

MAGNETO & COWLING ASSEMBLY Parts Diagram

  • Title

1

Toro 53-1110

Cover-Engine

$

$

Not available

2

Toro 53-0820

CAP

$

$

Not available

3

Toro 53-0810

Screw-Round Phillips Hd.

$

$

Not available

4

Toro 53-0760

Cowling-Side

$

$

Not available

5

Toro 81-1500

CAP-SPARKPLUG

$32.99

$

In Stock, only 2 left!

0

6

Toro 53-0840

Grommet

$

$

Not available

7

Toro 53-0830

Magneto Assembly (Incl. Ref. #5 & 6)

$

$

Not available

8

Toro 53-0860

BOLT

$

$

Not available

9

Toro 81-1480

CLAMP

$4.99

$

Usually ships in 3-6 days

0

10

Toro 53-0750

Cover-Cooling Fan

$

$

Not available

11

Toro 50-0640

KEY

$

$

Not available

12

Toro 53-0890

Pin

$

$

Not available

13

Toro 50-6320

Bolt

$

$

Not available

14

Toro 53-0880

Switch-Engine
(Superseded to 53-1390)

$

$

Not available

15

Toro 53-0780

Bracket-Engine Cover

$

$

Not available

16

Toro 50-0540

Nut

$

$

Not available

17

Toro 50-6470

Bolt

$

$

Not available

18

Toro 53-0850

Rotor

$

$

Not available

19

Toro 53-0790

Support-Fuel Tank

$

$

Not available

20

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

21

Toro 53-0770

Cowling-Upper

$

$

Not available

22

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

23

Toro 53-1510

Washer

$

$

Not available
