58430 - Toro Edger, 3.5hp (SN: 006000001 - 006999999) (1986) HANDLE ASSEMBLY Parts Diagram

Edger, 3.5hp

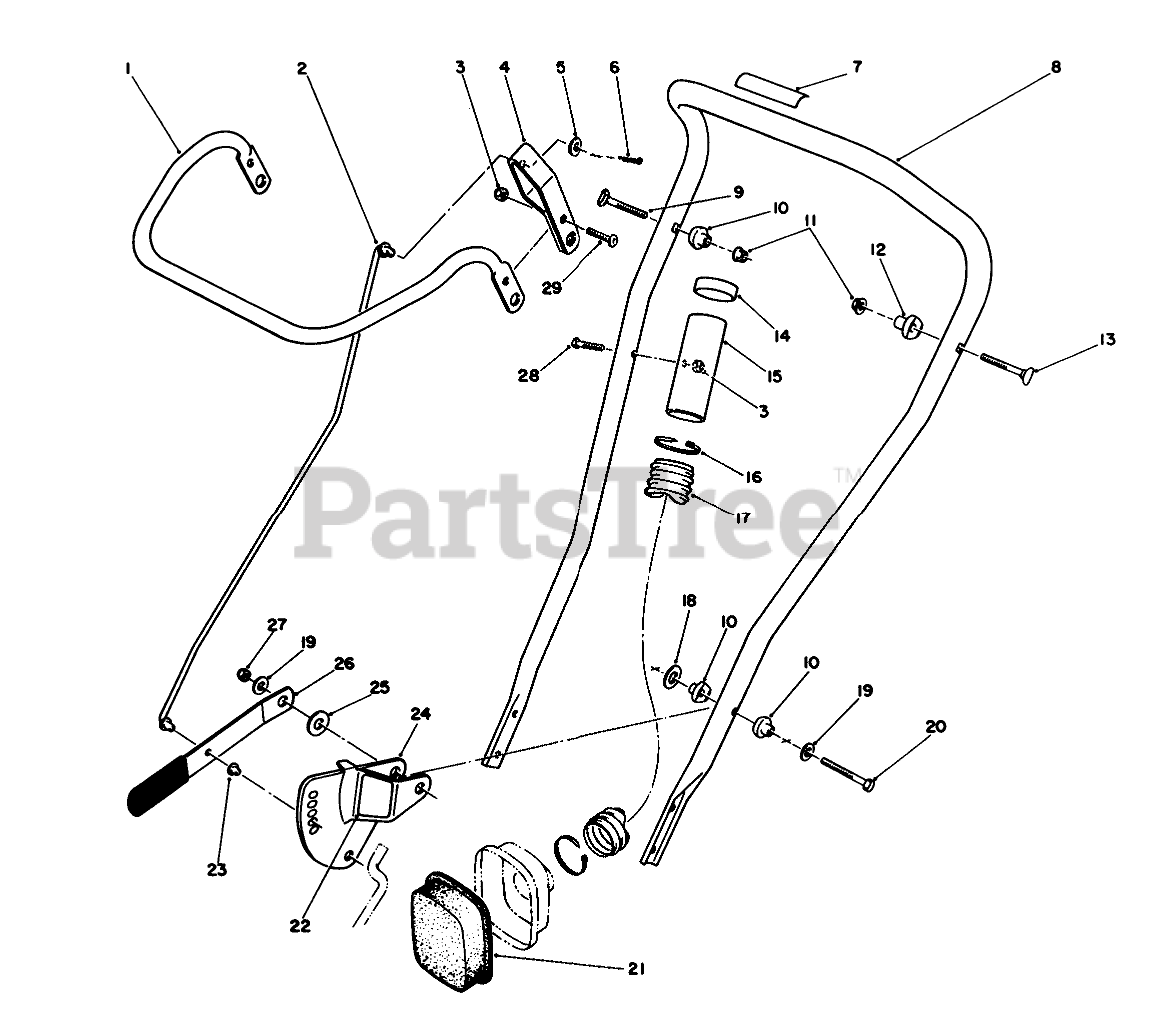

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 55-91

30 Bar-Control

$

$

Currently unavailable

2

Toro 57-7300

UPPER CONTROL ROD

$

$

Not available

3

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

4

Toro 57-7460

CONTROL BAR BRKT.

$

$

Not available

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

7

Toro 57-7450

DECAL

$

$

Not available

8

Toro 57-7280

UPPER HANDLE

$247.99

$

Usually ships in 3-6 days

0

9

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

10

Toro 57-7440

PIVOT SPACER

$

$

Not available

11

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

12

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

13

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

14

Toro 2410-53

BLACK CAPLUG

$

$

Not available

15

Toro 39-7790

AIR CLNR HOSE TIP

$

$

Not available

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

17

Toro 39-9762

AIR CLEANER HOSE

$54.99

$

Usually ships in 3-6 days

0

18

Toro 5-1902

WASHER

$

$

Not available

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

21

Toro 52-0200

AIR CLEANER FILTER

$

$

Not available

22

Toro 57-7420

DECAL

$

$

Not available

23

Toro 32112-13

PUSHNUT

$1.99

$

Usually ships in 3-6 days

0

24

Toro 57-7230

ADJ.PLATE WA

$

$

Not available

25

Toro 23-1120

WASHER

$9.99

$

Usually ships in 3-6 days

0

26

Toro 57-7060

ADJ.HANDLE

$

$

Not available

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 10

0
