58430 - Toro Edger, 3.5hp (SN: 007000001 - 007999999) (1987) CRANKCASE ASSEMBLY Parts Diagram

Edger, 3.5hp

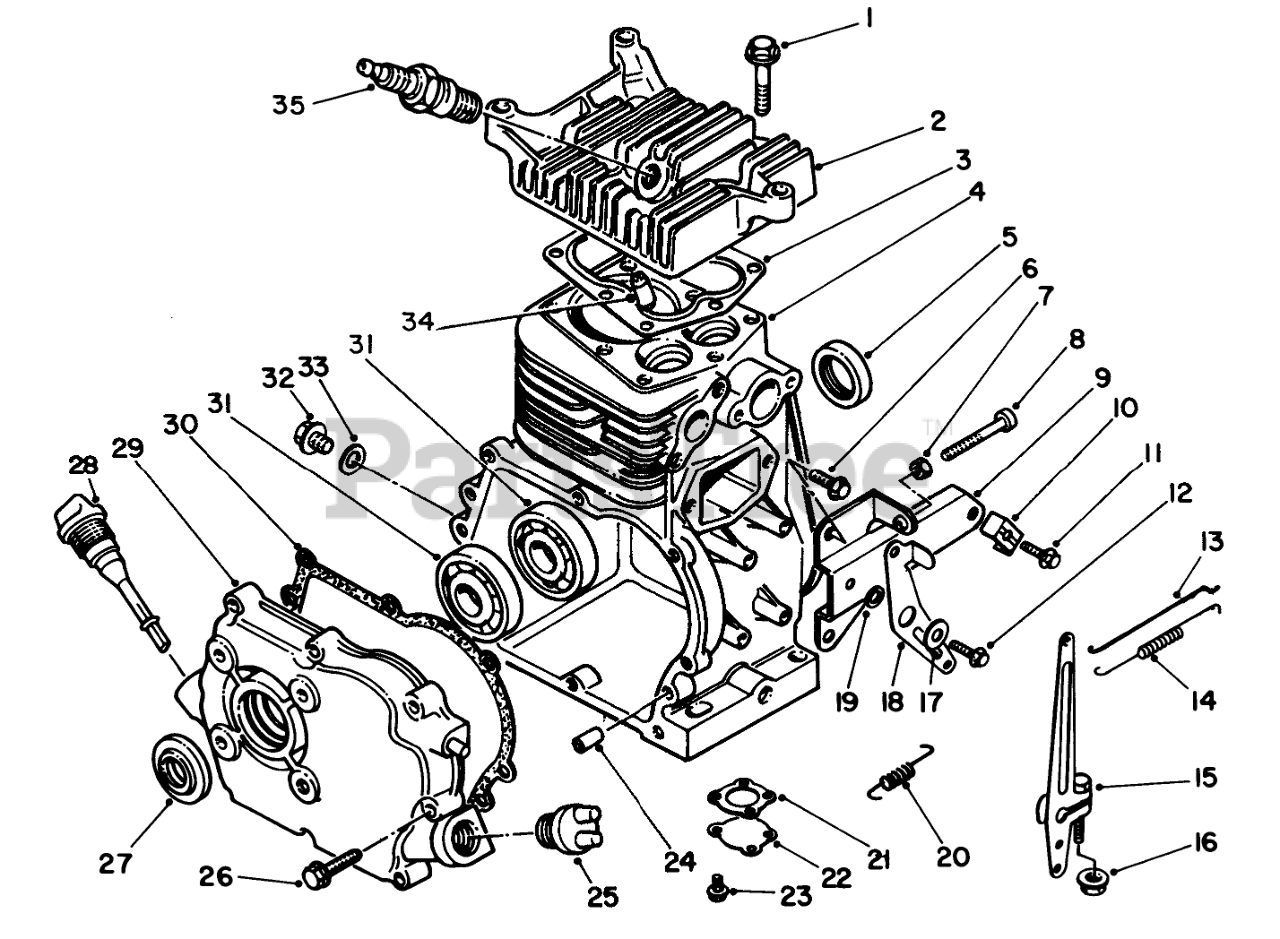

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Toro 50-0190

BOLT

$

$

Not available

2

Toro 50-1260

Cylinder Head

$

$

Not available

3

Toro 50-1290

GASKET

$

$

Not available

4

Toro 53-0950

Cylinder

$

$

Not available

5

Toro 50-0870

Oil Seal
(Superseded to 81-3460)

$33.99

$

Usually ships in 3-6 days

0

6

Toro 50-6320

Bolt

$

$

Not available

7

Toro 81-0900

NUT

$3.49

$

In Stock, only 2 left!

0

8

Toro 53-1030

Screw-Round Phillips Hd.

$

$

Not available

9

Toro 53-1020

Bracket-Governor Control

$

$

Not available

10

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

11

Toro 50-0130

BOLT

$5.49

$

Usually ships in 3-6 days

0

12

Toro 53-0220

BOLT

$

$

Not available

13

Toro 50-3300

Rod-Carburetor

$

$

Not available

14

Toro 50-1130

SPRING

$

$

Not available

15

Toro 53-1060

Lever-Control

$

$

Not available

16

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

17

Toro 53-1010

Washer

$

$

Not available

18

Toro 53-1000

Lever-Governor Control

$

$

Not available

19

Toro 55-7940

WASHER-THROTTLE

$

$

Not available

20

Toro 53-1050

Spring

$

$

Not available

21

Toro 50-3520

GASKET

$

$

Not available

22

Toro 53-0090

Cover-Level Sensor

$

$

Not available

23

Toro 50-6190

Bolt

$

$

Not available

24

Toro 81-0520

PIN

$

$

Not available

25

Toro 53-0990

Plug

$

$

Not available

26

Toro 81-0550

Bolt

$

$

Not available

27

Toro 50-0870

Oil Seal
(Superseded to 81-3460)

$33.99

$

Usually ships in 3-6 days

0

28

Toro 50-1450

Gauge-Oil Level

$

$

Not available

29

Toro 53-0980

Cover-Crankcase Side

$

$

Not available

30

Toro 50-1430

Gasket-Crankcase

$

$

Not available

31

Toro 53-0960

Bearing
(Superseded to 50-0830)

$

$

Not available

32

Toro 53-0970

Drain Plug

$

$

Not available

33

Toro 50-0800

GASKET

$

$

Not available

34

Toro 50-1350

Guide Valve

$

$

Not available

35

Toro 50-1160

SPARK PLUG

$

$

Not available

Toro 53-1090

Gasket Set

Note: Not illustrated

$

$

Not available
