58431 - Toro Edger, 3.5hp (SN: 000000001 - 000999999) (1990) Engine Briggs Stratton Parts Diagram

Edger, 3.5hp

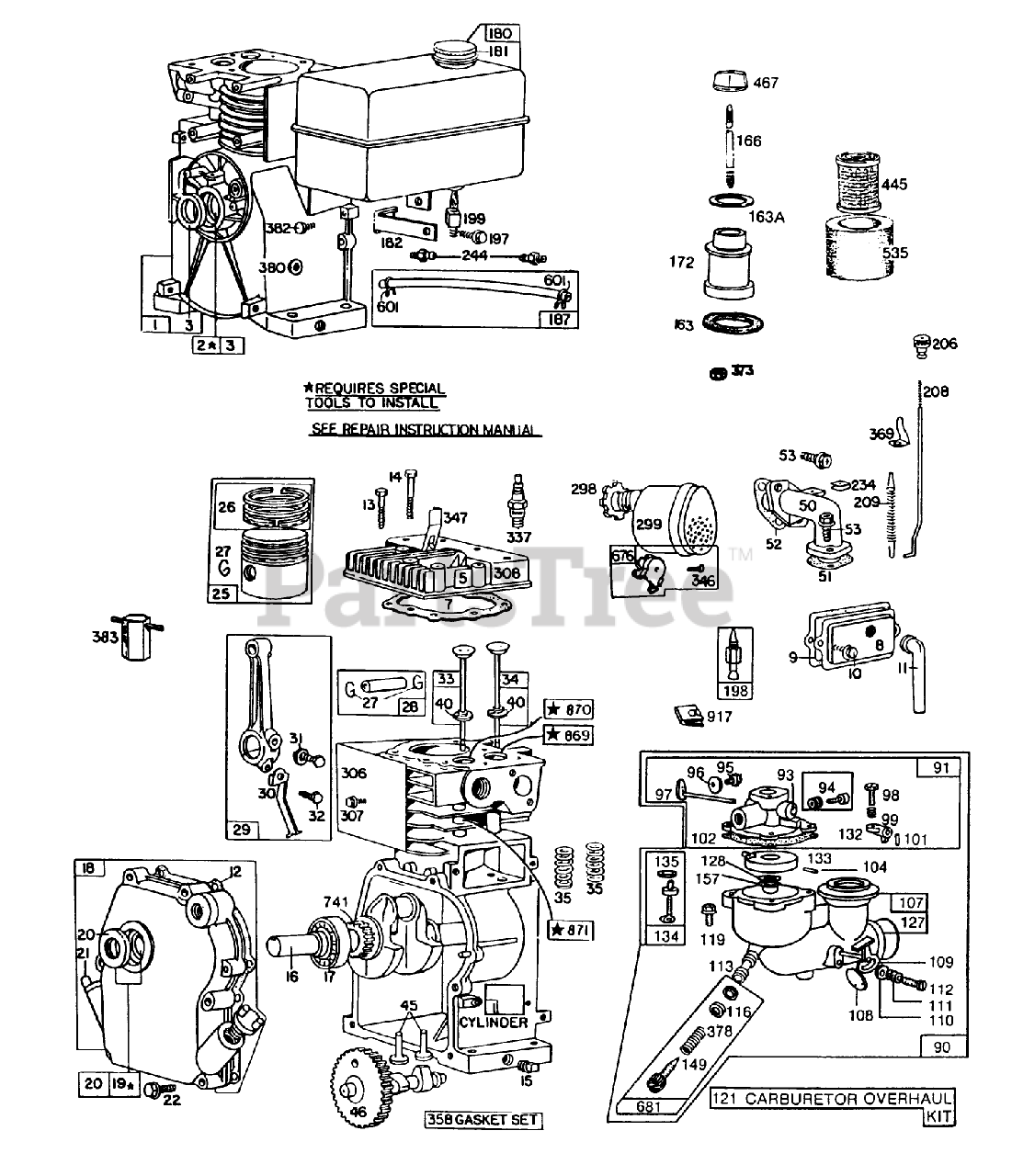

Engine Briggs Stratton Parts Diagram

  • Title

1

Toro 395879

Cylinder Assembly

$

$

Currently unavailable

2

Toro 293708

Bushing

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

$

$

Currently unavailable

5

Toro 210812

Head-Cylinder

$

$

Currently unavailable

7

Toro 27670

Gasket-Cylinder Hd.

$

$

Currently unavailable

8

Toro 294178

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 66638

Tube-Breather

$

$

Currently unavailable

12

Toro 270833

Gasket-Crankcase-.015" thick

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

$

$

Currently unavailable

13

Toro 91386

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93113

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91249

Plug-Pipe

$

$

Currently unavailable

16

Toro 397250

Crankshaft Note: To Replace Crankshaft Gear Pin, Order Part No.230978. (Incl. Pin 230978)

$

$

Currently unavailable

17

Toro 99158

Bearing-Ball

$

$

Currently unavailable

18

Toro 395259

Crankcase Cover Assembly

$

$

Currently unavailable

19

Toro 293708

Bushing

$

$

Currently unavailable

20

Toro 393812

Seal-Oil

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

25

Toro 295587

Piston Assy.-Std.

$

$

Currently unavailable

Toro 295588

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 295589

Piston Assy. .020" O.S.

$

$

Currently unavailable

Toro 295590

Piston Assy.-.030" O.S.

$

$

Currently unavailable

26

Toro 294232

Ring Set (Std.)

$

$

Currently unavailable

Toro 294224

Ring Set .010" OS.

$

$

Currently unavailable

Toro 294225

Ring Set .020" OS.

$

$

Currently unavailable

Toro 294226

Ring Set .030" OS.

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 294367

Rod Assy.-Connecting

$

$

Currently unavailable

30

Toro 220670

Dipper-Conn. Rod

$

$

Currently unavailable

31

Toro 222282

DISCONTINUED

$

$

Not available

32

Toro 92296

Screw, Conn.Rod

$

$

Currently unavailable

33

Toro 296676

Valve Exhaust

$

$

Currently unavailable

34

Toro 296677

Valve Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 230173

Tappet-Valve

$

$

Not available

46

Toro 394800

Gear-Cam

$

$

Currently unavailable

50

Toro 210810

61762/95-5929-5 WHE

$3.23

$

Usually ships in 3-6 days

0

51

Toro 68987

Gasket-Carburetor

$

$

Currently unavailable

52

Toro 27355

Gasket-Carburetor

$

$

Currently unavailable

53

Toro 93357

Screw

$

$

Currently unavailable

90

Toro 295607

Carburetor Assy.

$

$

Currently unavailable

91

Toro 295608

Housing Assy., Throttle

$

$

Currently unavailable

93

Toro 23230

Bushing-Throttle Shaft

$

$

Currently unavailable

94

Toro 292681

Valve Assembly

$

$

Currently unavailable

95

Toro 93499

Screw

$

$

Currently unavailable

96

Toro 222972

Valve-Throttle

$

$

Currently unavailable

97

Toro 295436

Shaft/Lever-Throttle

$

$

Currently unavailable

98

Toro 91920

Screw

$

$

Currently unavailable

99

Toro 26157

Spring

$

$

Currently unavailable

101

Toro 93043

Pin

$

$

Currently unavailable

102

Toro 27917

Gasket-Carburetor Body

$

$

Currently unavailable

104

Toro 23114

Pin-Float Hinge

$

$

Currently unavailable

107

Toro 397870

Carburetor Body Assembiy

$

$

Currently unavailable

108

Toro 220897

Valve-Choke

$

$

Currently unavailable

109

Toro 294874

Shaft and Lever Assy.

$

$

Currently unavailable

110

Toro 220899

Washer-Choke Lever

$

$

Currently unavailable

111

Toro 26229

Spring-Choke Lever
(Superseded to 704513)

$

$

Not available

112

Toro 23270

432/434/13933A GILS

$3.23

$

Usually ships in 3-6 days

0

113

Toro 231359

Nozzle-Carburetor

$

$

Currently unavailable

116

Toro 280203

O-Ring

$

$

Currently unavailable

119

Toro 93347

Screw

$

$

Currently unavailable

121

Toro 398992

Carburetor Overhaul Kit

$

$

Currently unavailable

127

Toro 220352

Plug-Welch

$

$

Currently unavailable

128

Toro 210881

Venturi-Carburetor

$

$

Currently unavailable

132

Toro 61967

Stop-Throttle

$

$

Currently unavailable

133

Toro 293477

Float-Carburetor

$

$

Currently unavailable

134

Toro 293478

Valve Seat-Fuel Inlet

$

$

Currently unavailable

135

Toro 68877

Gasket, Fuel Inlet Valve Seat

$

$

Currently unavailable

149

Toro 261357

Spring-Needle Valve

$

$

Currently unavailable

157

Toro 27840

Gasket-Venturi

$

$

Currently unavailable

163

Toro 271042

Gasket-Air Cleaner Mount

$

$

Currently unavailable

163A

Toro 271139

Gasket-Air Cleaner

$

$

Currently unavailable

166

Toro 231314

Stud-Air Cleaner

$

$

Currently unavailable

172

Toro 280213

Spacer-Air Cleaner

$

$

Currently unavailable

180

Toro 292945

Tank Assy., Fuel

$

$

Currently unavailable

181

Toro 69221

Cap-Fuel Tank

$

$

Currently unavailable

182

Toro 220195

Bracket-Fuel Tank

$

$

Currently unavailable

187

Toro 393815

Line-Vacuum

$

$

Currently unavailable

197

Toro 93083

Screw, Tank Mtg., Sem

$

$

Currently unavailable

198

Toro 293934

Valve-Shut Off

$

$

Currently unavailable

199

Toro 295896

Outlet-Fuel Tank (Incl. Strainer)

$

$

Currently unavailable

206

Toro 230149

Nut-Control Rod

$

$

Currently unavailable

208

Toro 230194

Rod-Control

$

$

Currently unavailable

209

Toro 26925

Spring-Governor

$

$

Currently unavailable

234

Toro 220730

Clip-Control Rod

$

$

Currently unavailable

244

Toro 230318

Connector-Fuel

$

$

Currently unavailable

298

Toro 220859

Locknut-Muffier

$

$

Not available

299

Toro 392811

Muffler-Exhaust

$

$

Currently unavailable

306

Toro 220478

Muffler-Exhaust

$

$

Currently unavailable

307

Toro 93490

Screw

$

$

Currently unavailable

308

Toro 223390

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 298809

Plug Spark

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

347

Toro 220884

Switch-Stop

$

$

Not available

358

Toro 297275

Gasket Set

$

$

Currently unavailable

369

Toro 220705

Spring-Friction Control

$

$

Currently unavailable

373

Toro 92987

Nut

$

$

Currently unavailable

378

Toro 22032

Washer, Needle Valve Pkg.

$

$

Currently unavailable

380

Toro 62199

Washer-Plain

$

$

Currently unavailable

382

Toro 93158

Screw

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

445

Toro 396424

Filter-Air

$

$

Currently unavailable

467

Toro 212706

Knob-Air Cleaner

$

$

Currently unavailable

535

Toro 271466

Filter-Air

$

$

Currently unavailable

601

Toro 93053

Clamp-Hose

$

$

Currently unavailable

676

Toro 393760

Deflector-Exhaust

$

$

Currently unavailable

681

Toro 399619

Needle Valve Assembly

$

$

Currently unavailable

741

Toro 261721

Gear-Timing

$

$

Currently unavailable

869

Toro 210879

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 211291

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 231348

Guide-Exhaust Valve
(Superseded to 706543)

$36.99

$

Usually ships in 3-6 days

0

917

Toro 223271

Valve Handle

$

$

Currently unavailable
