58431 - Toro Edger, 3.5hp (SN: 008000001 - 008999999) (1988) Handle Assembly Parts Diagram

Edger, 3.5hp

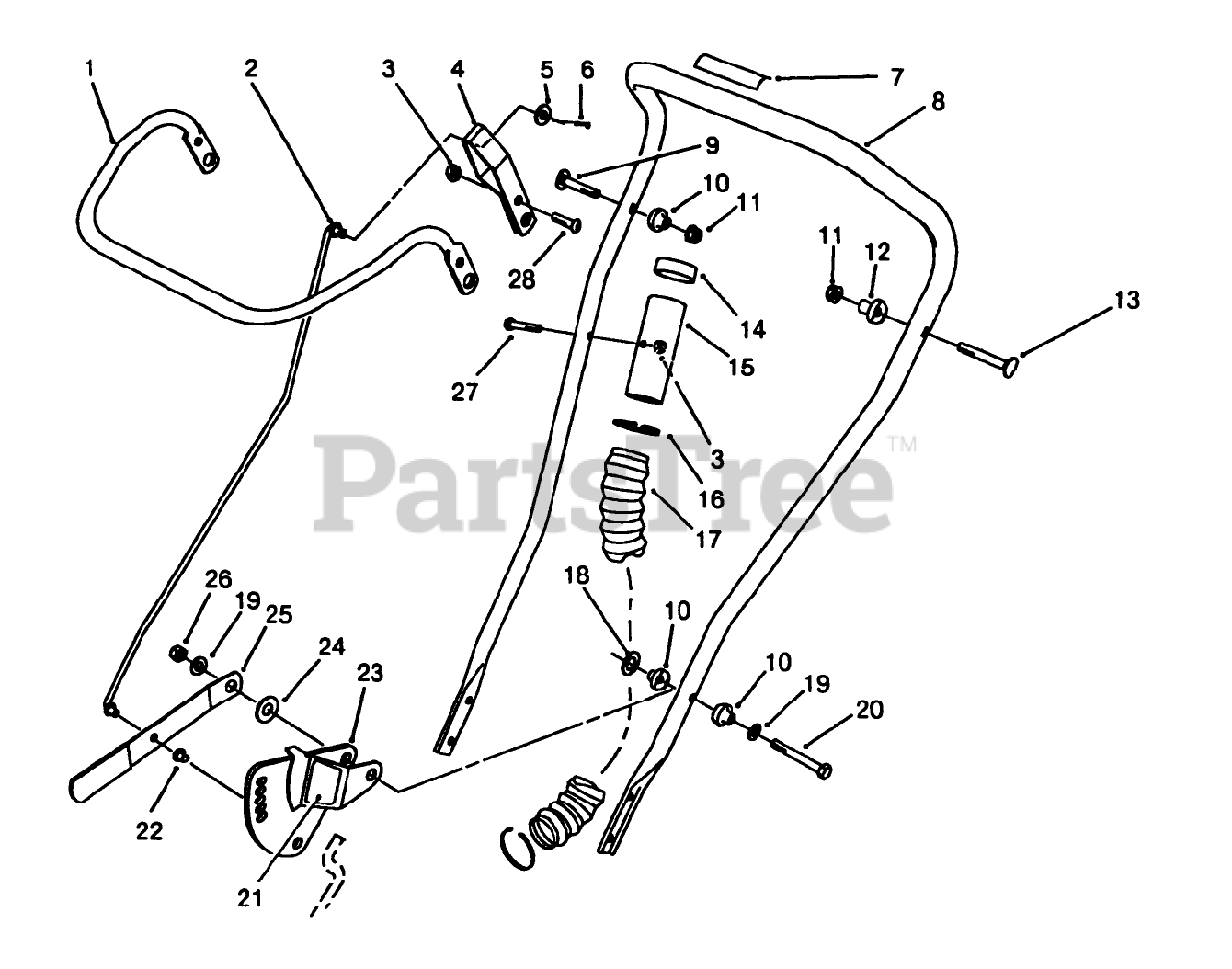

Handle Assembly Parts Diagram

  • Title

1

Toro 55-9130

See Supercession: 55-9130-03
(Superseded to 55-9130-03)

$

$

Not available

2

Toro 57-7300

UPPER CONTROL ROD *

$

$

Not available

3

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, Qty 8

0

4

Toro 57-7460

DISCONTINUED

$

$

Not available

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

6

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 9

0

7

Toro 57-7450

DISCONTINUED

$

$

Not available

8

Toro 57-7280

UPPER HANDLE *

$289.99

$

Usually ships in 3-6 days

0

9

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

10

Toro 57-7440

DISCONTINUED

$

$

Not available

11

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

12

Toro 49-1630

SPACER-SUPPORT

$9.49

$

Usually ships in 3-6 days

0

13

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

14

Toro 2410-53

BLACK CAPLUG

$

$

Not available

15

Toro 39-7790

DISCONTINUED

$

$

Not available

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

17

Toro 39-9762

AIR CLEANER HOSE

$72.99

$

Usually ships in 3-6 days

0

18

Toro 5-1902

DISCONTINUED

$

$

Not available

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

20

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

21

Toro 57-7420

DISCONTINUED

$

$

Not available

22

Toro 32112-13

PUSHNUT

$2.49

$

Usually ships in 3-6 days

0

23

Toro 57-7230

DISCONTINUED

$

$

Not available

24

Toro 23-1120

WASHER

$21.99

$

Usually ships in 3-6 days

0

25

Toro 57-7060

DISCONTINUED

$

$

Not available

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

28

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 6

0
