58431 - Toro Edger, 3.5hp (SN: 010000001 - 019999999) (1991) ENGINE BRIGGS & STRATTON MODEL NO. 80332 TYPE NO. 1655-01 Parts Diagram

Edger, 3.5hp

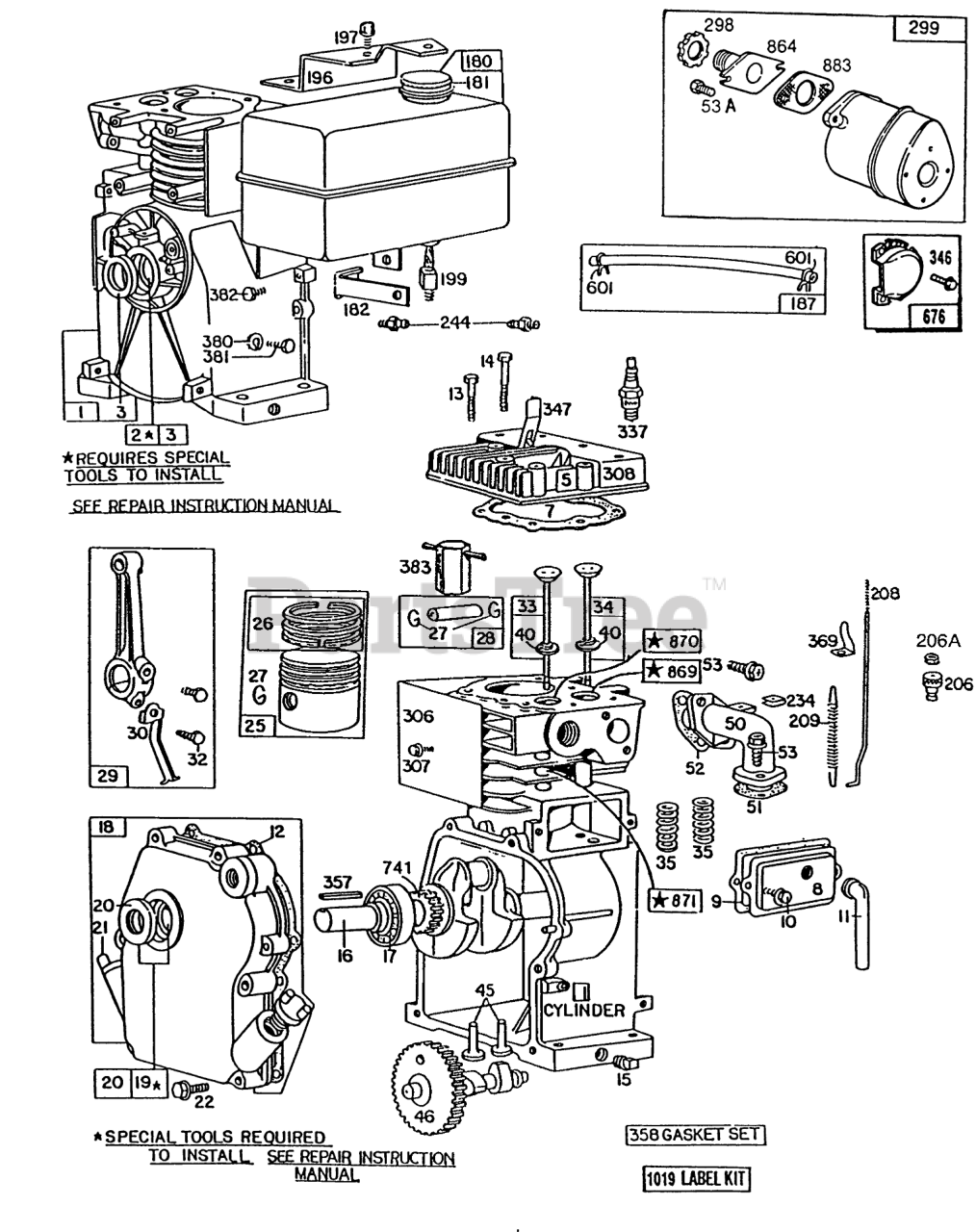

ENGINE BRIGGS & STRATTON MODEL NO. 80332 TYPE NO. 1655-01 Parts Diagram

  • Title

1

Briggs & Stratton 395879

Cylinder Assembly

$199.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, Qty 6

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 210812

Head-Cylinder
(Superseded to 213953)

$

$

Not available

7

Briggs & Stratton 272167

Gasket-Cylinder Head

$7.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

In Stock, Qty 6

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

$3.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 271489

Tube-Breather

$8.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270833

Gasket-Crankcase-.015" thick
(Superseded to 692218)

$

$

Not available

Briggs & Stratton 270895

Gasket-Crankcase .005"

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 270896

Gasket-Crankcase .009"

$5.99

$

Usually ships in 2-12 days

0

13

Toro 91111

Screw-Cylinder Head

$

$

Currently unavailable

14

Briggs & Stratton 93113

Screw-Cylinder Head
(Superseded to 690912)

$3.99

$

In Stock, Qty 15

0

15

Briggs & Stratton 91249

Plug-Pipe
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 397250

Crankshaft Note: To Replace Crankshaft Gear Pin, Order Part No.230978. (Incl. Pin 230978)
(Superseded to 493633)

$148.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99158

Bearing-Ball

$20.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 395259

Crankcase Cover Assembly
(Superseded to 497504)

$167.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293708

Bushing Assy.-Crankcase Cover (Incl. Bushing, Part No. 220538
(Superseded to 796961)

$21.99

$

In Stock, Qty 6

0

20

Briggs & Stratton 393812

Seal-Oil

$5.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 295587

Piston Assy.-Std.

$48.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295588

Piston Assy.-.010" O.S.

$60.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295589

Piston Assy. .020" O.S.

$132.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295590

Piston Assy.-.030" O.S.

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294232

Ring Set (Std.)

$39.99

$

In Stock, only 3 left!

0

Briggs & Stratton 294224

Ring Set .010" OS.

$28.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 294225

Ring Set .020" OS.

$64.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 294226

Ring Set .030" OS.

$57.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 4 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 294367

Rod Assy.-Connecting
(Superseded to 699655)

$39.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 220670

Dipper-Conn. Rod
(Superseded to 691719)

$7.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94404

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Valve Exhaust

$23.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 296677

Valve-Intake (Incl. Ref.40)

$24.99

$

In Stock, only 4 left!

0

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, Qty 9

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 18

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 394800

Gear-Cam
(Superseded to 793149)

$74.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 210810

61762/95-5929-5 WHE

$31.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 68987

Gasket-Carburetor

$5.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 27355

Gasket-Carburetor
(Superseded to 27355S)

$3.99

$

In Stock, Qty 18

0

53

Briggs & Stratton 94442

Screw-Carburetor

$6.99

$

Usually ships in 2-12 days

0

53A

Briggs & Stratton 94523

Screw-Muffler
(Superseded to 692336)

$7.99

$

In Stock, only 2 left!

0

93

Briggs & Stratton 23230

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 292945

Tank Assy., Fuel

$159.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 69221

Cap-Fuel Tank
(Superseded to 791545)

$11.99

$

In Stock, only 3 left!

0

182

Briggs & Stratton 220195

Bracket-Fuel Tank

$17.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

196

Briggs & Stratton 220369

Support-Fuel Tank

$15.99

$

Usually ships in 2-12 days

0

197

Briggs & Stratton 93083

Screw, Tank Mtg., Sem

$1.49

$

Usually ships in 2-12 days

0

199

Briggs & Stratton 295896

Outlet-Fuel Tank (Incl. Strainer)

$15.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 230149

Nut-Control Rod

$35.99

$

Usually ships in 2-12 days

0

206A

Briggs & Stratton 93422

Nut-Stop
(Superseded to 691079)

$

$

Not available

208

Briggs & Stratton 230194

Rod-Control

$

$

Not available

209

Briggs & Stratton 26925

Spring-Governor
(Superseded to 691599)

$8.49

$

Usually ships in 2-12 days

0

234

Briggs & Stratton 220730

Clip-Control Rod

$7.49

$

Usually ships in 2-12 days

0

244

Briggs & Stratton 230318

Connector-Fuel
(Superseded to 691764)

$14.99

$

In Stock, Qty 5

0

298

Briggs & Stratton 220859

Locknut-Muffier
(Superseded to 691720)

$5.49

$

In Stock, only 1 left!

0

299

Briggs & Stratton 493288

Muffler-Exhaust Note: Muffler Guard, Part No. 493000 Uses: Screw (Guard to Muffler) Part No. 94186, Washer (Guard to Bracket) Part No. 62199, Screw (Guard to Bracket) Part No. 93873, Muffler (Brace Part No. 223127

$36.99

$

In Stock, Qty 5

0

306

Briggs & Stratton 220478

Muffler-Exhaust

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93758

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 223390

Cover-Cylinder Head

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 298809

Plug Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 220884

Switch-Stop

$11.99

$

In Stock, only 1 left!

0

357

Briggs & Stratton 91539

Key
(Superseded to 692191)

$5.49

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 297275

Gasket Set
(Superseded to 495602)

$42.99

$

Usually ships in 2-12 days

0

369

Briggs & Stratton 220705

Spring-Friction Control

$2.99

$

Usually ships in 2-12 days

0

380

Briggs & Stratton 62199

Washer-Plain
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

381

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

382

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

676

Briggs & Stratton 393760

Deflector-Exhaust

$9.49

$

In Stock, only 1 left!

0

741

Briggs & Stratton 261721

Gear-Timing

$13.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 492232

Adapter-Muffler
(Superseded to 690776)

$25.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 211172

Seat-Ex. Valve
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Exhaust Valve
(Superseded to 691702)

$8.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231348

Guide-Exhaust Valve

$31.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272203

Gasket
(Superseded to 691314)

$6.49

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 491069

Kit-Label

$36.99

$

Usually ships in 2-12 days

0
