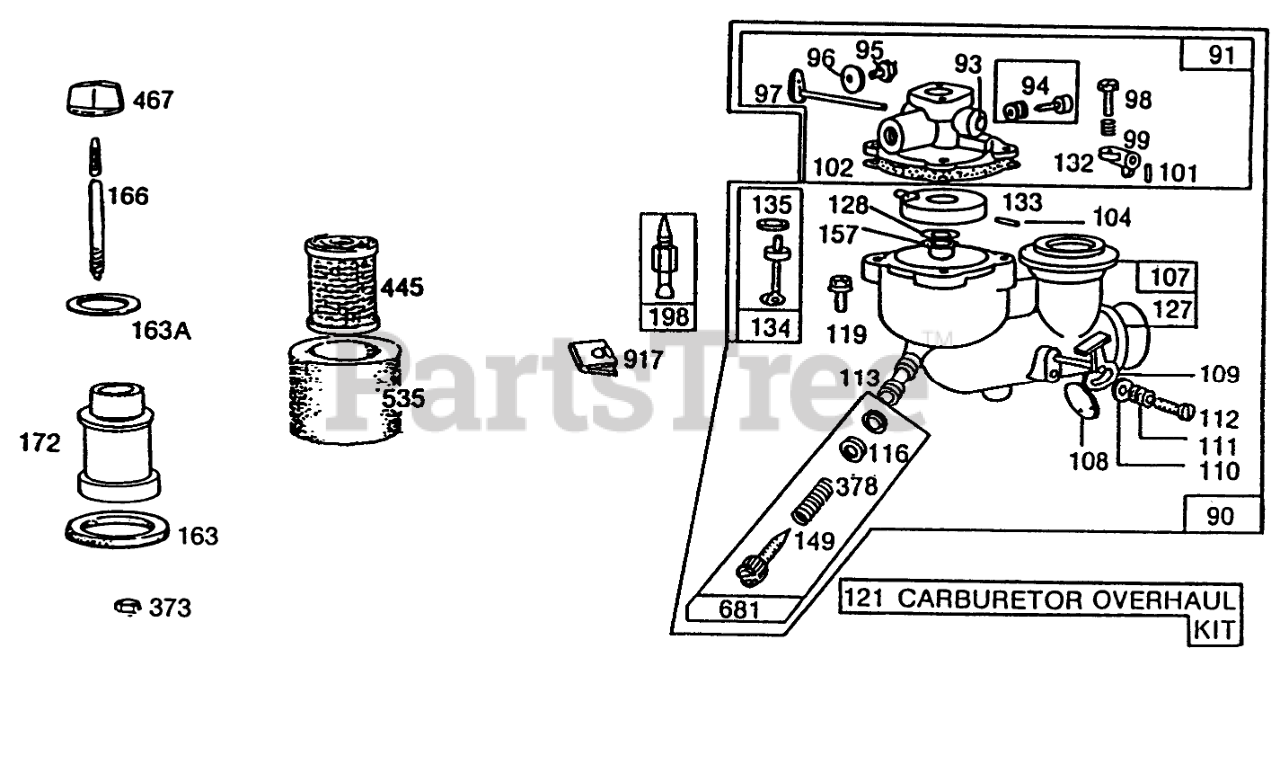

58431 - Toro Edger, 3.5hp (SN: 010000001 - 019999999) (1991) ENGINE BRIGGS & STRATTON MODEL NO. 80332 TYPE NO. 1655-01 Parts Diagram

Edger, 3.5hp

ENGINE BRIGGS & STRATTON MODEL NO. 80332 TYPE NO. 1655-01 Parts Diagram

  • Title

90

Briggs & Stratton 295607

Carburetor Assy.

$

$

Not available

91

Briggs & Stratton 295608

Housing Assy., Throttle

$114.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23230

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

Valve Assembly

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 222972

Valve-Throttle

$4.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 295436

Shaft/Lever-Throttle

$11.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27917

Gasket-Carburetor Body

$6.49

$

In Stock, only 1 left!

0

104

Briggs & Stratton 23114

Pin-Float Hinge

$4.99

$

Usually ships in 2-12 days

0

107

Briggs & Stratton 397870

Carburetor Body Assembiy

$

$

Not available

108

Briggs & Stratton 220897

Valve-Choke

$7.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 294874

Shaft and Lever Assy.

$12.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 220899

Washer-Choke Lever

$3.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26229

Spring-Choke Lever

$4.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 23270

432/434/13933A GILS

$4.49

$

Usually ships in 2-12 days

0

113

Briggs & Stratton 231359

Nozzle-Carburetor

$23.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

O-Ring
(Superseded to 691898)

$5.49

$

In Stock, only 4 left!

0

119

Briggs & Stratton 93347

Screw

$2.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 398992

Carburetor Overhaul Kit

$38.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 220352

Plug-Welch
(Superseded to 691718)

$13.99

$

In Stock, only 4 left!

0

128

Briggs & Stratton 210811

Venturi-Carburetor

$6.49

$

Usually ships in 2-12 days

0

132

Briggs & Stratton 212904

Stop-Throttle
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 293477

Float-Carburetor

$29.99

$

In Stock, only 1 left!

0

134

Briggs & Stratton 293478

Valve & Seat-Fuel Inlet

$29.99

$

In Stock, only 1 left!

0

135

Briggs & Stratton 68877

Gasket, Fuel Inlet Valve Seat

$6.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 261357

Spring-Needle Valve

$4.49

$

Usually ships in 2-12 days

0

157

Briggs & Stratton 27840

Gasket-Venturi

$4.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271042

Gasket-Air Cleaner Mount

$8.49

$

Usually ships in 2-12 days

0

163A

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

$3.99

$

In Stock, Qty 13

0

166

Briggs & Stratton 231314

Stud-Air Cleaner
(Superseded to 696244)

$16.99

$

Usually ships in 2-12 days

0

172

Briggs & Stratton 280213

Spacer-Air Cleaner

$8.49

$

In Stock, only 1 left!

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

378

Briggs & Stratton 22032

Washer, Needle Valve Pkg.

$

$

Not available

445

Briggs & Stratton 396424

Filter-Air
(Superseded to 396424S)

$13.99

$

In Stock, Qty 6

0

467

Briggs & Stratton 212706

Knob-Air Cleaner
(Superseded to 691668)

$5.49

$

In Stock, only 4 left!

0

535

Briggs & Stratton 271466

Filter-Air

$4.49

$

In Stock, Qty 12

0

681

Briggs & Stratton 399619

Needle Valve Assembly

$15.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 223271

Valve Handle
(Superseded to 691737)

$7.49

$

In Stock, only 1 left!

0
