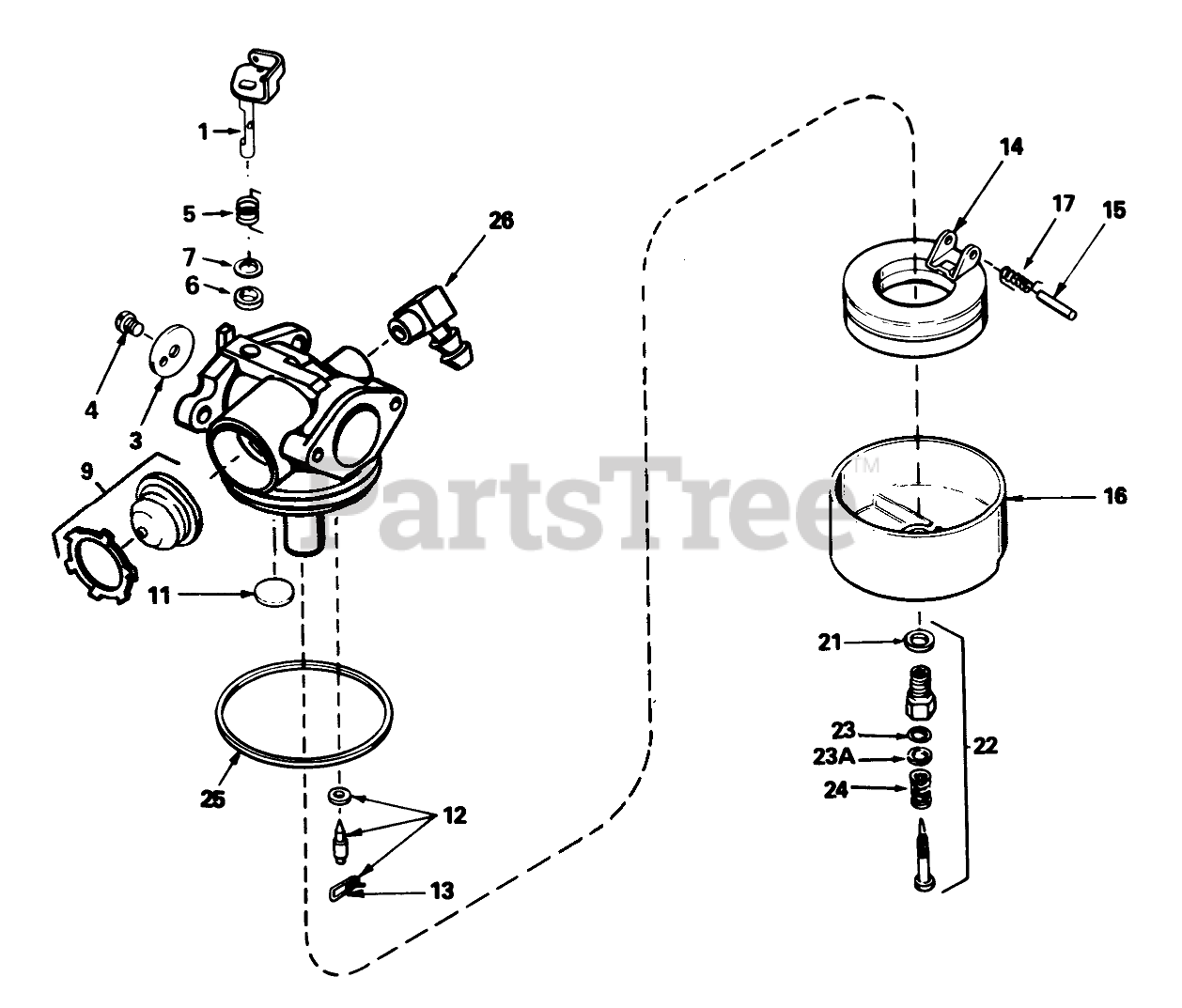

Parts Home > Toro > Edgers > 58432 - Toro 2-Cycle Edger (SN: 008000001 - 008999999) (1988) > CARBURETOR TECUMSEH NO. 632515

58432 - Toro 2-Cycle Edger (SN: 008000001 - 008999999) (1988)

2-Cycle Edger

58432 - Toro 2-Cycle Edger (SN: 008000001 - 008999999) (1988) > Parts Diagrams (5) > CARBURETOR TECUMSEH NO. 632515

  • Title
632130

1

Shaft/Lever-Throttle

Part# 632130

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $6.02

631622

3

Shutter-Throttle

Part# 631622

OEM Warranty Repair Part for Tecumseh

Currently unavailable

650506

4

Screw-Shutter

Part# 650506

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.02

632169

5

Spring-Trottle, Return

Part# 632169

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 8 to 14 business days

Your price: $1.45

631183

6

Seal-Dust

Part# 631183

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.45

631184

7

Washer-Seal, Dust

Part# 631184

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.45

632433

9

Bulb-Primer

Part# 632433 (Superseded to 632433A)

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $5.77

631027

11

Plug-Welch, Atmospheric Vent

Part# 631027

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.37

631021

12

Inlet Needle Assembly (Incl. Ref. #13)

Part# 631021 (Superseded to 631021B)

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $3.63

631022

13

Clip-Spring

Part# 631022

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.45

632019

14

Float

Part# 632019 (Superseded to 632019A)

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $6.82

631024

15

Shaft-Float

Part# 631024

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $2.05

631867

16

Bowl-Float (no drain)

Part# 631867

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $2.73

632386

17

Spring-Float, Dampening

Part# 632386

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $2.82

27110

21

Washer-Bowl Nut

Part# 27110 (Superseded to 27110A)

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.40

631583

22

Main Adjust Screw Assy. (Incl. Ref. #21, 23, 23A & 24)

Part# 631583

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 8 to 14 business days

Your price: $11.88

630740

23

"O"Ring

Part# 630740

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.73

630739

23A

Washer

Part# 630739

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.45

630738

24

Spring

Part# 630738

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.45

631028

25

O Ring-Bowl, Float

Part# 631028 (Superseded to 631028A)

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $1.28

631807

26

Fitting-Fuel

Part# 631807

OEM Warranty Repair Part for Tecumseh

Usually leaves our warehouse in 1 business day

Your price: $7.03
