58432 - Toro 2-Cycle Edger (SN: 008000001 - 008999999) (1988) Engine Tecumseh Model No. Ah600-1654n Parts Diagram

2-Cycle Edger

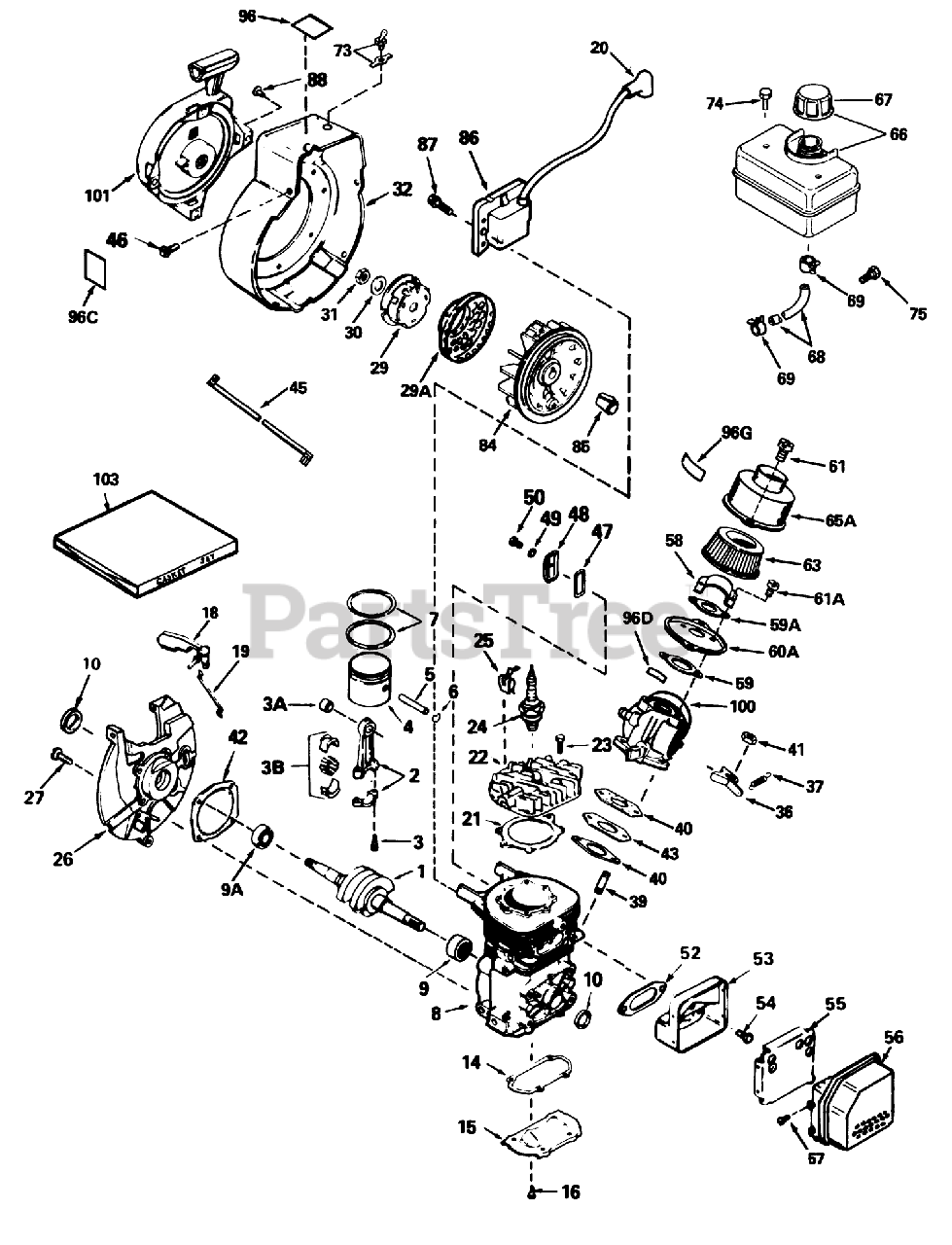

Engine Tecumseh Model No. Ah600-1654n Parts Diagram

  • Title

1

Toro 290609

Crankshaft

$

$

Currently unavailable

2

Toro 310235B

Rod Assy.-Connecting (Incl. Ref. #3, 3A 3B)

$

$

Currently unavailable

3

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

3A

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

3B

Toro 530150

Needle Bearing and Liner Set (37 Needles)

$

$

Currently unavailable

4

Toro 310283

Piston

$

$

Currently unavailable

5

Toro 310264

Pin-Piston

$

$

Currently unavailable

6

Toro 310167

Ring-Retaning

$

$

Currently unavailable

7

Toro 310190

Ring Set

$

$

Currently unavailable

8

Cylinder Block Assy. (Order short block if replacement is required)

$

$

Not available

9

Toro 530105

Bearing-Cartridge

$

$

Currently unavailable

9A

Toro 530110

Bearing-Ball

$

$

Currently unavailable

10

Toro 510319

Seal-Oil

$

$

Currently unavailable

14

Toro 510323

Cover

$

$

Currently unavailable

15

Toro 570644

Plate-Cover

$

$

Currently unavailable

16

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

18

Toro 490291A

Vane-Air

$

$

Currently unavailable

19

Toro 490294

Link-Governor

$

$

Currently unavailable

20

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

21

Toro 510274

Gasket, Head

$

$

Currently unavailable

22

Toro 250240A

Head-Cylinder

$

$

Currently unavailable

23

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

24

Toro 611049

Spark Plug-Resistor (R C J 8Y)

$

$

Currently unavailable

25

Toro 611034

Clip

$

$

Currently unavailable

26

Toro 350396

Base Assy.-Blower Housing (Incl. Ref. #10)

$

$

Currently unavailable

27

Toro 650911

Screw (T-30, 1/4-20 x 5/8)

$

$

Currently unavailable

29

Toro 590551

Cup-Starter

$

$

Currently unavailable

29A

Toro 590417

Screen, Air

$

$

Currently unavailable

30

Toro 650815

Washer-Belleville

$

$

Currently unavailable

31

Toro 650390

Nut-Flywheel

$

$

Currently unavailable

32

Toro 350434

Housing-Blower

$

$

Currently unavailable

36

Toro 570645

Lever-Adjusting, Rpm

$

$

Currently unavailable

37

Toro 490316

Spring-Governor

$

$

Currently unavailable

39

Toro 650916

Stud-Carburetor

$

$

Currently unavailable

40

Toro 510326

Gasket-Carburetor

$

$

Currently unavailable

41

Toro 650457

Locknut

$

$

Currently unavailable

42

Toro 510292

Gasket, Shroud Base

$

$

Currently unavailable

43

Toro 570438A

Spacer

$

$

Currently unavailable

45

Toro 611134

Wire-Ground

$

$

Currently unavailable

46

Toro 650356

Screw-Hex, Hd.

$

$

Currently unavailable

47

Toro 510325

Gasket-Cover

$

$

Currently unavailable

48

Toro 570647

Comp. Release Cover

$

$

Currently unavailable

49

Toro 650838

Washer

$

$

Currently unavailable

50

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

52

Toro 510230

Gasket-Muffler

$

$

Currently unavailable

53

Toro 390292

Base-Muffler

$

$

Currently unavailable

54

Toro 650911

Screw (T-30, 1/4-20 x 5/8)

$

$

Currently unavailable

55

Toro 390272

Baffle-Muffler

$

$

Currently unavailable

56

Toro 390267

Cover Muffler

$

$

Currently unavailable

57

Toro 650578

Screw

$

$

Currently unavailable

58

Toro 570434

Baffle-Carburetor

$

$

Currently unavailable

59

Toro 27272

Gasket

$

$

Currently unavailable

59A

Toro 510206

Gasket

$

$

Currently unavailable

60A

Toro 31691

Bracket

$

$

Currently unavailable

61

Toro 650152

Screw

$

$

Currently unavailable

61A

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

63

Toro 30727

Element

$

$

Currently unavailable

65A

Toro 450251

Cover-Air Cleaner

$

$

Currently unavailable

66

Toro 35584

Tank Assembly-Fuel (Incl. Ref. #250 253)
(Superseded to 704775)

$

$

Not available

67

Toro 410259

Cap-Fuel

$

$

Currently unavailable

68

Toro 30705

Line-Fuel

$

$

Currently unavailable

69

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

73

Toro 610650B

Switch

$

$

Currently unavailable

74

Toro 650578

Screw

$

$

Currently unavailable

75

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

84

Toro 611112

Flywheel
(Superseded to 611113)

$

$

Not available

85

Toro 611032

Blade (20 inch)

$

$

Currently unavailable

86

Toro 34443A

Solid State

$

$

Currently unavailable

87

Toro 650814

Screw

$

$

Currently unavailable

88

Rivet-Pop (obtain locally)

$

$

Not available

96

Toro 550223

Decal-Name

$

$

Currently unavailable

96C

Toro 550220

Decal-Fuel Mixture

$

$

Currently unavailable

96D

Toro 34144

Decal-Primer

$

$

Currently unavailable

96G

Toro 34612

Decal-Air Cleaner

$

$

Currently unavailable

100

Toro 632515

Carburetor Assembly (Incl. Ref. #40)

$

$

Currently unavailable

101

Toro 590537

Starter-Rewind

$

$

Currently unavailable

1

Toro 590409A

Screw

$

$

Currently unavailable

2

Toro 590410

Retainer

$

$

Currently unavailable

3

Toro 590411

Spring-Brake

$

$

Currently unavailable

4

Toro 590148

Dog-Starter

$

$

Currently unavailable

5

Toro 590412

Spring-Dog

$

$

Currently unavailable

6

Toro 590413A

Pulley

$

$

Currently unavailable

7

Toro 590414

Spring Keeper Assy

$

$

Currently unavailable

8

Toro 590536

Housing Assy., Starter (Incl. Ref. #1)

$

$

Currently unavailable

9

Toro 590535

Rope-Starter (98 cut to length)

$

$

Currently unavailable

10

Toro 590452

Handle-Starter

$

$

Currently unavailable
