58432 - Toro 2-Cycle Edger (SN: 008000001 - 008999999) (1988)

2-Cycle Edger

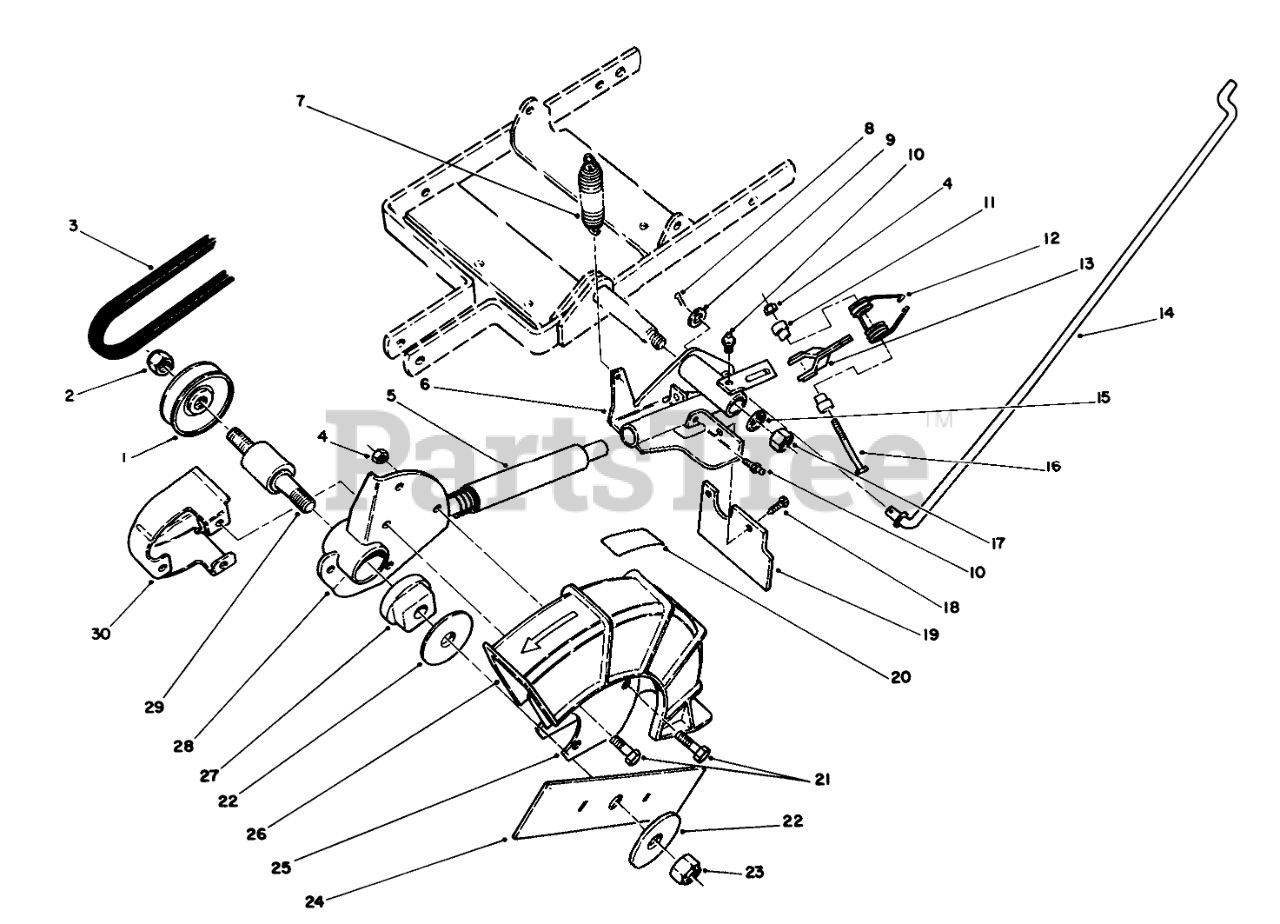

58432 - Toro 2-Cycle Edger (SN: 008000001 - 008999999) (1988) > Parts Diagrams (5) > PIVOT ARM ASSEMBLY

  • Title
57-7410

1

PULLEY

Part# 57-7410

OEM Warranty Repair Part for Toro

Not available

3296-28

2

NUT-LOCK, NI

Part# 3296-28

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.29

52-0320

3

V-BELT

Part# 52-0320

OEM Warranty Repair Part for Toro

Not available

3296-16

4

NUT-LOCK, NI

Part# 3296-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.06

11-8249

5

SPRING & BELLOW ASM

Part# 11-8249

OEM Warranty Repair Part for Toro

Not available

57-7200

6

PIVOT ARM WELDMENT B

Part# 57-7200

OEM Warranty Repair Part for Toro

Not available

52-0610

7

EXT. SPRING

Part# 52-0610

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.45

3272-6

8

PIN-COTTER

Part# 3272-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.21

3256-24

9

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

302-5

10

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.36

57-7080

11

SPACER-PIVOT LEVER

Part# 57-7080

OEM Warranty Repair Part for Toro

Not available

57-7250

12

TORSION SPRING

Part# 57-7250

OEM Warranty Repair Part for Toro

Not available

57-7120

13

LEVER WA

Part# 57-7120

OEM Warranty Repair Part for Toro

Not available

57-7290

14

LOWER CONTROL ROD

Part# 57-7290

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.04

36-4780

15

WASHER-PLAIN

Part# 36-4780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.72

321-18

16

SCREW-HH

Part# 321-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.55

3296-25

17

NUT-LOCK, NI

Part# 3296-25

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.08

3290-446

18

PANEL FASTENER

Part# 3290-446

OEM Warranty Repair Part for Toro

Not available

52-0310

19

RUBBER GUARD

Part# 52-0310

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.45

68-7410

20

DECAL-BLADE

Part# 68-7410

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.18

49-2040

21

SCREW-HWHTF

Part# 49-2040

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.44

55-7960

22

WASHER-LARGE

Part# 55-7960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.97

3219-5

23

NUT-HEX

Part# 3219-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.60

55-7930

24

10" EDGER BLADE B

Part# 55-7930

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.42

57-7330

25

GUARD PLATE

Part# 57-7330

OEM Warranty Repair Part for Toro

Not available

12-4629

26

Guard-Blade (Incl. Ref. #20)

Part# 12-4629

OEM Warranty Repair Part for Toro

Not available

52-0720

27

BRG SHIELD

Part# 52-0720

OEM Warranty Repair Part for Toro

Not available

52-0410

28

HUB ASM

Part# 52-0410

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $327.13

57-7320

29

SPINDLE ASM

Part# 57-7320

OEM Warranty Repair Part for Toro

Not available

52-0500

30

PULLEY GUARD WA

Part# 52-0500

OEM Warranty Repair Part for Toro

Not available

12-4359

Spindle & Hub Assembly (Incl. Ref. #28 & 29)

Part# 12-4359

OEM Warranty Repair Part for Toro

Not available
