58432 - Toro 2-Cycle Edger (SN: 009000001 - 009999999) (1989) Carburetor Tecumseh No. 632515 Parts Diagram

2-Cycle Edger

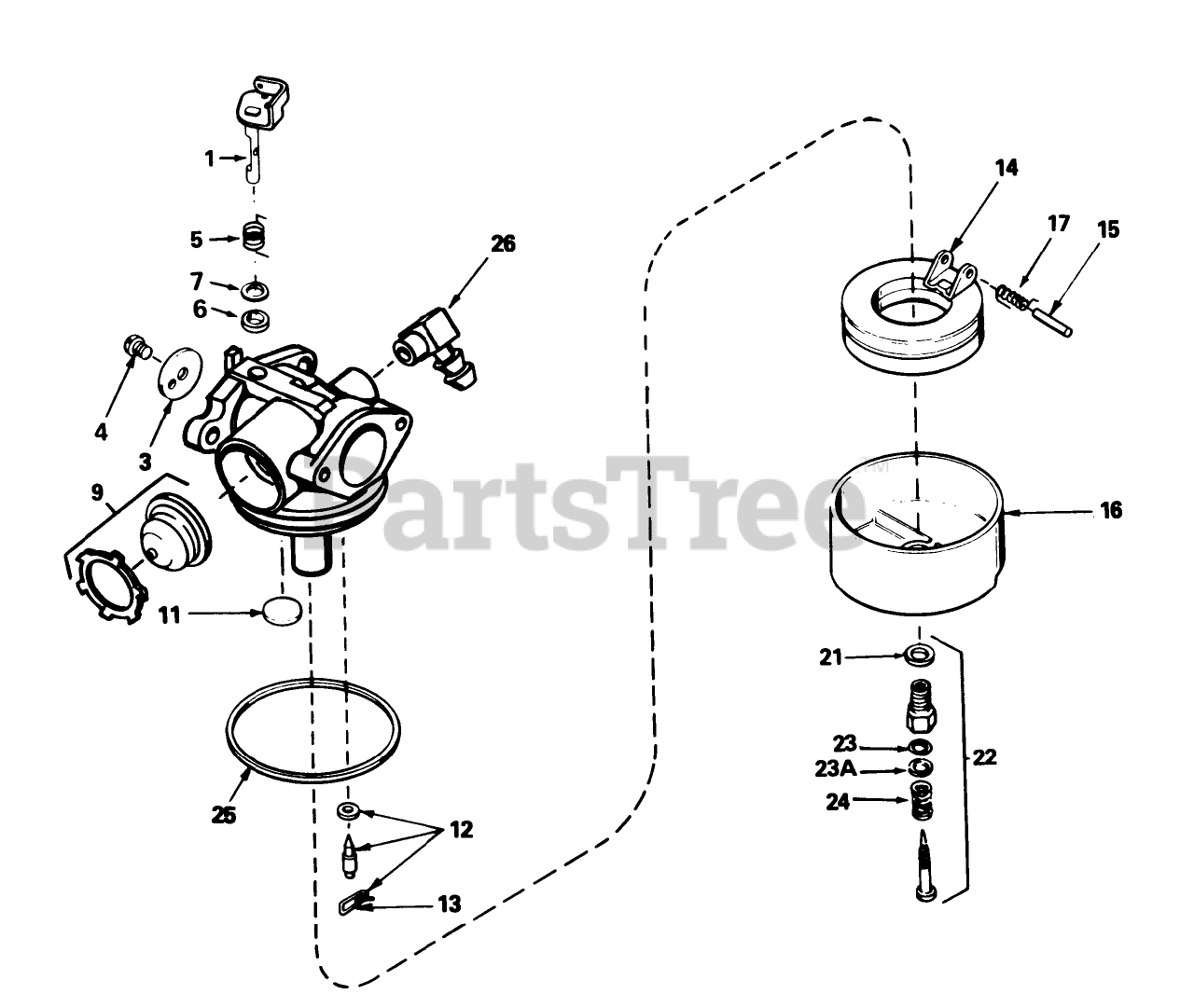

Carburetor Tecumseh No. 632515 Parts Diagram

  • Title

1

Toro 632523

Shaft/Lever Throttle

$

$

Currently unavailable

3

Toro 631622

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 632169

Spring-Trottle, Return

$

$

Currently unavailable

6

Toro 631183

Seal-Dust

$

$

Currently unavailable

7

Toro 631184

Washer-Seal, Dust

$

$

Currently unavailable

9

Toro 632433

Bulb-Primer

$

$

Currently unavailable

11

Toro 631027

Plug-Welch, Atmospheric Vent

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

$

$

Currently unavailable

13

Toro 631022

Clip-Spring

$

$

Currently unavailable

14

Toro 632019

Float

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

$

$

Currently unavailable

16

Toro 631867

Bowl-Float (no drain)

$

$

Currently unavailable

17

Toro 632386

Spring-Float, Dampening

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

$

$

Currently unavailable

22

Toro 631583

Adjustment Screw Assembly, Main (Incl. Nos. 5A, 21, 23 27)

$

$

Currently unavailable

23

Toro 630740

ORing

$

$

Currently unavailable

23A

Toro 630739

Washer

$

$

Currently unavailable

24

Toro 630738

Spring

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

$

$

Currently unavailable

26

Toro 631807

Fitting-Fuel

$

$

Currently unavailable
