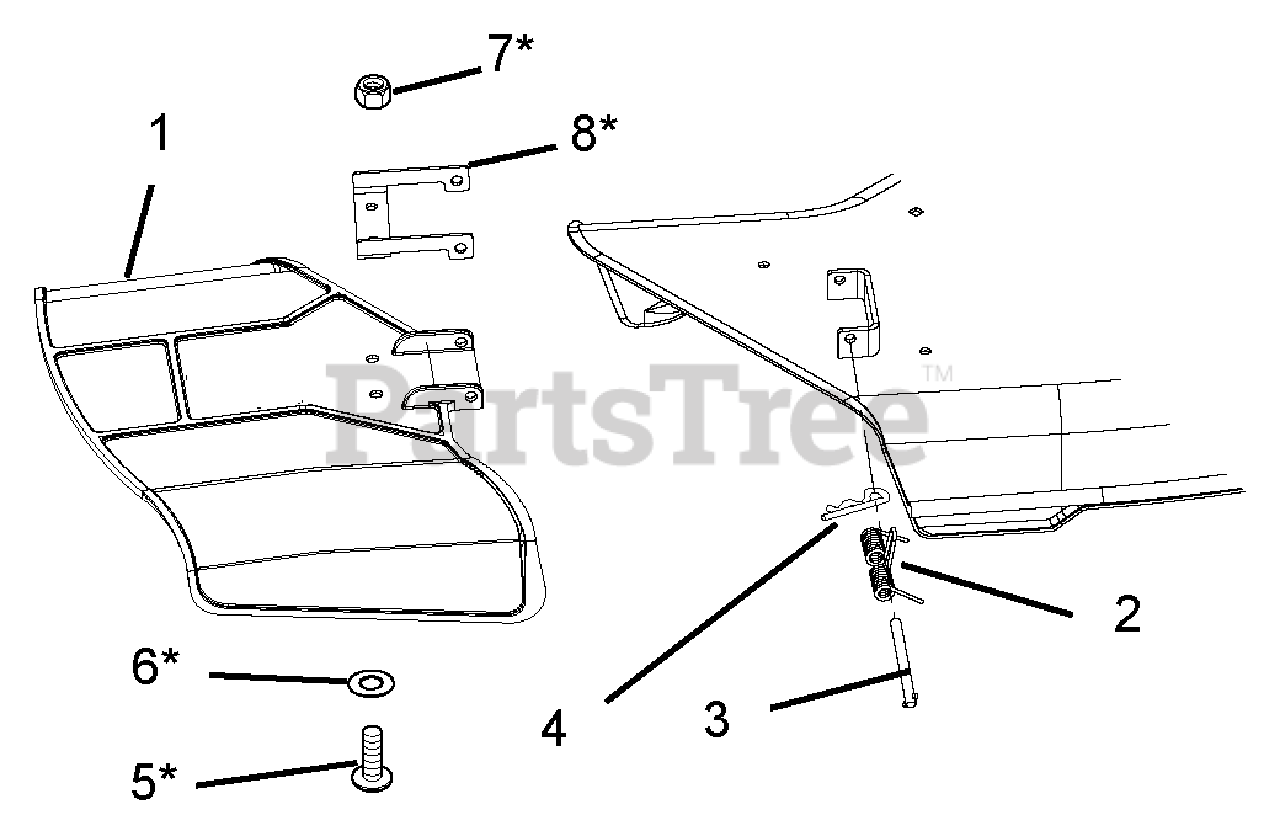

585171 - Ariens Plastic Discharge Chute > Parts Diagrams (1) > Plastic Discharge Chute Kit PN 51517100

MOLDED CHUTE, ZOOM

Part# 00499900 (Superseded to 03994300) 

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

SPRING, TORSION

Part# 01258100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

PIN, 5/16 X 3.88"

Part# 06800002

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

PIN-HAIR INT .08X.18X1.18 YWZC

Part# 06713500

OEM Warranty Repair Part for Ariens

SCR-SKH .31-18X.75 BTNHD YWZC

Part# 05920900

Note: Comes pre-assembled.

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

Note: Comes pre-assembled.

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

Note: Comes pre-assembled.

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

CHUTE REINFORCEMENT

Part# 00662651

Note: Comes pre-assembled.

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

ZOOM DISCHARGE CHUTE, PLASTIC

Part# 51517100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days
