586 (250-586-100) - Cub Cadet Edger Engine (1990) B&S 3 HP 080202-2288-01 Part 1 Parts Diagram

Edger Engine

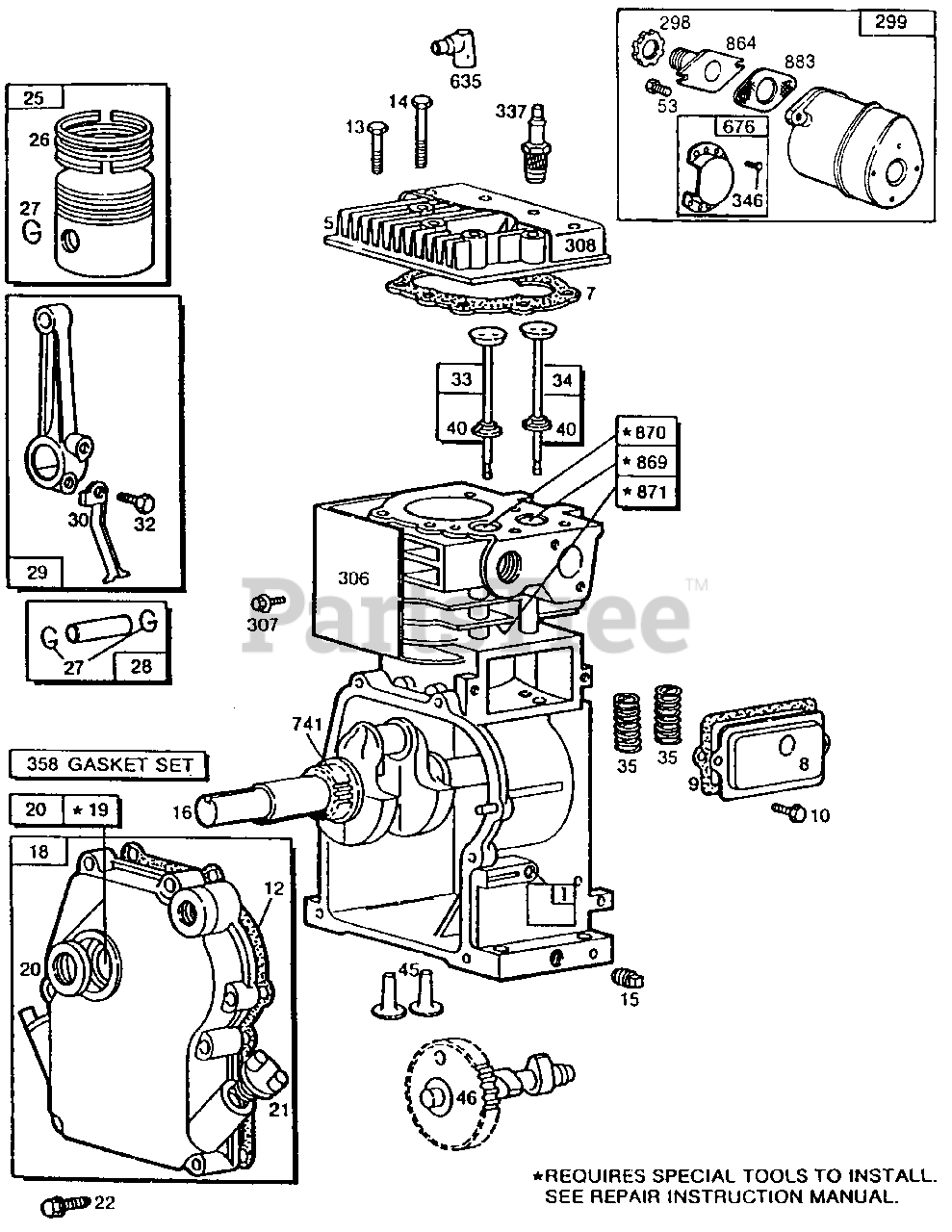

B&S 3 HP 080202-2288-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-395879

Cylinder Assembly

$

$

Currently unavailable

5

Cub Cadet BS-210812

Head-Cylinder

$

$

Currently unavailable

7

Cub Cadet BS-27670

Gasket-Cylinder Head

$

$

Not available

8

Cub Cadet BS-294178

Breather-Valve Chamber
(Superseded to BS-791779)

$15.99

$

In Stock, Qty 6

0

9

Cub Cadet BS-27549

Gasket-Valve Cover

$

$

Not available

10

Cub Cadet BS-93394

Screw-Valve Cover Mounting Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-270833

Gasket-Crankcase-.015" Thick (Standard)
(Superseded to BS-692218)

$

$

Not available

Cub Cadet BS-270895

Gasket-Crankcase-.005" Thick

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270896

Gasket-Crankcase-.009" Thick

$5.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-93111

Screw-Cylinder Head (1-15/16" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet BS-93113

Screw-Cylinder Head (2-5/16" Long)
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 16

0

15

Cub Cadet BS-91249

Plug-Pipe, 1/4" Std., Square Head
(Superseded to BS-691686)

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet BS-399010

Crankshaft

$

$

Not available

18

Cub Cadet BS-394820

Cover Assembly-Crankcase

$

$

Currently unavailable

19

Cub Cadet BS-293708

Bushing-Crankcase Cover
(Superseded to BS-399269)

$21.99

$

In Stock, Qty 6

0

20

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-66768

Plug-Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet BS-93032

Screw-Crankcase Cover Mounting Sem

$

$

Not available

25

Cub Cadet BS-295587

Piston Assembly-Std.

$48.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-295588

Piston Assembly-.010" O.S.

$

$

Currently unavailable

Cub Cadet BS-295589

Piston Assembly-.020" O.S.

$

$

Currently unavailable

Cub Cadet BS-295590

Piston Assembly-.030" O.S.

$

$

Currently unavailable

26

Cub Cadet BS-294232

Ring Set-Std. Piston

$39.99

$

In Stock, only 3 left!

0

Cub Cadet BS-294224

Ring Set-.010" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-294225

Ring Set-.020" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-294226

Ring Set-.030" O.S. Piston

$

$

Currently unavailable

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298908

Pin Assembly-Piston-Standard

$4.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298909

Pin Assembly-Piston-.005" O.S.

$8.99

$

In Stock, only 4 left!

0

29

Cub Cadet BS-294367

Rod Assembly-Connecting

$

$

Not available

30

Cub Cadet BS-220670

Dipper-Connecting Rod

$

$

Not available

32

Cub Cadet BS-94404

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-296676

Valve-Exhaust

Note: (Grooved Stem-Includes Retainer No. BS-93312)

$23.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-296677

Valve-Intake

Note: (Grooved Stem-Includes Retainer No. BS-93312)

$24.99

$

In Stock, Qty 5

0

35

Cub Cadet BS-260552

Spring-Valve

$5.49

$

In Stock, Qty 9

0

40

Cub Cadet BS-93312

Retainer-Valve Spring Used with valves with groove in stem.
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

45

Cub Cadet BS-230173

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-394800

Gear-Cam

$

$

Not available

53

Cub Cadet BS-94523

Muffler Mounting Screw

$

$

Not available

298

Cub Cadet BS-220859

Lock Nut-Muffler

$

$

Not available

299

Cub Cadet BS-492591

Muffler-Exhaust (Lo-Tone)

$

$

Not available

306

Cub Cadet BS-220478

Shield-Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93490

Screw-Cylinder Shield Mounting Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

308

Cub Cadet BS-223390

Cover-Cylinder Head

$

$

Currently unavailable

337

Cub Cadet 759-3331

Plug-Spark 1 1/2" High-37-42 MM (with Gasket)

$3.99

$

In Stock, only 2 left!

0

346

Cub Cadet BS-93705

Screw-Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-397144

Gasket Set

$

$

Not available

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 17

0

676

Cub Cadet BS-393760

Deflector-Muffler

$

$

Currently unavailable

741

Cub Cadet BS-261533

Gear-Timing

$

$

Not available

864

Cub Cadet BS-492232

Muffler Adapter

$

$

Not available

869

Cub Cadet BS-211172

Seat-Intake Valve (Standard)

$

$

Not available

870

Cub Cadet BS-211291

Seat-Exhaust Valve (Standard)

$

$

Not available

871

Cub Cadet BS-231348

Guide-Exhaust Valve

$31.99

$

Usually ships in 2-12 days

0

883

Cub Cadet BS-272203

Gasket-Muffler

$

$

Not available
