586 (252-586-100) - Cub Cadet Edger (1992) Optional Steel Wheels with Bearings Parts Diagram

Edger

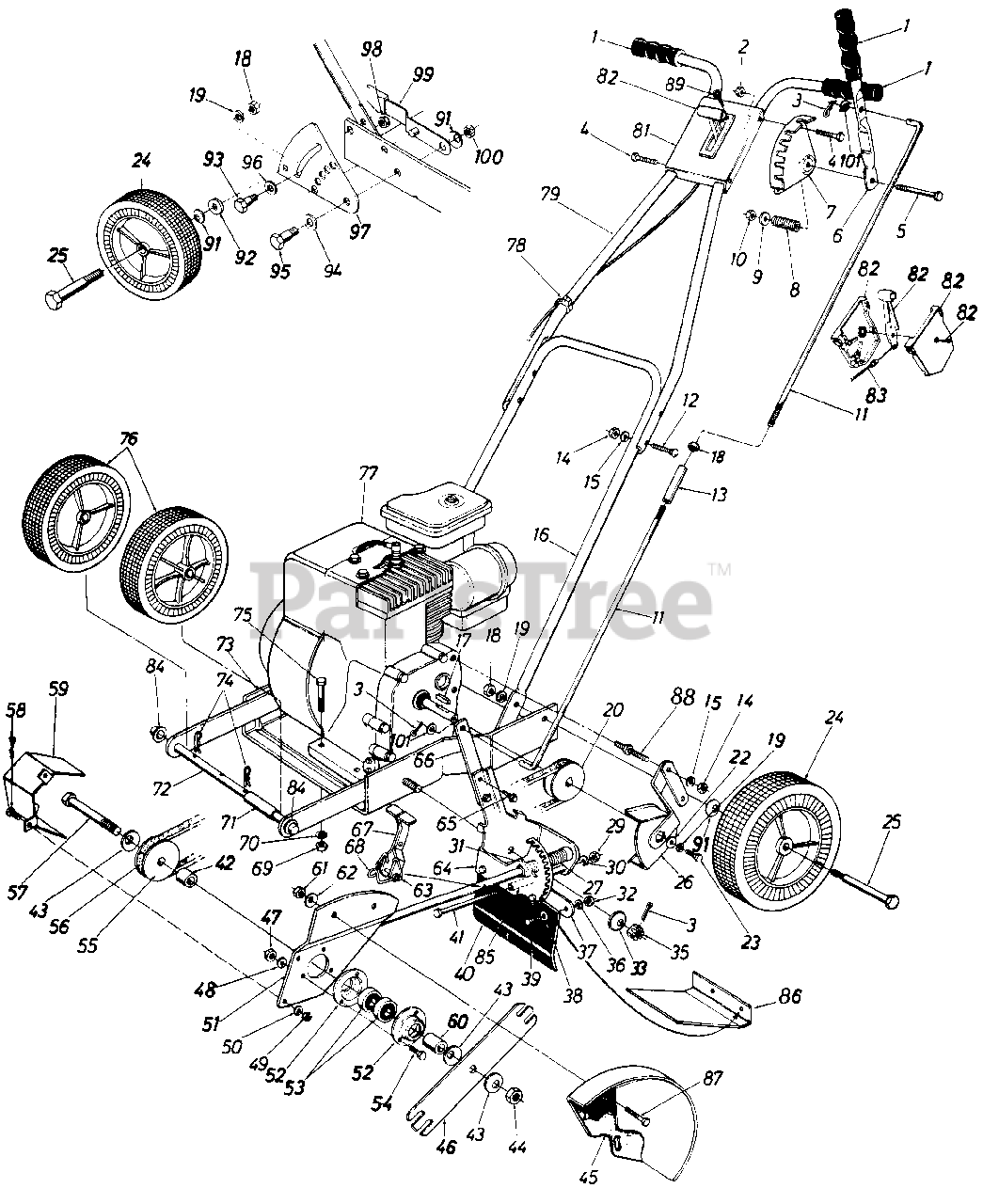

Optional Steel Wheels with Bearings Parts Diagram

  • Title

1

Cub Cadet 07071

Black Grip

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet 714-0115

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet 710-0116

Hex Bolt 5/16-18 x 2" Lg.
(Superseded to 710-3103)

$4.99

$

In Stock, Qty 15

0

6

Cub Cadet 749-0666

Engagement Handle
(Superseded to 749-0666-0637)

Variations

749-0666-0637

Cub Cadet 749-0666-0637

Engagement Handle, Black - POWDER BLACK (0637)

$37.99

$

In Stock, only 2 left!

0

$37.99

$

In Stock, only 2 left!

0

7

Cub Cadet 781-0081

Adjustment Bracket

Variations

781-0081-0480

Cub Cadet 781-0081-0480

USE 781-0081-0637 BRACKET-ADJ - BRILLIANT GREEN (0480)

$

$

Not available

781-0081-0483

Cub Cadet 781-0081-0483

USE 781-0081-0637 BRACKET-ADJ - CHARCOAL GRAY (0483)

$

$

Not available

781-0081-0498

Cub Cadet 781-0081-0498

ADJUSTMENT BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

781-0081-0637

Cub Cadet 781-0081-0637

BRACKET-ADJ - POWDER BLACK (0637)

$

$

Not available

781-0081-0638

Cub Cadet 781-0081-0638

BRACKET-ADJ - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0081-0662

Cub Cadet 781-0081-0662

ADJUSTMENT BRACKET - OYSTER GRAY (0662)

$

$

Not available

781-0081-0691

Cub Cadet 781-0081-0691

ADJUSTMENT BRACKET - BLACK JACK (0691)

$

$

Not available

781-0081-0692

Cub Cadet 781-0081-0692

USE 781-0081-0637 BRACKET-ADJ - AGWAY BLUE (0692)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 732-0369

Compression Spring 1.38" Lg.
(Superseded to 932-0369)

$10.99

$

In Stock, only 4 left!

0

9

Cub Cadet 736-0264

Fl-Wash. .344" I.D.

$7.49

$

In Stock, only 1 left!

0

10

Cub Cadet 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

11

Cub Cadet 747-0498

Clutch Rod Half 1 8.25" Lg.

$

$

Not available

12

Cub Cadet 710-0111

Carriage Bolt 1/4-20 x 1.25" Lg.

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 750-0628

Rod Adjustment Link

$

$

Not available

14

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$

$

Not available

15

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0

16

Cub Cadet 749-0453

Lower Handle

Note: (Painted)

$

$

Not available

Cub Cadet 09955

Lower Handle

Note: (Chrome)

$

$

Not available

17

Cub Cadet 714-0122

Sq. Key 3/16" x .75" Lg.

$3.99

$

In Stock, Qty 19

0

18

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 756-0327A

Engine Pulley

$

$

Not available

22

Cub Cadet 736-0258

Fl-Wash. .385" I.D.

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.99

$

In Stock, Qty 15

0

24

Cub Cadet 734-1162A

Rear Wheel Ass'y. 8" x 1.75"

$

$

Not available

Cub Cadet 734-0894

8" Rear Wheel Ass'y. (Steel Wheel)

Note: (Optional)

$

$

Not available

25

Cub Cadet 738-0108

Shoulder Bolt .498" Dia.
(Superseded to 938-0108)

$7.49

$

In Stock, Qty 6

0

26

Cub Cadet 13960

Belt Guard Ass'y.

$

$

Not available

27

Cub Cadet 732-0187

Compression Spring

$2.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 715-0247

Spring Pin Spir. 3/16" Dia.
(Superseded to 915-0247)

$

$

Not available

32

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$

$

Not available

33

Cub Cadet 736-0112

Bell-Wash. .535" I.D.

$10.99

$

In Stock, only 1 left!

0

35

Cub Cadet 712-0114

Hex Slotted Nut 1/2-20 Thd.
(Superseded to 912-0114)

$

$

Not available

36

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0

37

Cub Cadet 781-0087

Flap Bracket

$

$

Not available

38

Cub Cadet 736-0342

Fl-Wash. .25" I.D.

$7.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

40

Cub Cadet 731-0725

Flap

$

$

Not available

41

Cub Cadet 710-0402

Hex Bolt 5/16-18 x 4.5" Lg.

$

$

Not available

42

Cub Cadet 750-0229

Spacer 1.030" Lg.
(Superseded to 950-0229)

$

$

Not available

43

Cub Cadet 736-0317

Bell-Washer. .63" 1.D.

$8.49

$

In Stock, Qty 20+

0

44

Cub Cadet 712-0413

Hex Jam L-Nut 5/8-18 Thd.

$6.99

$

In Stock, Qty 10

0

45

Cub Cadet 781-0076

Guard Ass'y.

Variations

781-0076-0483

Cub Cadet 781-0076-0483

GUARD ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

781-0076-0498

Cub Cadet 781-0076-0498

GUARD ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

781-0076-0637

Cub Cadet 781-0076-0637

GUARD ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

781-0076-0638

Cub Cadet 781-0076-0638

GUARD ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0076-0650

Cub Cadet 781-0076-0650

GUARD ASSEMBLY - RED METALLIC (0650)

$

$

Not available

781-0076-0662

Cub Cadet 781-0076-0662

GUARD ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

781-0076-0665

Cub Cadet 781-0076-0665

GUARD ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

781-0076-0667

Cub Cadet 781-0076-0667

GUARD ASSEMBLY - MIDNIGHT BLUE (0667)

$

$

Not available

781-0076-0716

Cub Cadet 781-0076-0716

GUARD ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

46

Cub Cadet 781-0080

Edger Blade
(Superseded to 781-0080-0637)

Variations

781-0080-0637

Cub Cadet 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$9.49

$

In Stock, Qty 20+

0

$9.49

$

In Stock, Qty 20+

0

47

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$

$

Not available

48

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0

49

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$

$

Not available

50

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0

51

Cub Cadet 781-0078

Spindle Plate Ass'y.

Variations

781-0078-0637

Cub Cadet 781-0078-0637

USE 781-0078 PLATE-ASSY.SPIND - POWDER BLACK (0637)

$

$

Not available

$

$

52

Cub Cadet 15319B

Bearing Housing

$10.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 741-0155

Ball Bearing .62" I.D.
(Superseded to 941-0155)

$25.99

$

In Stock, only 3 left!

0

54

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 756-0449

3/8" "V"-Pulley
(Superseded to 956-0449)

$15.99

$

In Stock, only 2 left!

0

56

Cub Cadet 754-0142

"V"-Belt
(Superseded to 954-0142)

$32.99

$

In Stock, Qty 6

0

57

Cub Cadet 710-0929

Hex Bolt 5/8-18 x 4.5" Lg.
(Superseded to 710-3151A)

$19.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .625" Lg.
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 687-0100

Belt Guard

Variations

687-0100-0498

Cub Cadet 687-0100-0498

BELT GUARD - OLD CUB YELLOW (0498)

$

$

Not available

687-0100-0637

Cub Cadet 687-0100-0637

BELT GUARD PWD BLK(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

687-0100-0638

Cub Cadet 687-0100-0638

BELT GUARD - MTD/TROY-BILT RED (0638)

$

$

Not available

687-0100-0665

Cub Cadet 687-0100-0665

BELT GUARD - YARDMAN GREEN (0665)

$

$

Not available

687-0100-0716

Cub Cadet 687-0100-0716

BELT GUARD - CUB YELLOW-99 (0716)

$

$

Not available

$

$

60

Cub Cadet 750-0118

Sleeve .90" Lg.
(Superseded to 950-0118)

$

$

Not available

61

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

62

Cub Cadet 736-0242

Bell-Wash. .345" I.D.

$4.99

$

In Stock, Qty 20+

0

63

Cub Cadet 715-0121

Spring Pin Spir. 1/4" Dia.

$7.49

$

In Stock, only 2 left!

0

64

Cub Cadet 781-0090

Pivot Bracket Ass'y.

Variations

781-0090-0498

Cub Cadet 781-0090-0498

BRACKET ASSY-PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

781-0090-0637

Cub Cadet 781-0090-0637

BRACKET ASSY-PIVOT - POWDER BLACK (0637)

$

$

Not available

781-0090-0638

Cub Cadet 781-0090-0638

BRACKET ASSY-PIVOT - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0090-0662

Cub Cadet 781-0090-0662

BRACKET ASSY-PIVOT - OYSTER GRAY (0662)

$

$

Not available

781-0090-0665

Cub Cadet 781-0090-0665

BRACKET ASSY-PIVOT - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$

$

Not available

66

Cub Cadet 781-0075

Arm Extension
(Superseded to 781-0075-0637)

Variations

781-0075-0637

Cub Cadet 781-0075-0637

EXTENSION-ARM - POWDER BLACK (0637)

$

$

Not available

$

$

67

Cub Cadet 781-0093

Adjustment Lever Ass'y.
(Superseded to 981-0093)

$

$

Not available

68

Cub Cadet 732-0188A

Torsion Spring

$13.99

$

In Stock, Qty 11

0

69

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

71

Cub Cadet 750-0622

Spacer 1.62" Lg.

$

$

Not available

72

Cub Cadet 738-0613

Axle 8.75" Lg.

Note: (Front)

$

$

Currently unavailable

73

Cub Cadet 781-0083

Base Ass'y.

$

$

Not available

74

Cub Cadet 714-0101

Hairpin Cotter 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

75

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

76

Cub Cadet 734-1161A

Front Wheel Ass'y. 7" x 1.50"

$

$

Not available

Cub Cadet 734-0892

7" Front Wheel Ass'y. (Steel Wheel)

Note: (Optional)

$

$

Not available

Cub Cadet 741-0262

Wheel Bearings

Note: (Not Shown - Optional)

$8.99

$

Usually ships in 3-6 days

0

77

Engine

$

$

Not available

78

Cub Cadet 726-0192B

Cable Tie

$

$

Not available

79

Cub Cadet 749-0668

Upper Handle

Note: (Painted)

$

$

Not available

Cub Cadet 749-0667

Upper Handle

Note: (Chrome)

$

$

Not available

81

Cub Cadet 781-0092A

Handle Support Plate

Variations

781-0092A-0483

Cub Cadet 781-0092A-0483

PLATE-HDLE SUPPORTCHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

781-0092A-0637

Cub Cadet 781-0092A-0637

PLATE-HDLE SUPPORT(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

781-0092A-0638

Cub Cadet 781-0092A-0638

PLATE-HDLE SUPPORT(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

82

Cub Cadet 831-0796

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$23.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 746-0635

Throttle Control Wire 30" Lg.
(Superseded to 946-0634)

$12.99

$

In Stock, Qty 6

0

84

Cub Cadet 726-0221

Push Cap 1/2" Dia.

$6.49

$

In Stock, Qty 12

0

85

Cub Cadet 711-0386

Spacer 3.765" Lg.

$

$

Not available

86

Cub Cadet 781-0095

Debris Deflector .25" Lg.

Variations

781-0095-0483

Cub Cadet 781-0095-0483

DEBRIS DEFLECTOR CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

781-0095-0637

Cub Cadet 781-0095-0637

DEFLECTOR-DEBRIS - POWDER BLACK (0637)

$

$

Not available

781-0095-0638

Cub Cadet 781-0095-0638

DEBRIS DEFLECTOR (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0095-0665

Cub Cadet 781-0095-0665

DEBRIS DEFLECTOR YARD-MAN - YARDMAN GREEN (0665)

$

$

Not available

$

$

87

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg. Spec.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

88

Cub Cadet 751-0271

Stud 1/4-20 x 2.12" Lg.

$

$

Not available

89

Cub Cadet 710-0779A

Self-Tap Scr. #10 x .50" Lg.

$4.99

$

In Stock, Qty 8

0

91

Cub Cadet 736-0105

Bell-Wash. .40" I.D.

$4.99

$

In Stock, Qty 20+

0

92

Cub Cadet 736-0280

Fl-Wash. .39" I.D.
(Superseded to 736-04005)

$9.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 738-0258

Shld. Bolt .5" Dia.
(Superseded to 938-0258)

$

$

Not available

94

Cub Cadet 736-0255

Bell-Wash. .515" I.D.

$4.99

$

In Stock, only 1 left!

0

95

Cub Cadet 738-0183

Shld. Bolt .50" Dia.
(Superseded to 938-0183)

$

$

Not available

96

Cub Cadet 736-0192

Fl-Wash. .51" I.D. x .94"

$4.99

$

In Stock, Qty 16

0

97

Cub Cadet 781-0100

Curb Height Adjuster

Variations

781-0100-0637

Cub Cadet 781-0100-0637

ADJUSTER-CURB HEIGHT - POWDER BLACK (0637)

$

$

Not available

781-0100-0638

Cub Cadet 781-0100-0638

ADJUSTER-CURB HEIGHT - MTD/TROY-BILT RED (0638)

$

$

Not available

781-0100-0650

Cub Cadet 781-0100-0650

ADJUSTER-CURB HEIGHT - RED METALLIC (0650)

$

$

Not available

781-0100-0662

Cub Cadet 781-0100-0662

ADJUSTER-CURB HEIGHT - OYSTER GRAY (0662)

$

$

Not available

$

$

98

Cub Cadet 712-0375

Hex L-Nut 3/8-16 Thd.

$4.99

$

In Stock, only 1 left!

0

99

Cub Cadet 732-0552

Spring Adj. Lever
(Superseded to 932-0552)

$

$

Not available

100

Cub Cadet 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$4.49

$

In Stock, Qty 20+

0

101

Cub Cadet 736-0262

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0
