58602 - Toro Front-Tine Tiller (SN: 323000001 - 323999999) (2023) Tines and Transmission Assembly Parts Diagram

Front-Tine Tiller

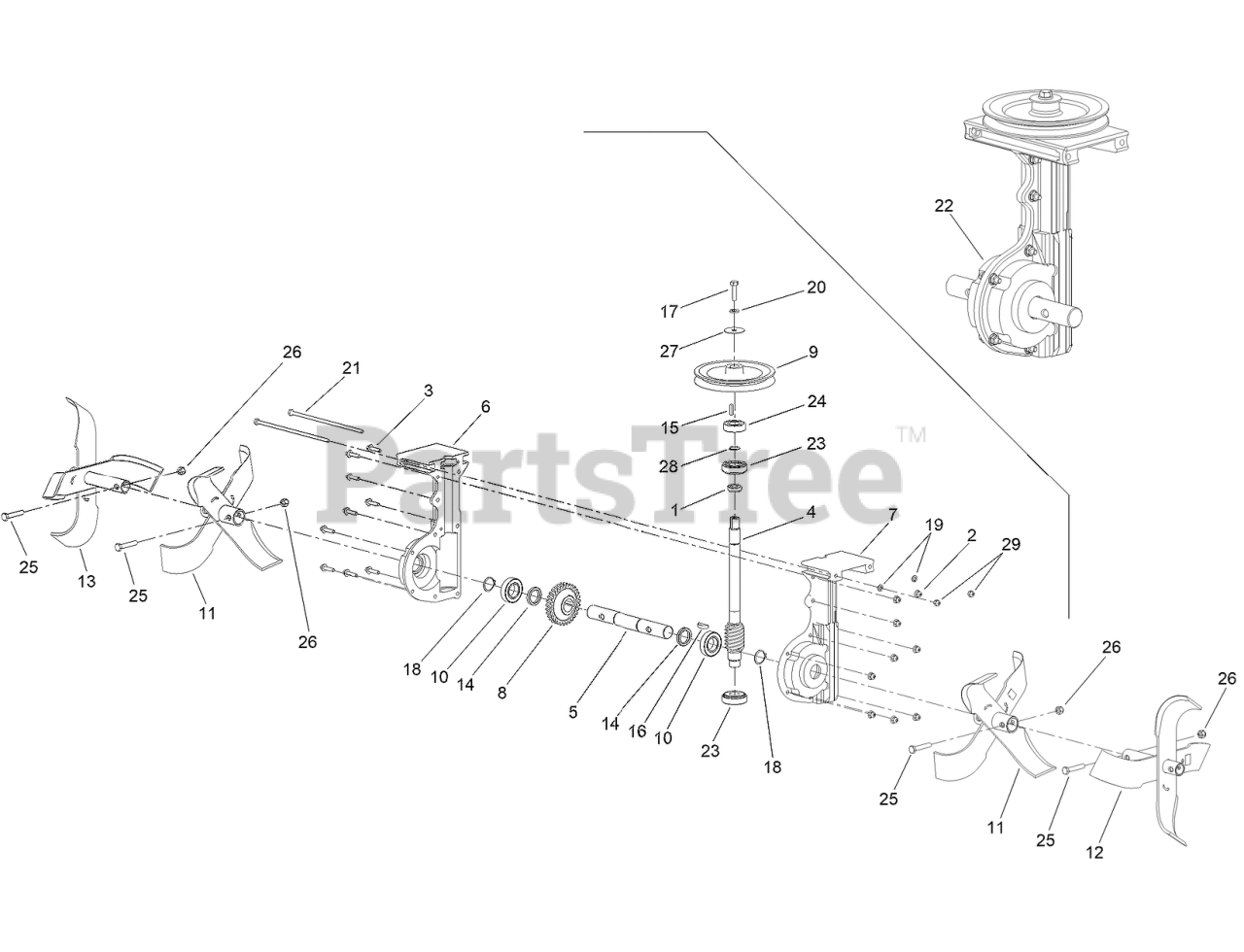

Tines and Transmission Assembly Parts Diagram

  • Title
1

Toro 144-4966

SPACER-INPUT

$

$

Currently unavailable

2

Toro 144-4879

NUT-HEX

$

$

Currently unavailable

3

Toro 144-4967

SCREW-RHF

$

$

Currently unavailable

4

Toro 144-4968

DRIVESHAFT-WORM

$

$

Currently unavailable

5

Toro 144-4969

DRIVESHAFT-TINE

$

$

Currently unavailable

6

Toro 144-4970

CASTING-RIGHT

$

$

Currently unavailable

7

Toro 144-4971

CASTING-LEFT

$

$

Currently unavailable

8

Toro 144-4972

GEAR-TRANSMISSION

$

$

Currently unavailable

9

Toro 144-4973

PULLEY-TRANSMISSION

$

$

Currently unavailable

10

Toro 144-4974

BEARING-OUTPUT

$

$

Currently unavailable

11

Toro 144-4975

TINE-INNER

$

$

Currently unavailable

12

Toro 144-4882

TINE-OUTSIDE LEFT

$

$

Currently unavailable

13

Toro 144-4883

TINE-OUTSIDE RIGHT

$

$

Currently unavailable

14

Toro 144-4979

SPACER-OUTPUT

$

$

Currently unavailable

15

Toro 144-4982

KEY-SQUARE

$

$

Currently unavailable

16

Toro 144-4983

KEY-HALFMOON

$

$

Currently unavailable

17

Toro 144-4984

SCREW-HHCS

$

$

Currently unavailable

18

Toro 144-4985

SNAP RING

$

$

Currently unavailable

19

Toro 144-4986

WASHER-LOCK

$

$

Currently unavailable

20

Toro 144-4987

WASHER-LOCK

$

$

Currently unavailable

21

Toro 144-4993

SCREW-HHCS

$

$

Currently unavailable

22

Toro 144-4998

TRANSMISSION ASM

$

$

Currently unavailable

23

Toro 144-4934

BEARING-ROLLER

$

$

Currently unavailable

24

Toro 144-4942

BEARING-ROLLER

$

$

Currently unavailable

25

Toro 144-5000

SCREW-HHCS

$

$

Currently unavailable

26

Toro 144-4738

NUT-HEX

$

$

Currently unavailable

27

Toro 144-5020

WASHER-FLAT

$

$

Currently unavailable

28

Toro 144-5021

RING-RETAINING

$

$

Currently unavailable

29

Toro 144-4836

NUT-HEX

$

$

Currently unavailable
