587293701 - Husqvarna Snow Blower Attachment (2019-01) CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

Snow Blower Attachment

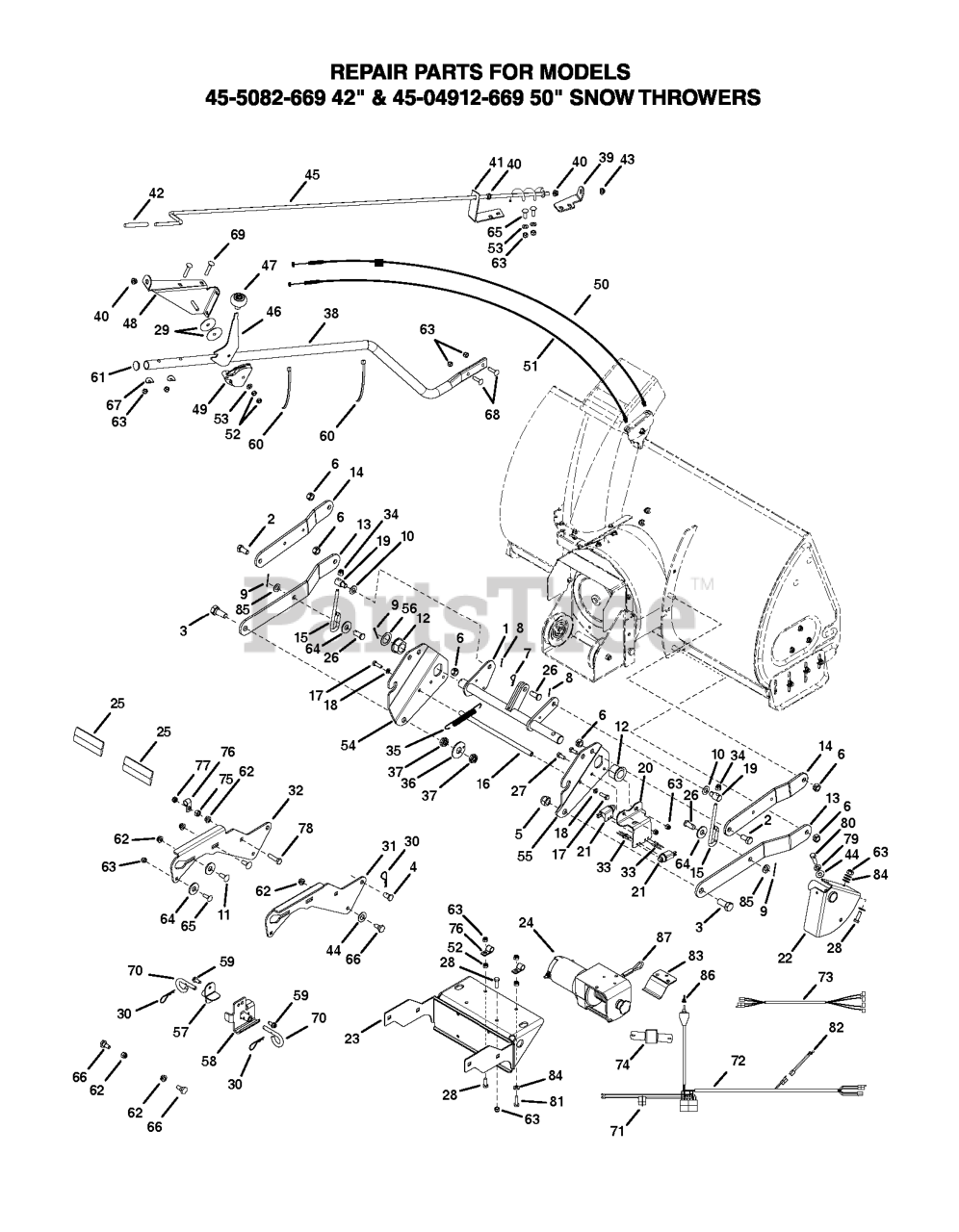

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title

43

Husqvarna 531002840

NUT

Note: Palnut, 3/8"

$1.99

$

Usually ships in 3-10 days

0

63

Husqvarna 501332601

NUT 47810

Note: Nut, Nylock Hex 5/16-18

$

$

Not available

42

Husqvarna 522836001

NEEDS DESCRIPTION

Note: Grip

$

$

Currently unavailable

64

Husqvarna 501332001

WASHER R19172410

Note: Washer, 1/2"

$

$

Not available

60

Husqvarna 501331401

TIE WRAP 726-0178

Note: Tie, Nylon

$

$

Not available

34

Husqvarna 501332701

NUT

Note: Hex Nut, 3/8-16 Nylock

$

$

Not available

25

Husqvarna 501342601

REFLECTOR 47788

Note: Reflector, Rear

$

$

Not available

31

Husqvarna 501343001

PLATE 25678

Note: Plate, Side (R.H.)

$

$

Not available

27

Husqvarna 522759901

NEEDS DESCRIPTION

Note: Bolt, Hex 5/16-18 x 3/4

$

$

Currently unavailable

16

Husqvarna 501341801

ROD 24311

Note: Rod, Spacer

$

$

Not available

32

Husqvarna 501343101

PLATE 25679

Note: Plate, Side (L.H.)

$

$

Not available

55

Husqvarna 501344201

PLATE 24284

Note: Plate, Mounting (R.H.)

$

$

Not available

6

Husqvarna 501334101

NUT

Note: Nut, Hex Lock 1/2-13

$

$

Not available

39

Husqvarna 501337801

BRACKET

Note: Bracket, Chute Crank

$

$

Not available

52

Husqvarna 531007616

NUT

Note: Nut, Hex Lock 5/16-18

$

$

Not available

56

Husqvarna 501344301

WASHER

Note: Washer, 1.59" x 1.032" x .060"

$

$

Not available

17

Husqvarna 501341901

BOLT 47599

Note: Hex Bolt, 5/16-18 x 1" (Locking)

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 501342701

WASHER R19111116

Note: Washer, .343" x .687" x .0673"

$

$

Not available

9

Husqvarna 577776801

COTTER PIN

Note: Pin, Cotter 1/8" x 1-1/2"

$

$

Not available

67

Husqvarna 531002816

WASHER

Note: Washer, Bowed

$

$

Not available

18

Husqvarna 522758601

LOCK WASHER
(Superseded to 735116450)

Note: Lock Washer, 5/16"

$2.49

$

In Stock, only 1 left!

0

68

Husqvarna 501344601

BOLT 43682

Note: Carriage Bolt, 5/16-18 x 1-1/4"

$

$

Not available

11

Husqvarna 501332301

BOLT 43350

Note: Carriage Bolt, 3/8-16 x 1"

$

$

Not available

7

Husqvarna 501347001

PIN 47134

Note: Pin, Hair Cotter 5/64"

$

$

Not available

10

Husqvarna 501334501

WASHER

Note: Washer, 17/32" x 1"

$

$

Not available

77

Husqvarna 586805301

NEEDS DESCRIPTION

Note: Nut, Jam Nylock 3/8-16

$

$

Currently unavailable

54

Husqvarna 501344101

PLATE 24285

Note: Plate, Mounting (L.H.)

$

$

Not available

57

Husqvarna 501338101

BRACKET 65367

Note: Hanger Bracket Assembly, L.H.

$

$

Not available

75

Husqvarna 531004664

NUT

Note: Nut, Hex 3/8-16

$

$

Not available

62

Husqvarna 501338901

NUT 47572

Note: Nut, Flanged Lock 3/8-16

$4.99

$

In Stock, only 2 left!

0

70

Husqvarna 501338701

PIN 43038

Note: Pin, Pivot Lock

$

$

Not available

58

Husqvarna 501338201

BRACKET 65450

Note: Hanger Bracket Assembly, R.H.

$102.99

$

Usually ships in 3-10 days

0

33

Husqvarna 522756101

NEEDS DESCRIPTION

Note: Rivet, Pop

$

$

Currently unavailable

66

Husqvarna 501339401

BOLT 48106

Note: Bolt, Shoulder

$

$

Not available

81

Husqvarna 531008117

SCREW

Note: Bolt, Hex 5/16-18 x 1-1/4"

$

$

Not available

79

Husqvarna 577157101

LOCK WASHER

Note: Lock Washer, 3/8"

$

$

Not available

65

Husqvarna 522770201

BOLT

Note: Carriage Bolt, 5/16-18 x 1"

$

$

Not available

30

Husqvarna 522752001

NEEDS DESCRIPTION

Note: Pin, Haircotter #4 (1/8")

$

$

Currently unavailable

53

Husqvarna 522770301

WASHER

Note: Washer, 5/16"

$

$

Not available

69

Husqvarna 501344501

BOLT 44215

Note: Carriage Bolt, 5/16-18 x 1-3/4"

$

$

Not available

59

Husqvarna 501336501

BOLT

Note: Bolt, Hex 5/16-18 x 3/4" Self Thd.

$

$

Not available

8

Husqvarna 501341301

PIN 142

Note: Pin, Cotter 1/8" x 3/4"

$

$

Not available

28

Husqvarna 531007426

BOLT

Note: Hex Bolt 5/16-18 x 1"

$

$

Not available
