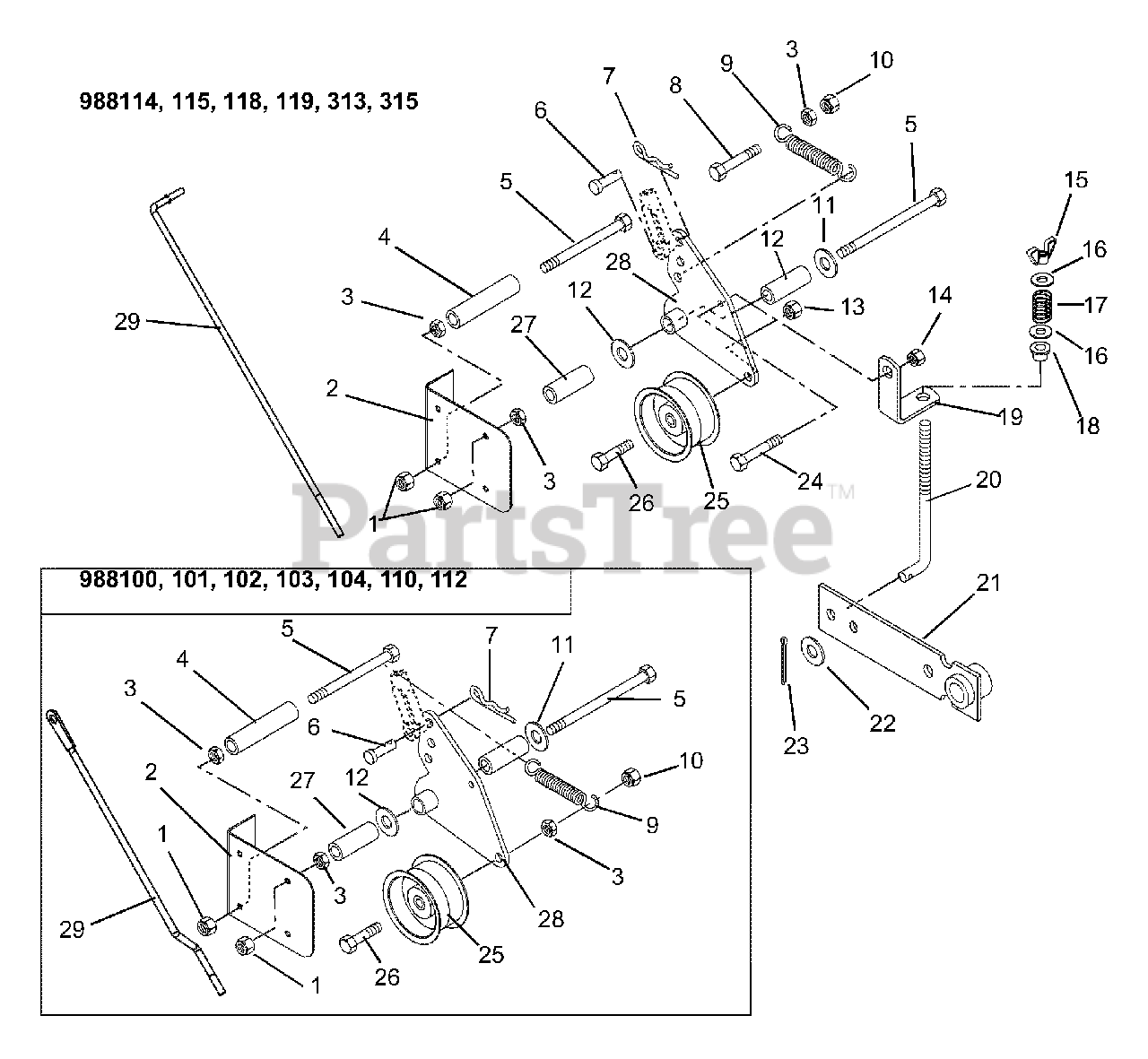

588072 - Gravely Pro Series T Gear Drive Kit Wheel Clutch Arm Weldment Parts Diagram

Pro Series T Gear Drive Kit

Wheel Clutch Arm Weldment Parts Diagram

  • Title

1

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 58805200

KIT-BELT COVER W/DECALS

$69.99

$

Usually ships in 4-12 days

0

3

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 08875300

BSHG, SPACER, 3.25X3/8IDX5/8OD

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 05970400

BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$5.49

$

In Stock, only 2 left!

0

6

Gravely 06814900

PIN-CLEV .38X1.25 YWZC

$4.99

$

In Stock, only 2 left!

0

7

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

9

Gravely 052617

SG-TENS .105X1.00X5.0
(Superseded to 08346800)

$15.99

$

In Stock, only 4 left!

0

10

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 049022

BUSH.,S.385X.610X1.80 ST
(Superseded to 08831500)

$6.49

$

In Stock, only 2 left!

0

13

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

15

Gravely 06537100

NUT-NYLK WING .312-18 YWZC

$6.49

$

In Stock, only 1 left!

0

16

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

18

Gravely 045789

BSHG-FLG .320X.620X.312 NY
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

19

Gravely 04928900

BRACKET, BRAKE LINK

$

$

Not available

20

Gravely 04935500

ROD, BRAKE

$

$

Not available

21

Gravely 049023

WLDMT,BRAKE ARM
(Superseded to 08831600)

$76.99

$

Usually ships in 4-12 days

0

22

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

24

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

25

Gravely 048870

IDLER 2.75X1.25
(Superseded to 07318400)

$23.99

$

In Stock, only 3 left!

0

26

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

27

Gravely 04923300

BUSHING, SPACER .385X.561X1.38

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 04946200

WMT - WHEEL CLUTCH ARM

$94.99

$

Usually ships in 4-12 days

0

29

Gravely 04950500

ROD - STEERING

Note: (988114, 115, 118, 119, 313, 315)

$

$

Not available

Gravely 04947800

ROD - STEERING LINK

Note: (988100, 101, 102, 103, 104, 110, 112)

$25.99

$

Usually ships in 4-12 days

0
