588447-0216-E2 - Briggs & Stratton Horizontal Engine Flywheel Housing, Stub Shaft, SAE Flywheel Parts Diagram

Horizontal Engine

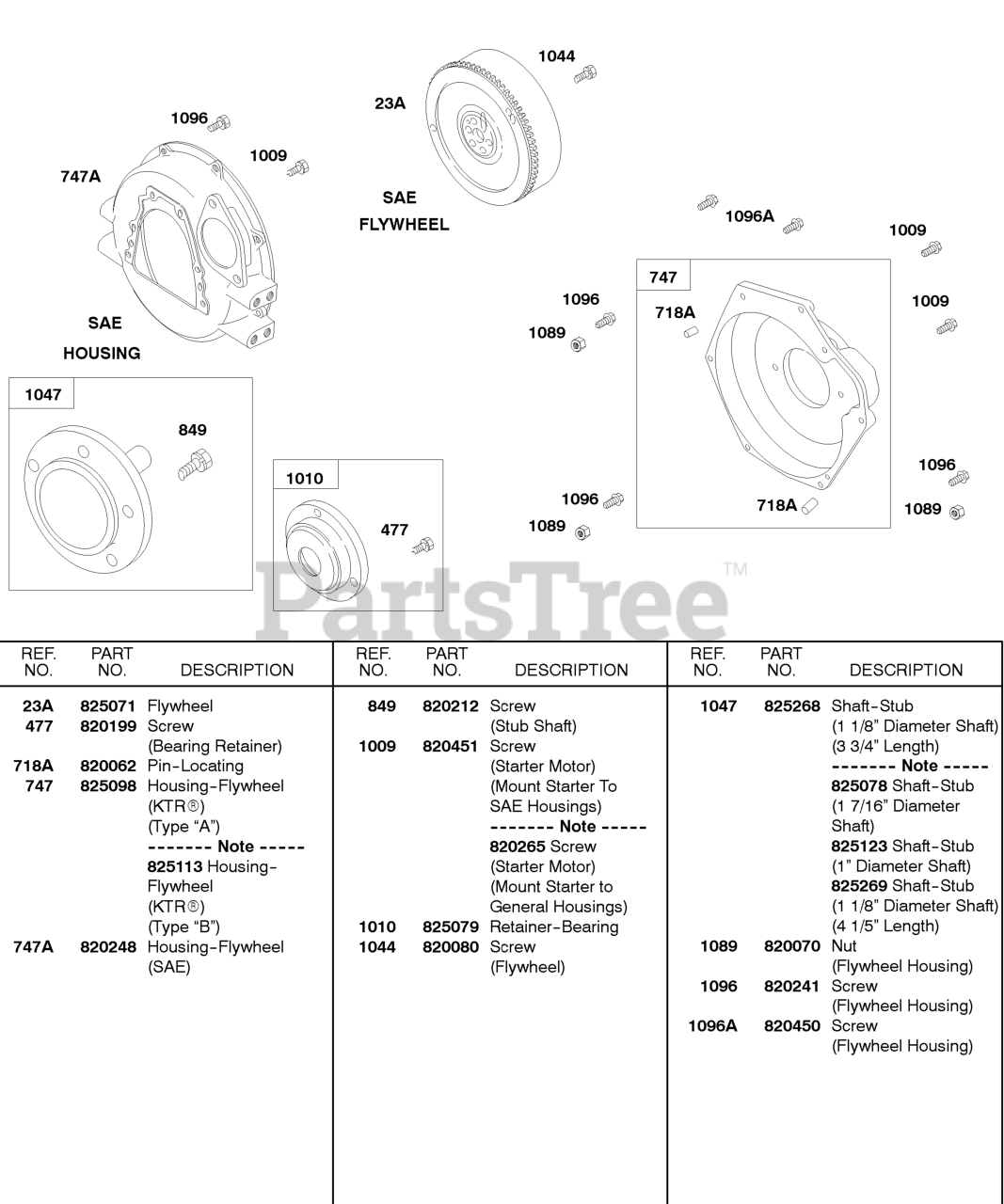

Flywheel Housing, Stub Shaft, SAE Flywheel Parts Diagram

  • Title

23A

Briggs & Stratton 825071

Flywheel

$751.99

$

Usually ships in 2-12 days

0

477

Briggs & Stratton 820199

Screw

Note: (Bearing Retainer)

$

$

Not available

718A

Briggs & Stratton 820062

Pin-Locating

$7.99

$

Usually ships in 2-12 days

0

747

Briggs & Stratton 825098

Housing-Flywheel

Note: (Type "A")

$876.99

$

Usually ships in 2-12 days

0

747

Briggs & Stratton 825113

Housing-Flywheel

Note: (Type "B")

$

$

Not available

747A

Briggs & Stratton 820248

Housing-Flywheel

Note: (SAE)

$819.99

$

Usually ships in 2-12 days

0

849

Briggs & Stratton 820212

Screw

Note: (Stub Shaft)

$3.99

$

Usually ships in 2-12 days

0

1009

Briggs & Stratton 820265

Screw

Note: (Starter Motor) (Mount Starter To General Housings)

$3.49

$

Usually ships in 2-12 days

0

1009

Briggs & Stratton 820451

Screw

Note: (Starter Motor) (Mount Starter To SAE Housings)

$

$

Not available

1010

Briggs & Stratton 825079

Retainer-Bearing

$230.99

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 820080

Screw

Note: (Flywheel)

$7.49

$

In Stock, Qty 6

0

1047

Briggs & Stratton 825269

Shaft-Stub

Note: (1 1/8" Diameter Shaft) (4 1/5" Length)

$336.99

$

Usually ships in 2-12 days

0

1047

Briggs & Stratton 825268

Shaft-Stub

Note: (1 1/8" Diameter Shaft) (3 3/4" Length)

$320.99

$

Usually ships in 2-12 days

0

1047

Briggs & Stratton 825078

Shaft-Stub

Note: (1 7/16" Diameter Shaft)

$

$

Not available

1047

Briggs & Stratton 825123

Shaft-Stub

Note: (1" Diameter Shaft)

$

$

Not available

1089

Briggs & Stratton 820070

Nut

Note: (Flywheel Housing)

$3.99

$

In Stock, only 3 left!

0

1096

Briggs & Stratton 820241

Screw

Note: (Flywheel Housing)

$3.49

$

Usually ships in 2-12 days

0

1096A

Briggs & Stratton 820450

Screw

Note: (Flywheel Housing)

$3.49

$

Usually ships in 2-12 days

0
