588447-0216-E2 - Briggs & Stratton Horizontal Engine Fuel Filter, Fuel Injection Pump Parts Diagram

Horizontal Engine

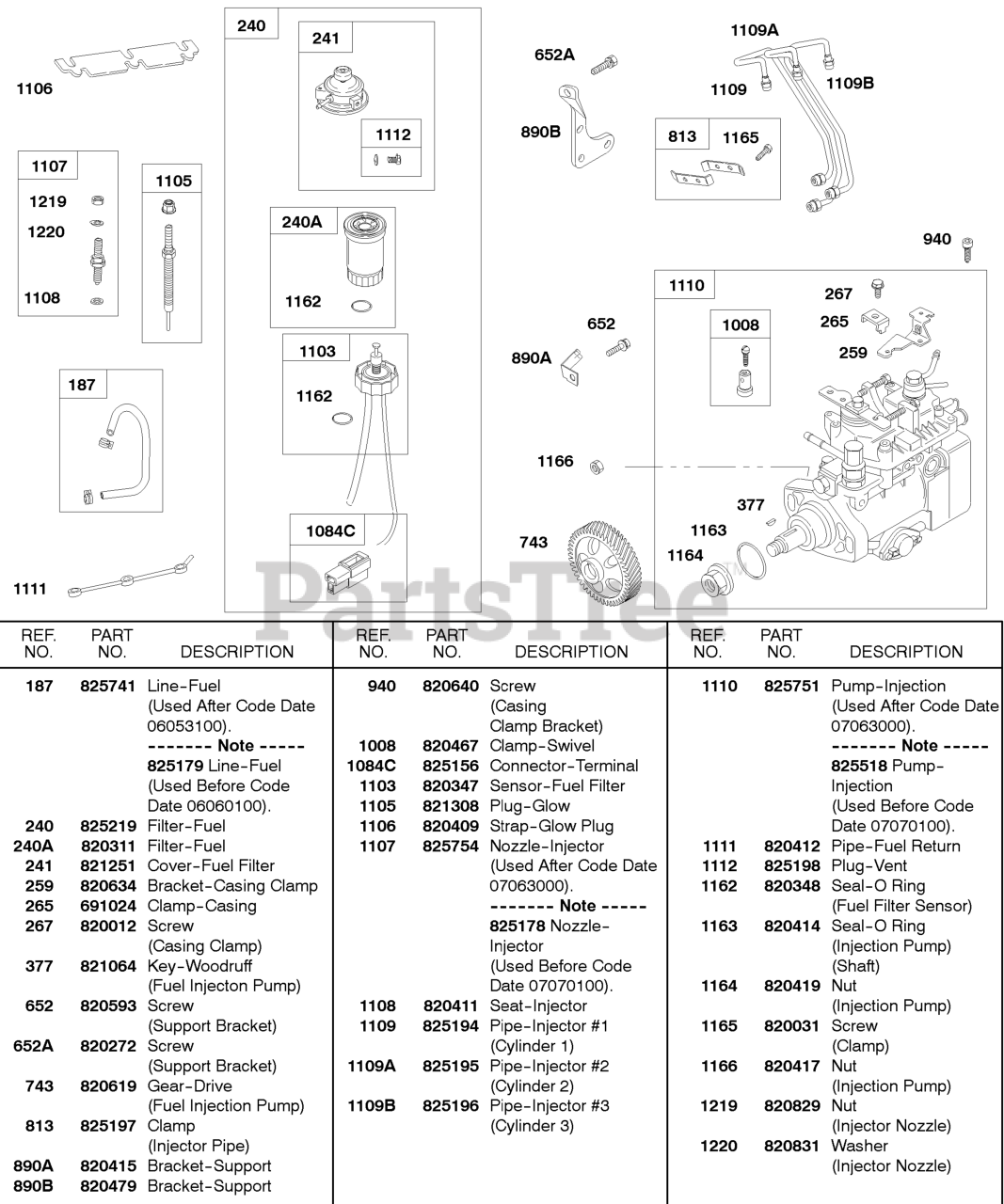

Fuel Filter, Fuel Injection Pump Parts Diagram

  • Title

187

Briggs & Stratton 825741

Line-Fuel

Note: Used After Code Date 06053100

$16.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 825179

Line-Fuel
(Superseded to 825741)

Note: Used Before Code Date 06060100

$16.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 825219

Filter-Fuel

$

$

Not available

240A

Briggs & Stratton 820311

Filter-Fuel

$108.99

$

In Stock, only 3 left!

0

241

Briggs & Stratton 821251

Cover-Fuel Filter

$171.99

$

Usually ships in 2-12 days

0

259

Briggs & Stratton 820634

Bracket-Casing Clamp

$219.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 10

0

267

Briggs & Stratton 820012

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 825700

Motor-Starter

Note: (1.2 KW)(Purple/Brown Label)

$486.99

$

In Stock, only 1 left!

0

377

Briggs & Stratton 821064

Key-Woodruff

Note: (Fuel Injection Pump)

$

$

Not available

652

Briggs & Stratton 820593

Screw

Note: (Support Bracket)

$3.49

$

Usually ships in 2-12 days

0

652A

Briggs & Stratton 820272

Screw

Note: (Support Bracket)

$3.99

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 820619

Gear-Drive

Note: (Fuel Injection Pump)

$

$

Not available

813

Briggs & Stratton 825197

Clamp

Note: (Injector Pipe)

$

$

Not available

890A

Briggs & Stratton 820415

Bracket-Support

$

$

Not available

890B

Briggs & Stratton 820479

Bracket-Support

$

$

Not available

940

Briggs & Stratton 820640

Screw

Note: (Casing Clamp Bracket)

$7.49

$

Usually ships in 2-12 days

0

1008

Briggs & Stratton 820467

Clamp-Swivel

$13.99

$

Usually ships in 2-12 days

0

1084C

Briggs & Stratton 825156

Connector-Terminal

$6.99

$

Usually ships in 2-12 days

0

1103

Briggs & Stratton 820347

Sensor-Fuel Filter

$95.99

$

Usually ships in 2-12 days

0

1105

Briggs & Stratton 821308

Plug-Glow

$129.99

$

Usually ships in 2-12 days

0

1106

Briggs & Stratton 820409

Strap-Glow Plug

$27.99

$

In Stock, only 2 left!

0

1107

Briggs & Stratton 825178

Nozzle-Injector

Note: Used Before Code Date 07070100

$423.99

$

Usually ships in 2-12 days

0

1107

Briggs & Stratton 825754

Nozzle-Injector

Note: Used After Code Date 07063000

$

$

Not available

1108

Briggs & Stratton 820411

Seat-Injector

$9.99

$

Usually ships in 2-12 days

0

1109

Briggs & Stratton 825194

Pipe-Injector

Note: (Cylinder 1)

$64.99

$

In Stock, only 1 left!

0

1109A

Briggs & Stratton 825195

Pipe-Injector

Note: (Cylinder 2)

$66.99

$

In Stock, only 1 left!

0

1109B

Briggs & Stratton 825196

Pipe-Injector

Note: (Cylinder 3)

$64.99

$

In Stock, only 1 left!

0

1110

Briggs & Stratton 825751

Pump-Fuel Injection

Note: Used After Code Date 07063000

$

$

Not available

1110

Briggs & Stratton 825518

Pump-Fuel Injection

Note: Used Before Code Date 07070100

$

$

Not available

1111

Briggs & Stratton 820412

Pipe-Fuel Return

$48.99

$

Usually ships in 2-12 days

0

1112

Briggs & Stratton 825198

Plug-Vent

$

$

Not available

1162

Briggs & Stratton 820348

Seal-O Ring

Note: (Fuel Filter Sensor)

$17.99

$

Usually ships in 2-12 days

0

1163

Briggs & Stratton 820414

Seal-O Ring

Note: (Injection Pump Shaft) (Shaft)

$

$

Not available

1164

Briggs & Stratton 820419

Nut

Note: (Injection Pump Shaft)

$

$

Not available

1165

Briggs & Stratton 820031

Screw

Note: (Clamp)

$

$

Not available

1166

Briggs & Stratton 820417

Nut

Note: (Injection Pump)

$3.49

$

Usually ships in 2-12 days

0

1219

Briggs & Stratton 820829

Nut

Note: (Injector Nozzle)

$

$

Not available

1220

Briggs & Stratton 820831

Washer

Note: (Injector Nozzle)

$6.99

$

In Stock, only 3 left!

0
