589 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

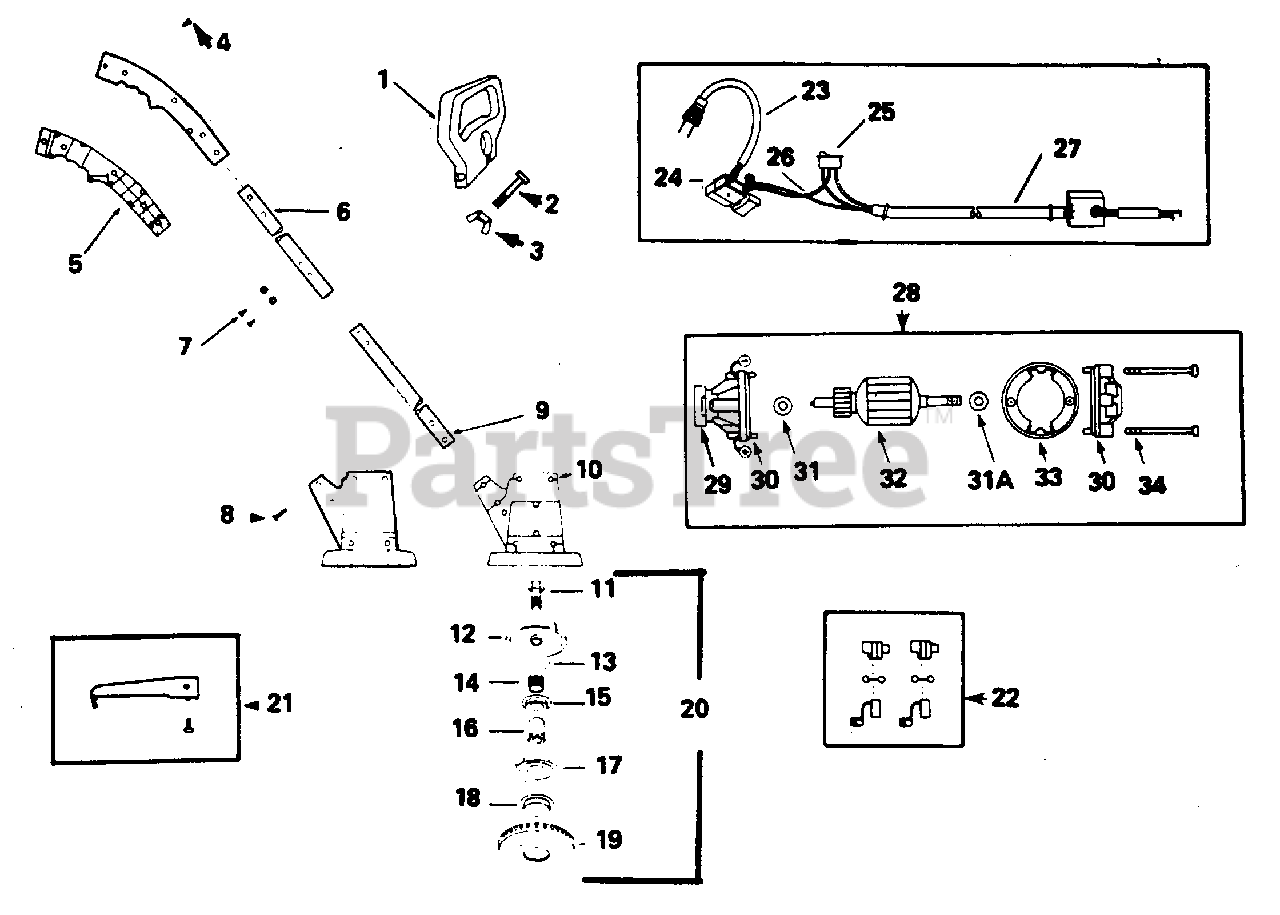

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530092637

ASSIST HANDLE

$

$

Not available

2

Poulan 530092638

BOLT

$

$

Not available

3

Poulan 530092049

WING NUT

$

$

Not available

4

Poulan 530092598

SCREW

$

$

Not available

5

Poulan 530092699

TRIGGER HANDLE SET

$

$

Not available

6

Poulan 530092641

TUBE, UPPER

$

$

Not available

7

Poulan 530092626

TUBE FASTENER KIT

$

$

Not available

8

Poulan 530092624

SCREW

$

$

Not available

9

Poulan 530092644

TUBE, LOWER

$

$

Not available

10

Poulan 530092694

MOTOR HOUSING SET

$

$

Not available

11

Poulan 530092672

DRIVE ADAPTOR

$

$

Not available

12

Poulan 530092673

HUB w/LINE SAVER

$

$

Not available

13

Poulan 530092134

LINE SAVER

$

$

Not available

14

Poulan 530092067

COIL SPRING
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530092068

COIL SPRING ADAPTOR
(Superseded to 530328929)

$

$

Not available

16

Poulan 530092069

DRIVE GEAR

$

$

Not available

17

Poulan 702509

SPOOL, w/LINE

$

$

Not available

18

Poulan 530093387

RELEASE BUTTON
(Superseded to 530401183)

$

$

Not available

19

Poulan 530092133

COVER

$

$

Not available

20

Poulan 530092702

TAP-N-GO HEAD ASSEMBLY

$

$

Not available

21

Poulan 952701522

LINE LIMITER KIT

$

$

Not available

22

Poulan 530092652

BRUSH KIT

$

$

Not available

23

Poulan 530090866

POWER SUPPLY CORD

$

$

Not available

24

Poulan 530090824

SWITCH

$

$

Not available

25

Poulan 530092703

SWITCH, TOGGLE (For 92705 Harness)

$

$

Not available

25

Poulan 530092704

SWITCH, TOGGLE (For 92706 Harness)

$

$

Not available

26

Poulan 530092705

WIRE, JUMPER

$

$

Not available

27

Poulan 530092706

HARNESS w/RECTIFIER & TOGGLE SWITCH

$

$

Not available

28

Poulan 530092656

MOTOR

$

$

Not available

29

Poulan 530092657

INSULATOR

$

$

Not available

30

Poulan 530092658

END BELL SET

$

$

Not available

31

Poulan 530092659

WASHER, THRUST .025"

$

$

Not available

31A

Poulan 530092661

WASHER, THRUST .010"

$

$

Not available

32

Poulan 530092662

ARMATURE

$78.99

$

Usually ships in 3-10 days

0

33

Poulan 530092663

FIELD ASSEMBLY

$

$

Not available

34

Poulan 530092664

SCREW

$

$

Not available
