589043 - Gravely Brake Replacement Kit, Single Side Brake Replacement Kit (Single Side) PN 58904300 Parts Diagram

Brake Replacement Kit, Single Side

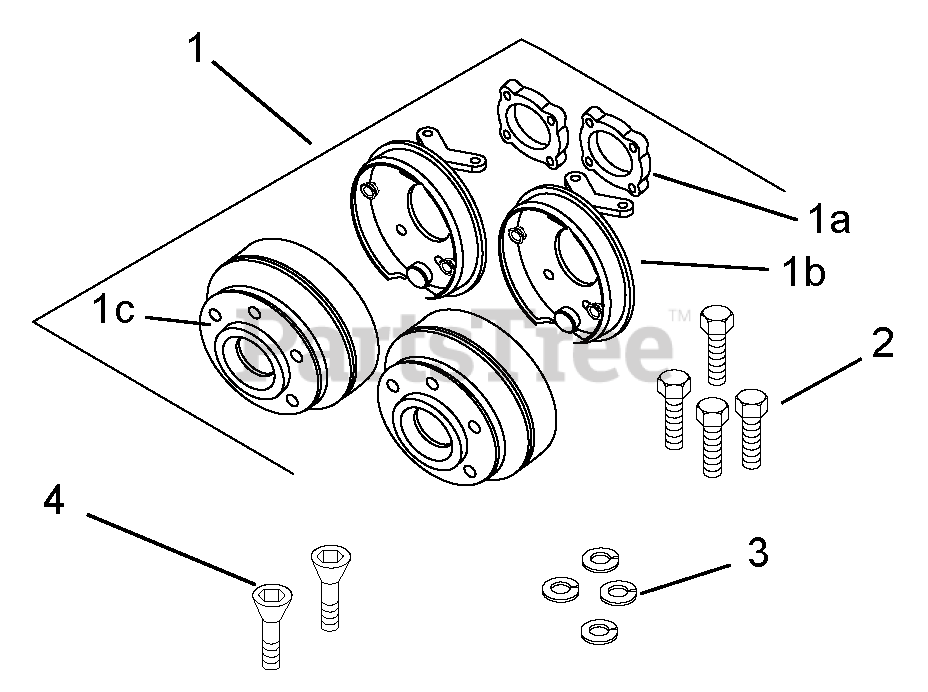

Brake Replacement Kit (Single Side) PN 58904300 Parts Diagram

  • Title
1

Gravely 00445200

Brake Assembly
(Superseded to 00602500)

$732.99

$

Usually ships in 4-12 days

0

1a

Gravely 00445204

Brake Spacer

Note: Assembled as part of item 1.

$9.99

$

Usually ships in 4-12 days

0

1b

Gravely 00445202

Brake Cam

Note: Assembled as part of item 1.

$

$

Not available

1c

Gravely 00445203

Brake Hub

Note: Assembled as part of item 1.

$

$

Not available

2

Gravely 05952401

Bolt, Hex 5/16-18 x 1-1/2 Grade 5 EP30

$

$

Not available

3

Gravely 06308600

Washer, Lock 5/16 x 5/64
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05900028

Screw, Machine 5/16-18 x 1-1/2 Flat Countersink

$3.99

$

Usually ships in 4-12 days

0

Gravely 58904300

Brake Replacement Kit (Single Side)

Note: (Single Side)

$555.99

$

Usually ships in 4-12 days

0
