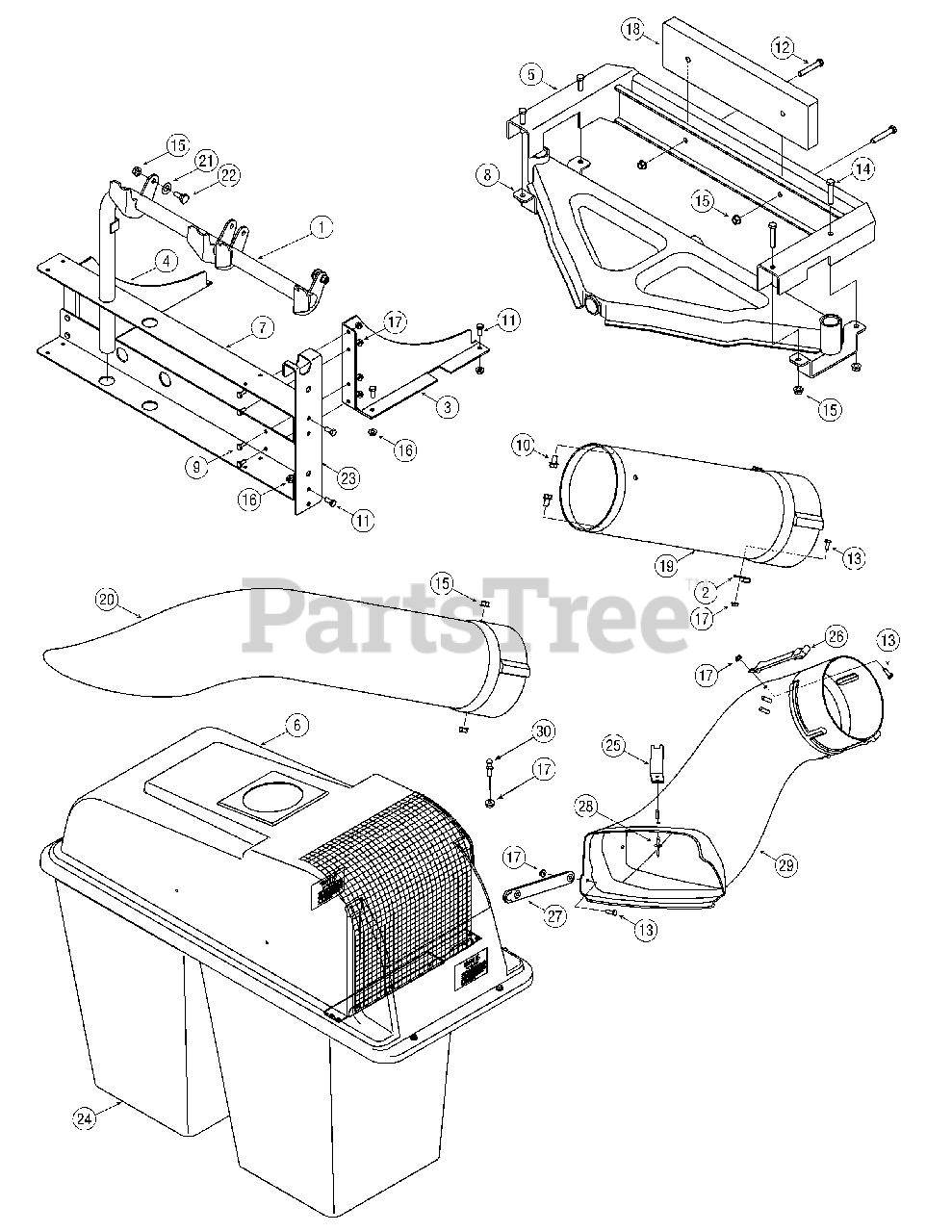

590-302-000 - White Outdoor Twin Bag Grass Collector > Parts Diagrams (2) > Bagger Assembly 1

  • Title
16592

1

Support Tube Assembly

Part# 16592 (Superseded to 16592-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $126.98

Variations

POWDER BLACK (0637)

SUPPORT TUBE ASSEMBLY BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $126.98

16606

2

Retainer Hook

Part# 16606 (Superseded to 96606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.92

603-04198

3

Mounting Assembly RH

Part# 603-04198 (Superseded to 603-04198-0637)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SUPPORT-RH MOUNTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

603-04199

4

Mounting Assembly LH

Part# 603-04199 (Superseded to 603-04199-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $77.77

Variations

POWDER BLACK (0637)

SUPPORT-LH MOUNTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $77.77

603-04201

5

Weight Bar Bracket

Part# 603-04201

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $260.05

Variations

POWDER BLACK (0637)

BRACKET ASSY-WEIGHT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $260.05

664-04017

6

Grasscatcher Cover Assembly

Part# 664-04017

OEM Warranty Repair Part for White Outdoor

Not available

703-05195

7

Hanger Bracket

Part# 703-05195 (Superseded to 703-05195-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $81.38

Variations

POWDER BLACK (0637)

BRACKET-HANGER BLK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $81.38

703-05494

8

Clamp: Weight Bar Bracket

Part# 703-05494

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

CLAMP-WEIGHT BRACKET

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0751

9

Hex Bolt 1/4-20 x .620

Part# 710-0751

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

710-0870

10

Hex Washer Hd. Bolt 3/8-16 x .625

Part# 710-0870

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.03

710-3008

11

Hex Bolt 5/16-18 x .75

Part# 710-3008

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-3011

12

Hex Bolt 3/8-16 x 2.25

Part# 710-3011

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.75

710-3015

13

Hex Bolt 1/4-20 x .75

Part# 710-3015

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.68

710-3144

14

Hex Bolt 3/8-16 x 2.0

Part# 710-3144

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

712-0431

15

Top Lock Flange Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

712-3004A

16

Flange Lock Nut 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.56

712-3027

17

Flange Lock Nut 1/4-20

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.82

01003789

18

Weight Bar

Part# 01003789 (Superseded to 02002426)

OEM Warranty Repair Part for White Outdoor

Not available

731-3334A

19

Chute Extension

Part# 731-3334A

OEM Warranty Repair Part for White Outdoor

Not available

731-3338

20

Chute Tube

Part# 731-3338

OEM Warranty Repair Part for White Outdoor

Not available

736-0253

21

Bell Washer

Part# 736-0253 (Superseded to 936-0253)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.63

738-0380

22

Shoulder Screw

Part# 738-0380 (Superseded to 938-0380)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.39

783-0601

23

Catcher Support Bracket

Part# 783-0601 (Superseded to 783-0601-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.05

Variations

POWDER BLACK (0637)

BRACKET-SUPPORT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.05

24

Grass Bag Assembly

Part#

Not available

16591A

24

Bag Frame Hanger Bracket

Part# 16591A (Superseded to 16591A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $42.66

Variations

POWDER BLACK (0637)

BAG HANGER BRACKET BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $42.66

710-0473

24

Screw, #10-24 x .5

Part# 710-0473

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

712-0272

24

Hex Sems Nut, 10-24

Part# 712-0272

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.63

764-0221

24

Bag

Part# 764-0221 (Superseded to 964-0221)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $50.08

749-0701A

24

Frame Tube for Bag

Part# 749-0701A (Superseded to 749-0701A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $42.44

Variations

POWDER BLACK (0637)

CATCHER BAG FRAME BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 3 to 6 business days

Your price: $42.44

710-0604

24

Self Tapping Screw, 5/16-18 x .625

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

703-05564

25

Deflector Support Bracket

Part# 703-05564

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-DEFLECTOR BLK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

723-0383

26

Retainer Strap

Part# 723-0383 (Superseded to 923-0383)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.16

723-04008A

27

Chute Strap

Part# 723-04008A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.52

728-0180

28

Rivet .187 Dia. #66

Part# 728-0180 (Superseded to 928-0180)

OEM Warranty Repair Part for White Outdoor

Not available

731-04777A

29

Chute Elbow

Part# 731-04777A (Superseded to 731-04777C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $102.71

711-04069

30

Grasscatcher Pin

Part# 711-04069 (Superseded to 911-04069)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.75
